Analog Duplex System
Subject to Export Control, see Cover Page for details.
8-6
RF Modulation Configuration Tile
The RF Modulation Configuration Tile allows the user to select the external modulation source.

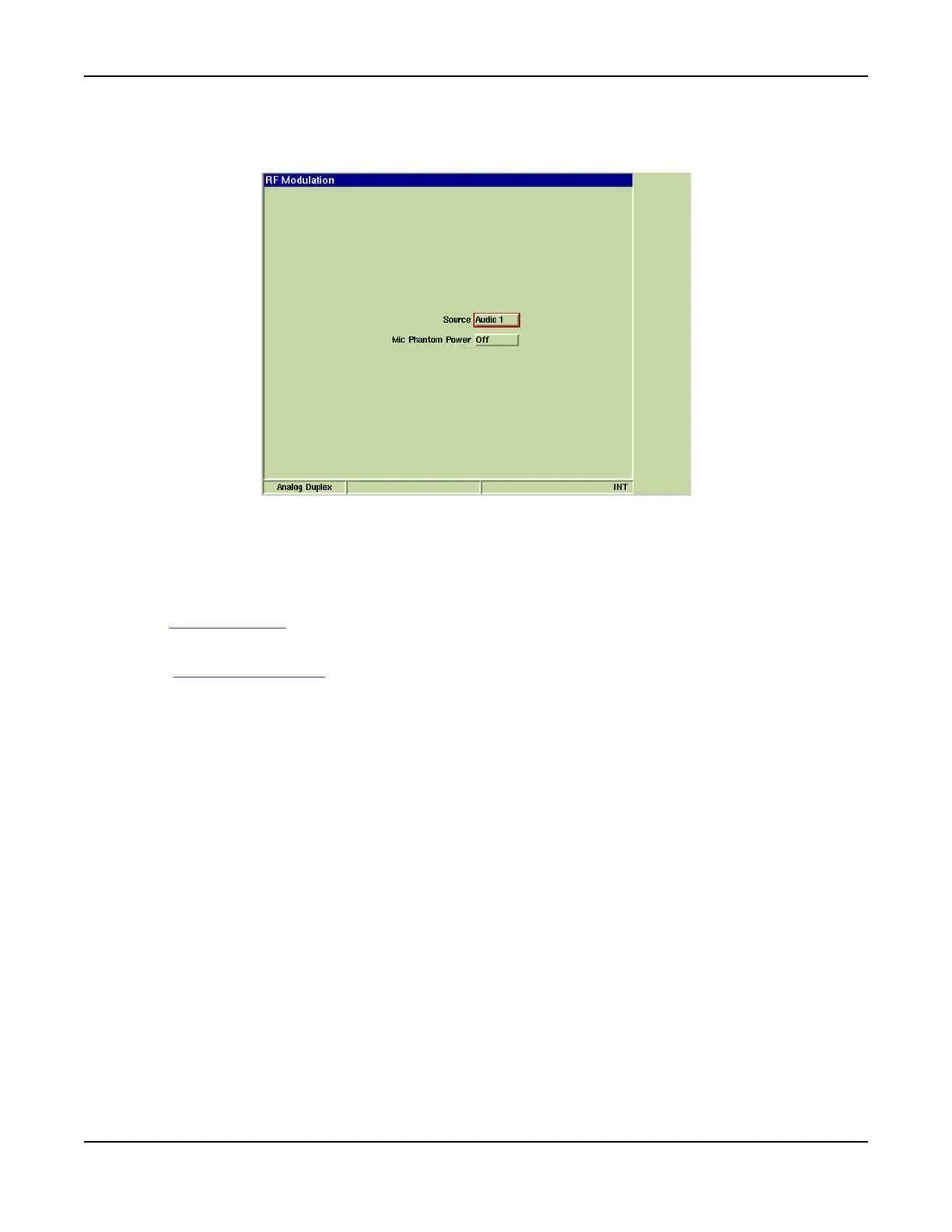

Fig. 8-4 Analog Duplex - Modulation Generator Configuration Tile
Field Definitions
Source
Selects the routing for an external modulation source. A signal applied to the selected
Connector serves as a modulation source for the RF Generator when the Ext button is active on
the Generators Tile.
MIC Phantom Power
The MIC/ACC Connector provides a power source for condenser microphones. This drop-down
menu controls this feature.
