Analog Duplex Test Tiles
Generators Tile
The Generators Tile controls the Test Set’s RF and AF Signal Generators. The RF Signal Generator
output source is defined by the user as the T/R Connector
or GEN (Generator) Connector. The AF
Signal Generators, AF 1, AF2 and AF3, are combined for output at the FCTN GEN/DEMOD
Connector. The RF output can be modulated by the sum of the Modulators, Mod 1 and Mod 2, plus
the External input (Audio In or Microphone).

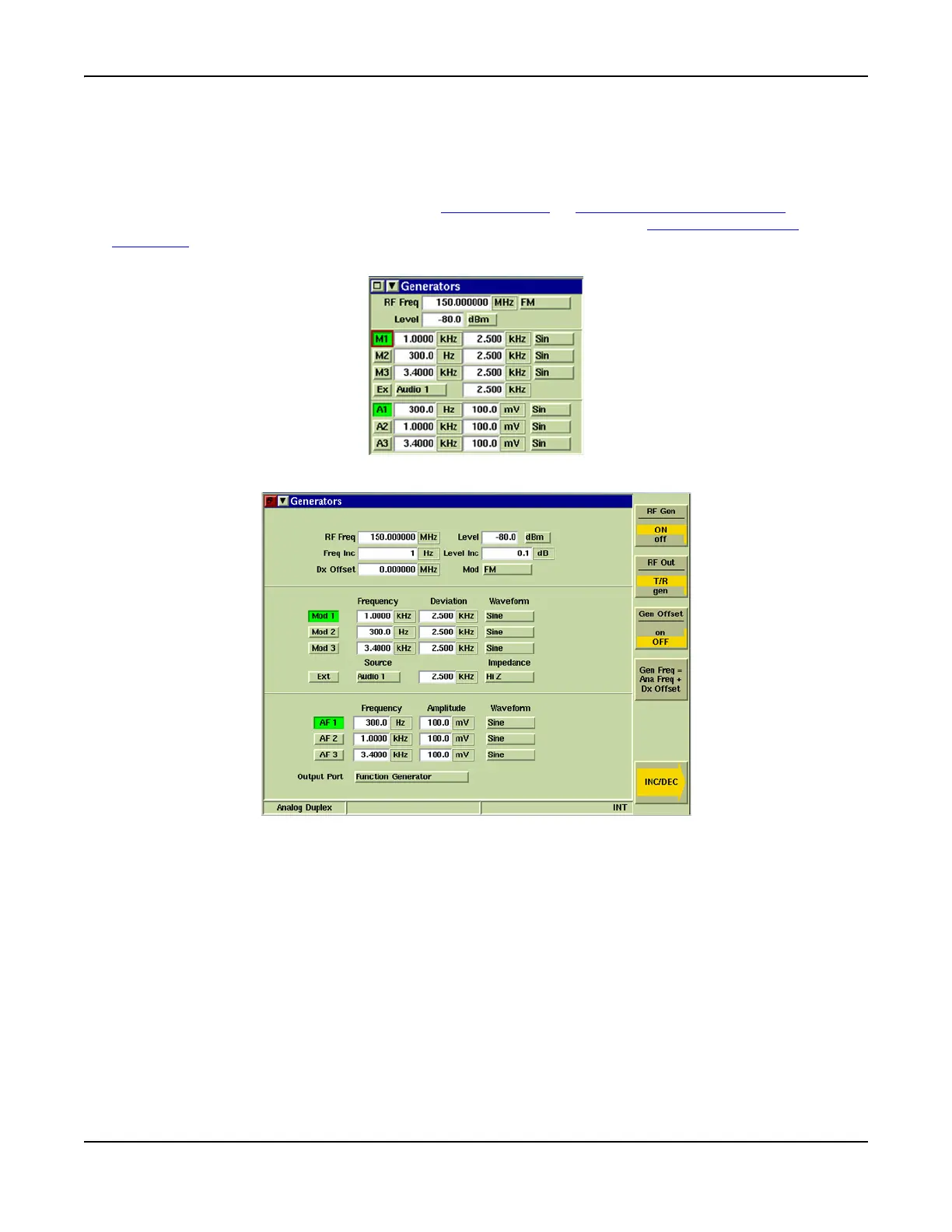

Fig. 8-17 Generators Tile - Minimized View
Fig. 8-18 Generators Tile - Maximized View
