Analog Duplex System
Subject to Export Control, see Cover Page for details.
8-3
Analog Duplex Tile Layout
Analog Duplex System Tiles can be displayed in a Maximized or Minimized view. Specific sections of
the Tile are used to display certain Measurement Tiles.

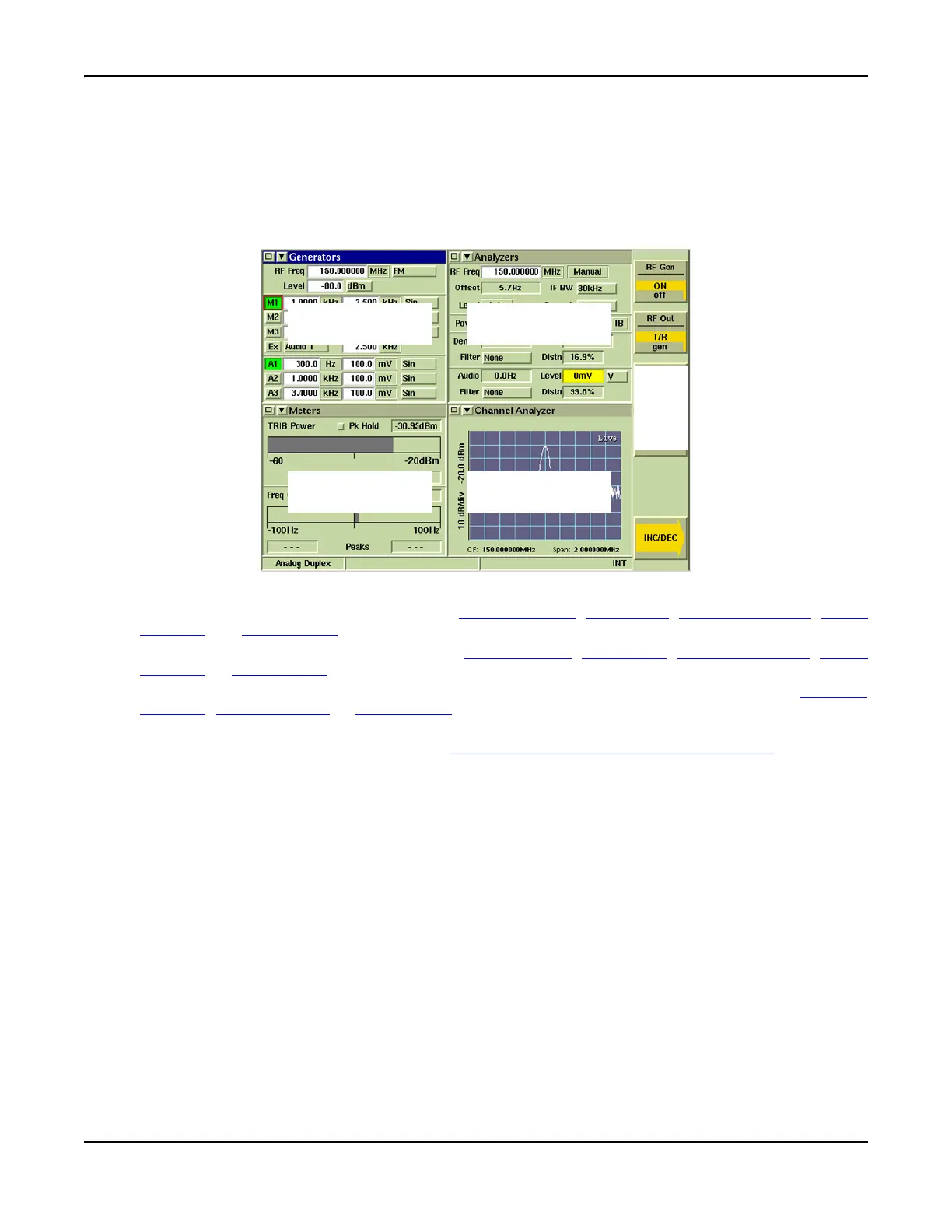

Fig. 8-2 shows the 3900 operating in Analog Duplex TEST (Mode) with display Tiles minimized. Focus is
on the Tile in Section A, the Generators Tile. The Soft Keys displayed on the right are relevant to the
Generators Tile.
Fig. 8-2 Analog Duplex System - TEST Mode - Minimized Tiles
● Section A can be configured to display the Generators Tile
, Meters Tile, Channel Analyzer, Audio
Analyzer, or Oscilloscope Tiles.
● Section B can be configured to display the Analyzers Tile
, Meters Tile, Channel Analyzer, Audio
Analyzer or Oscilloscope Tiles.
● Section C and D can be configured to display various measurement tiles as well as the Channel
Analyzer, Audio Analyzer or Oscilloscope Tiles. Measurement tile selection depends on the
options installed in the Test Set.
● All sections can be configured to display Site Monitoring (Sensitivity Search) Option.
● The Information Bar located at the bottom of the Tile displays the operating System title and
other information.
● A specific Tile can be displayed in more than one section if required. For example, the Meters
Tile may be selected for Section C and D so that all of the meters are visible in minimized view (3
meters in each section).
Section A
Section C
Section B
Section D
Soft
Key
Area
