Analog Duplex System
Subject to Export Control, see Cover Page for details.
8-7
AF Generator Configuration Tile
The AF Generator Tile allows the user to select the output connector for the AF Generator.

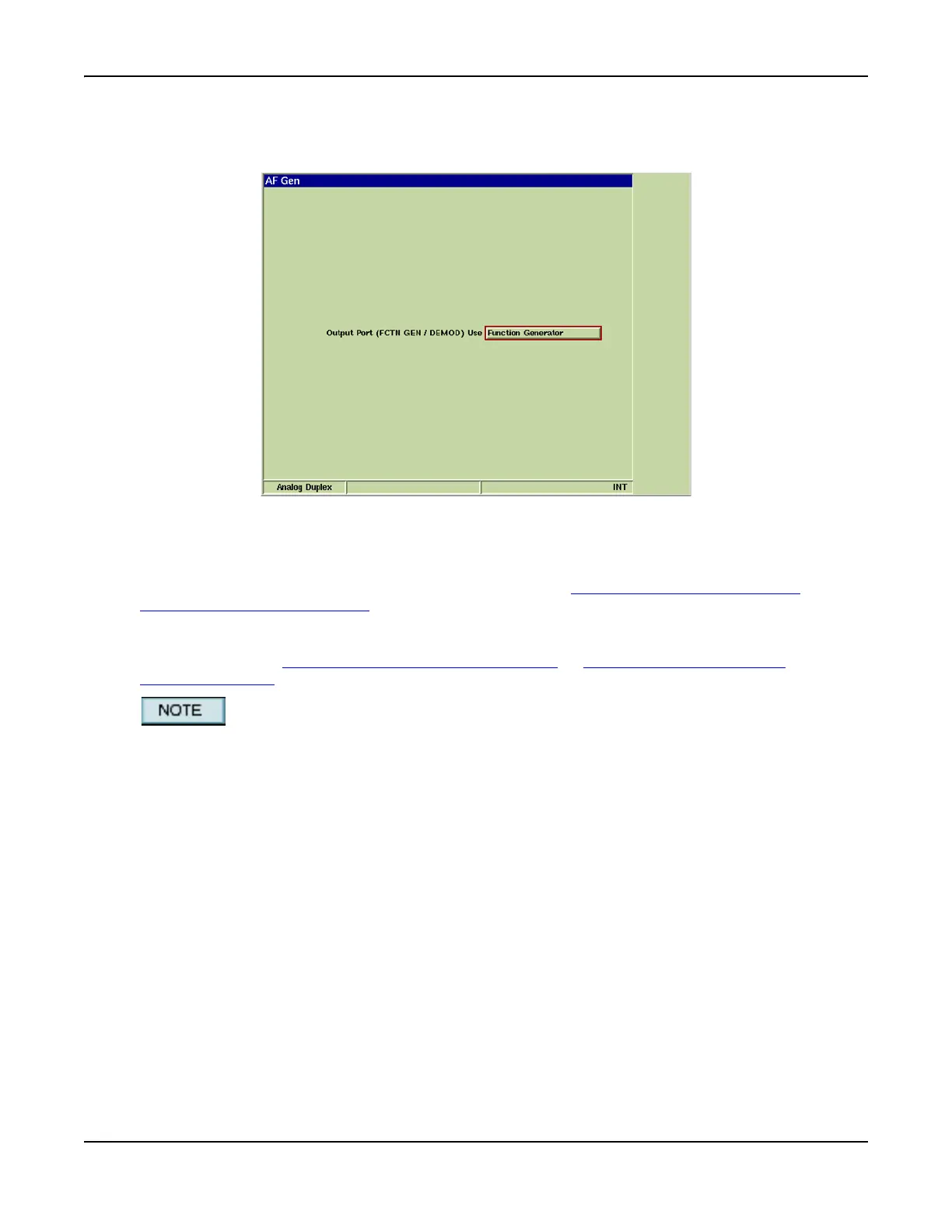

Fig. 8-5 Analog Duplex - AF Generator Configuration Tile
Field Definition
Output Port (FCTN GEN/DEMOD) Use
The output signal from the AF Generator is routed to the FCTN GEN/DEMOD Connector. The
FCTN GEN/DEMOD Connector
is also used for Demodulated Signal output. The Output Port is
selected from this drop-down menu.
When a filtered output option is selected, the filter type is selected from the Psoph filter drop-
down menu on the AF Measurements Configuration Tile
or Modulation Measurements
Configuration Tile.
Changing configuration to Demod Out while still connected to the MIC/AF Input of a radio
under test may create a feedback loop.
