Analog Duplex System
Subject to Export Control, see Cover Page for details.
8-46
Spurious Measurements Field
Results area displays frequency at which non-harmonic frequency spikes are detected and the
power level at that frequency (refer to Fig. 8-42). These fields are blank when no spurious
measurements are detected above the Spurious Threshold level defined on the Harmonics and
Spurious Configuration Tile.

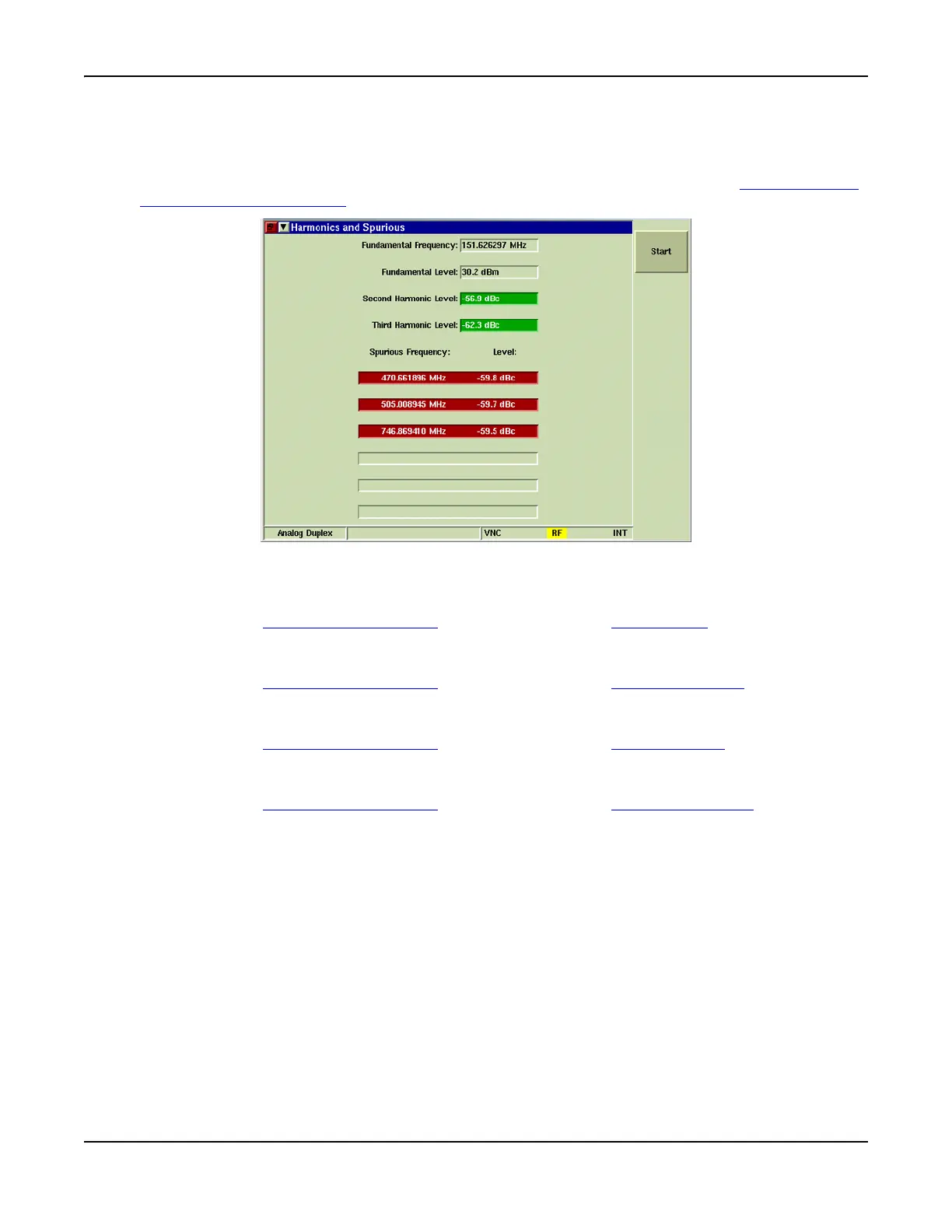

Fig. 8-42 Harmonics and Spurious Results
Oscilloscope
Refer to Chapter 7, Radio Test Instruments for information on the Oscilloscope.
Channel Analyzer
Refer to Chapter 7, Radio Test Instruments for information on the Channel Analyzer.
Audio Analyzer
Refer to Chapter 7, Radio Test Instruments for information on the Audio Analyzer.
Spectrum Analyzer
Refer to Chapter 7, Radio Test Instruments for information on the Spectrum Analyzer.
