Test Set Operation
Subject to Export Control, see Cover Page for details.
3-58
GEN/TR
This Two Port Duplex arrangement provides the highest level of RF Gen output and accepts the
highest signal level at the RF Analyzer input. This setup is useful for testing Base Stations that
use separate Rx and Tx antenna systems.

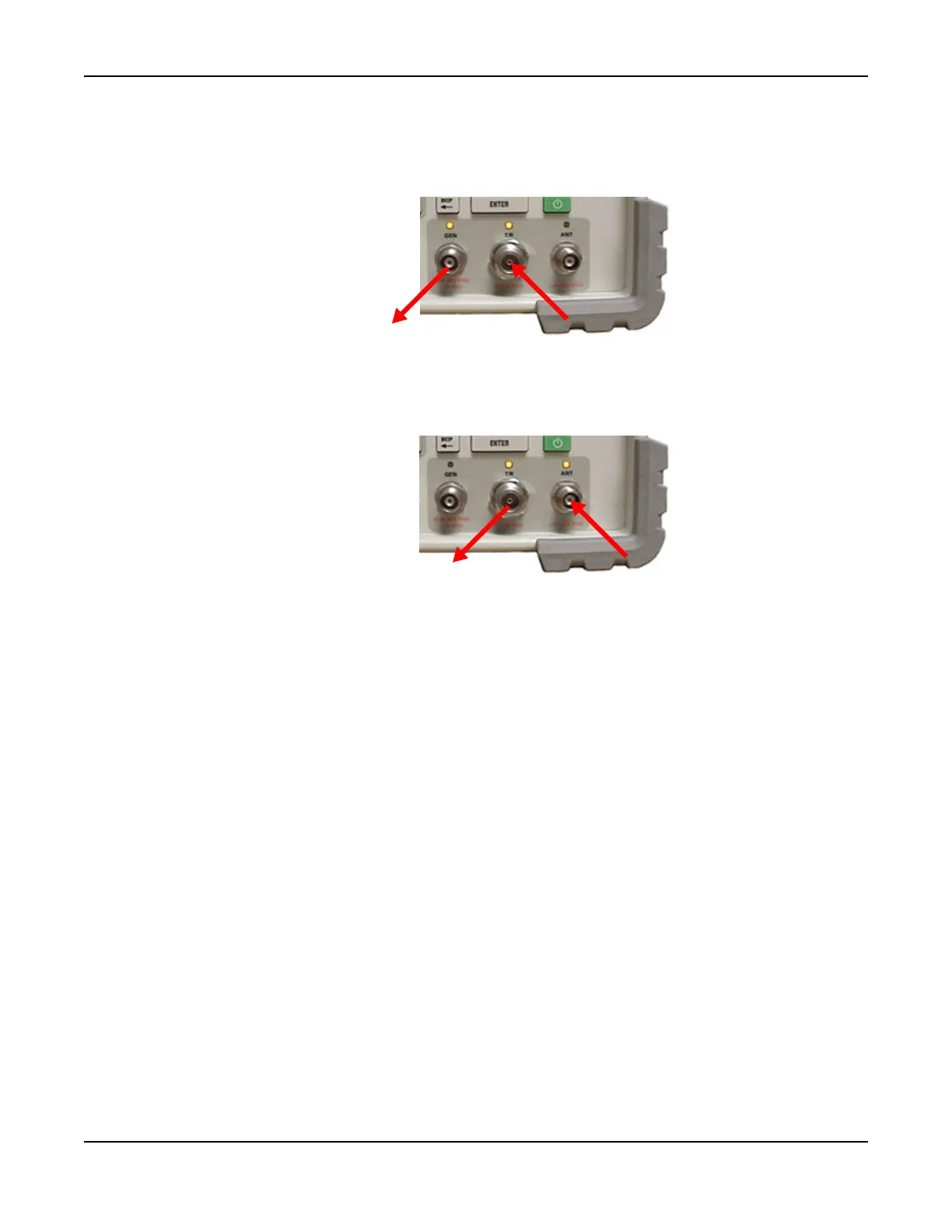

Fig. 3-60 GEN/TR Two Port Duplex Test Setup
TR/ANT
This Two Port Duplex arrangement provides the lowest level of RF Gen output and the most
sensitive RF Analyzer input.
Fig. 3-61 TR/ANT Two Port Duplex Test Setup
RF Out = GEN
RF In = T/R
RF Out = T/R
RF In = ANT
