1100 Series Nano Pump Service Manual 255
Control Module Screens for the Nano Pump 6

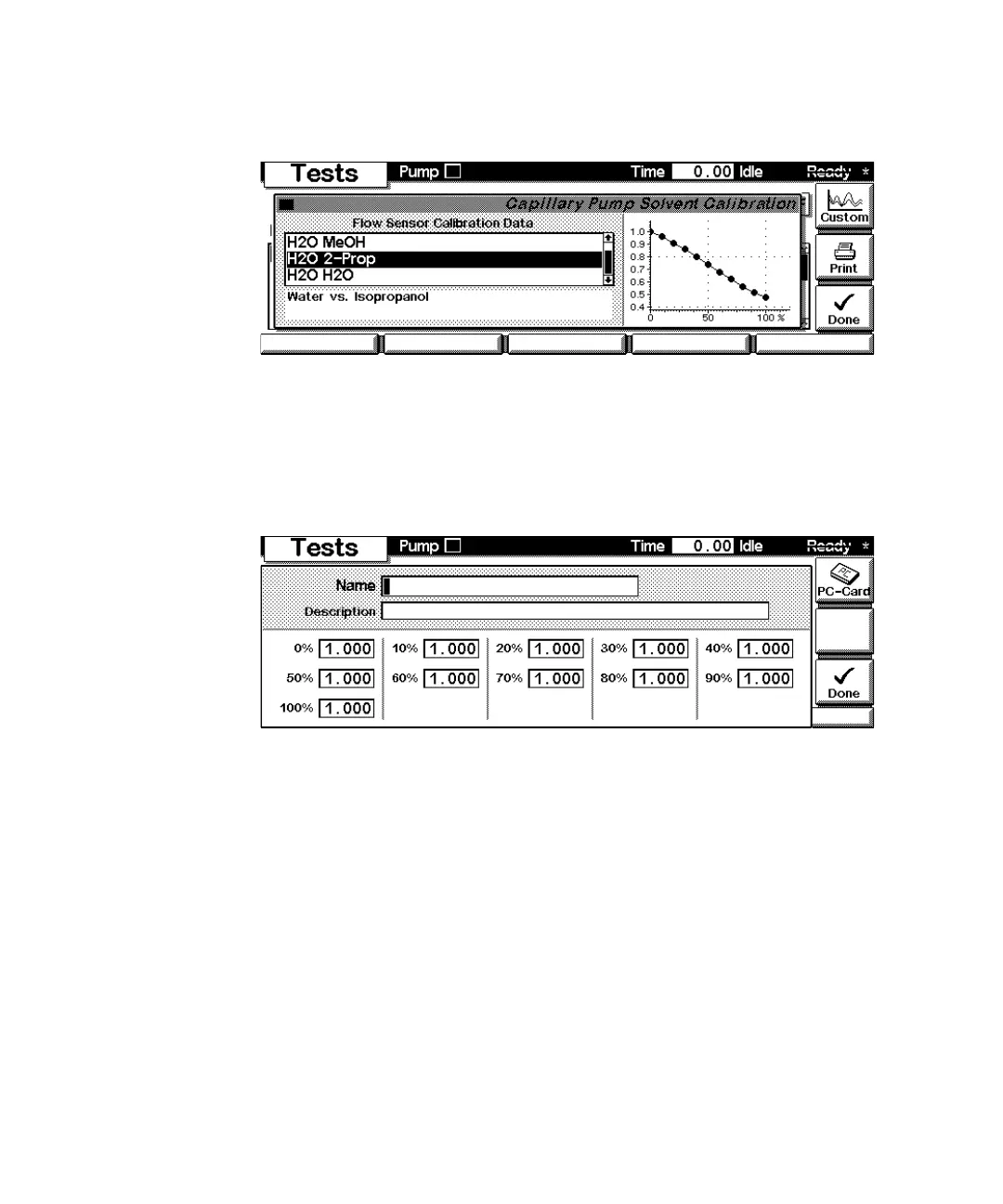

Press Enter once you have selected/highlighted a calibration curve to edit the
individual data points of this curve. Editing the name of the curve and
acknowledging the changes with F6 (Done) saves the new data curve with its
new name. It is possible to store one individually created calibration curve
with each method. Load/Save a calibration curve from/to the PCMCIA-Card by
pressing F8 (PC-Card).
Leak Test Press F2 (Leak Test) on the Test screen to perform a leak test. Several steps
like purging the system, setting up Isopropanol as solvent on the channel that
is supposed to be tested and blocking the purge valve outlet with a blank nut
have to be performed before operating the leak test. For details use the i-key to
achieve context sensitive help, follow the instructions on the screen and refer
to "Running the Leak Test" on page 74. For evaluating the leak test refer to
"Evaluating the Results of the Leak Test" on page 77.
