1220 Infinity II LC System User Manual 39

Installation

Installing the Hardware

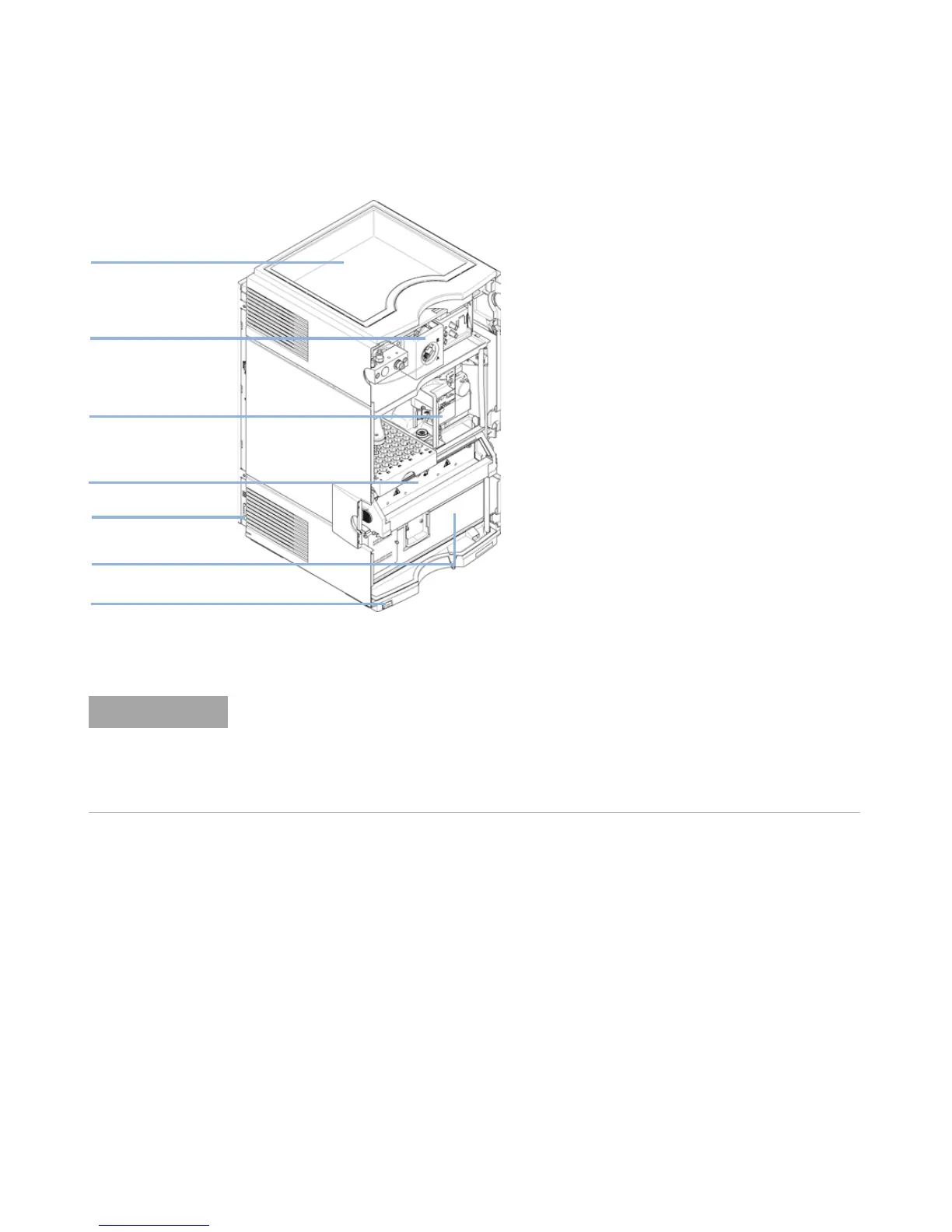

Figure 3 System Overview 1220 Infinity II LC

5 Place the Solvent Bottle filled with 0.5 L HPLC grade water in the Solvent

Tray.

6ROYHQWWUD\

*UDGLHQWSXPSZLWK

GHJDVVHURULVRFUDWLF

SXPSQRWVKRZQ

6ROYHQWVHOHFWLRQYDOYH

RSWLRQDOQRWVKRZQ

$XWRVDPSOHURUPDQXDO

LQMHFWRUQRWVKRZQ

9DULDEOH:DYHOHQJWK

'HWHFWRU9:'

,QWHUIDFHFRQQHFWRUV

/$1&$1SRZHU

3RZHUSXVKEXWWRQ

&ROXPQRYHQRSWLRQDO

NOTE

Additional options or upgrade kits should be installed prior to all solvent path installations.

Configuring your Agilent 1220 Infinity II LC Module Information can be found in the

“Configuration of the Instrument After an Upgrade Installation” on page 48.

For further information about how to install the options and upgrade kits refer to the user

manual.

Agilent Technologies 1220 Infinity II LC User Manual
