Covers

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 11

External covers, continued

S/N 6205464

CO-EZ-11AA

MICRO ENET 2CH

Ethernet Address:

00-00-00-00-00-00

0000-000

LAN

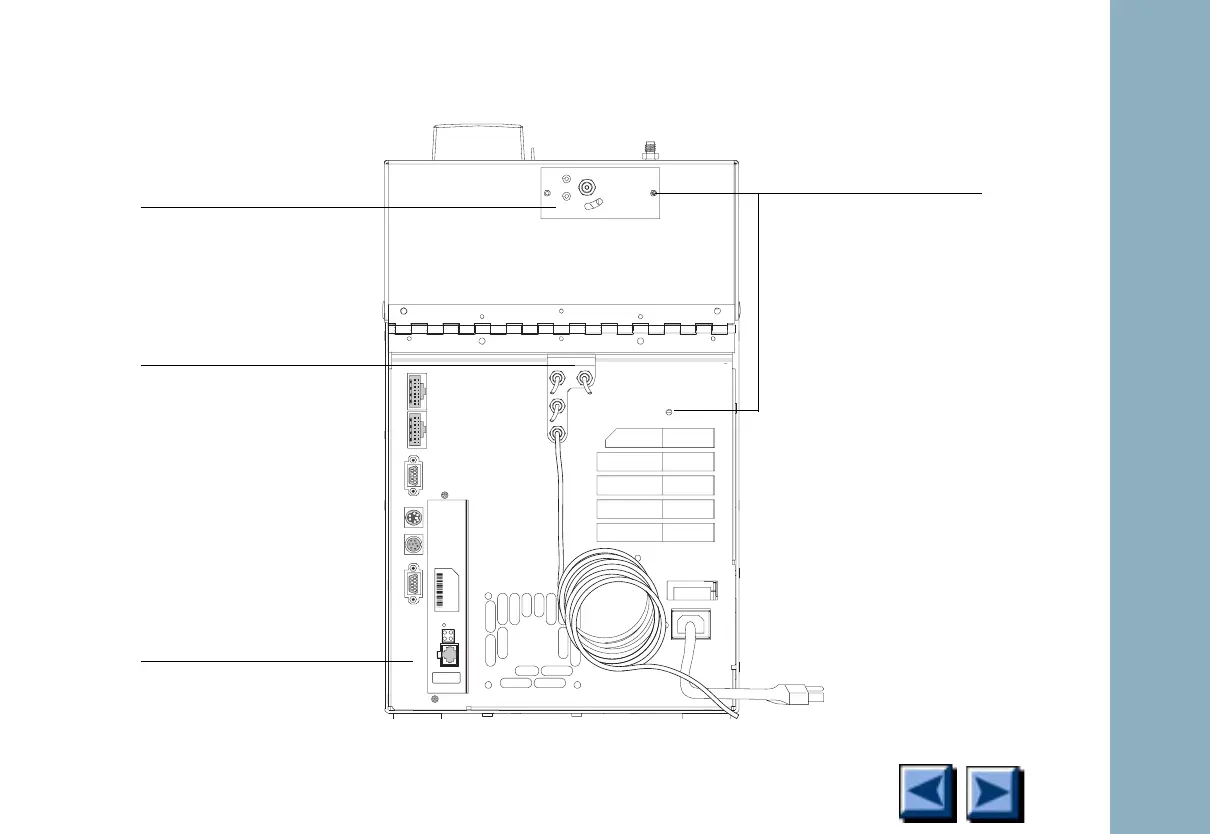

Back panel

G2630–00030

Supply tubing assembly

G2630–60650

3-way valve assembly mount

G2630–80640

Screws, M4 × 12 mm

0515–2496
