Inlets and valves

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 129

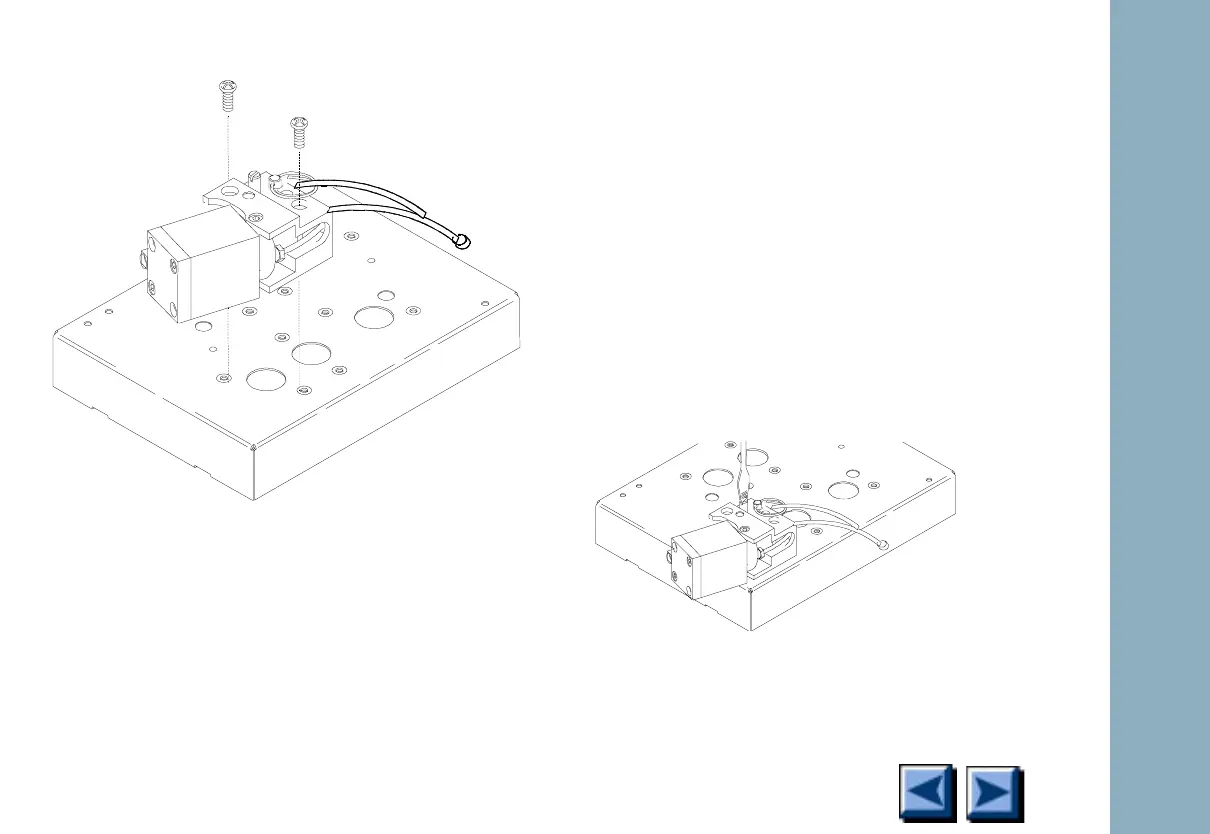

Figure 1-49. Removing the mounted

actuator on the valve box

3. Disengage the actuator drive shaft coupler

with the valve.

a. Tighten the hex nut on the actuator near

the drive shaft.

b. Slide the shaft up.

c. Insert a flat bladed screw driver in the

slot on the top of the actuator and turn

the shaft back and forth until you feel

the coupler disengage the valve.

d. Loosen the set screw.

Figure 1-50. Disengaging the actuator drive

shaft with the valve
