Agilent Technologies 6850 Series User Manual

Detectors
6850
6850
Released: April 2004 6850 Series Gas Chromatograph Service Procedures 146

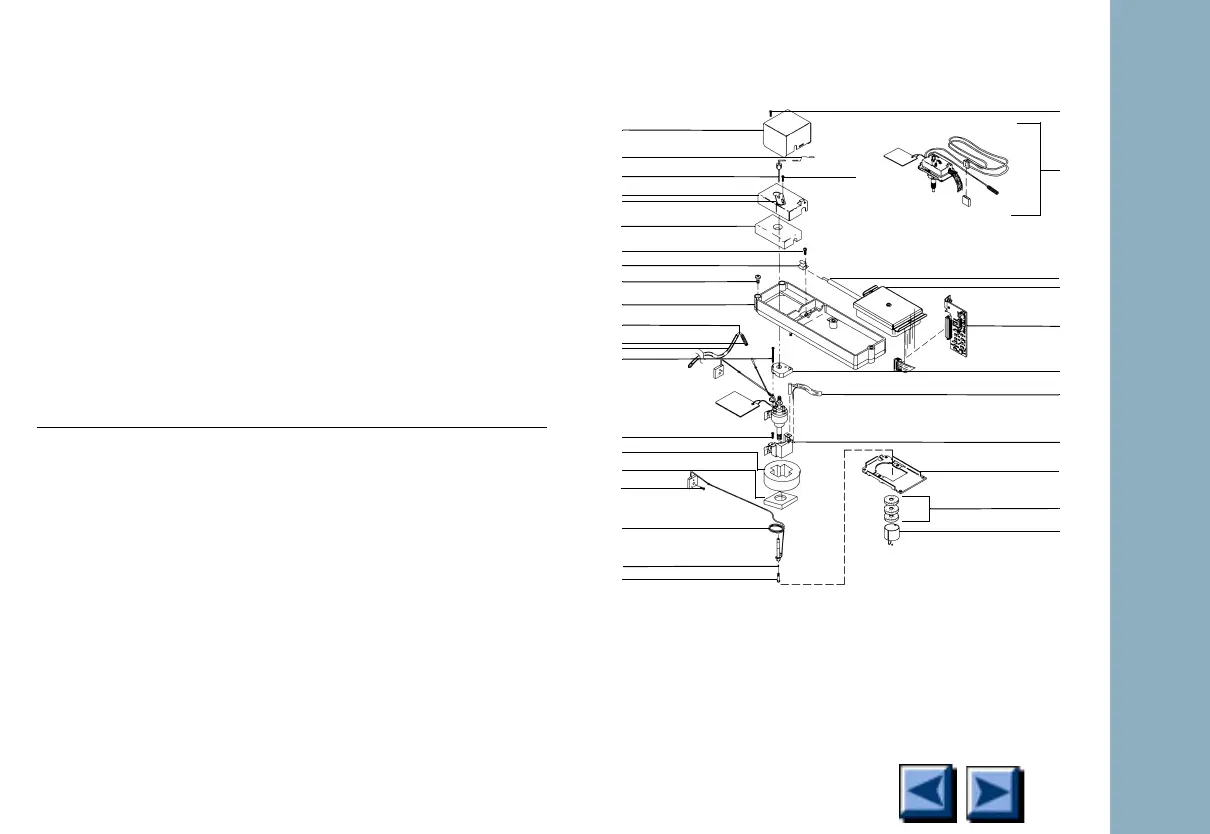

Figure 1-2. Exploded diagram of the Micro-
cell Electron Capture Detector
23. Heater/Sensor assembly G1533-60625 1
24. Upper heated block
G1533-20525 1
25. Lower heated block 19233-20515 1
26. ecd mounting plate G1533-00050 1
27. Nut warmer assembly
19234-60720 1
28. Nut warmer insulation 19234-60715 1
29. Nut warmer cup assembly 19234-60700 1
30. Tubing tygon (30 inch)
0890-0934 1
31. Vent elbow (if present) 19303-20590 1
32. Tubing adapter (if present) 5020-8231 1
7
19
20
21
22
24
23
25
12
27
28
26
2
4
30
31
29
11
13
18
5
7
8
19
16
17
3
6
1
15
14
9
10
