Oven

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 214

b. Feed the cable through the hole into the

instrument and let it drop.

c. Disconnect the motor power cable from

the wiring harness in the back of the

instrument.

6. Remove the oven duct and the flap motor

assembly from the oven.

a. Remove the two lower 7-mm nuts on the

oven duct.

b. Remove the 7-mm top nut and remove

the oven duct and flap motor assembly.

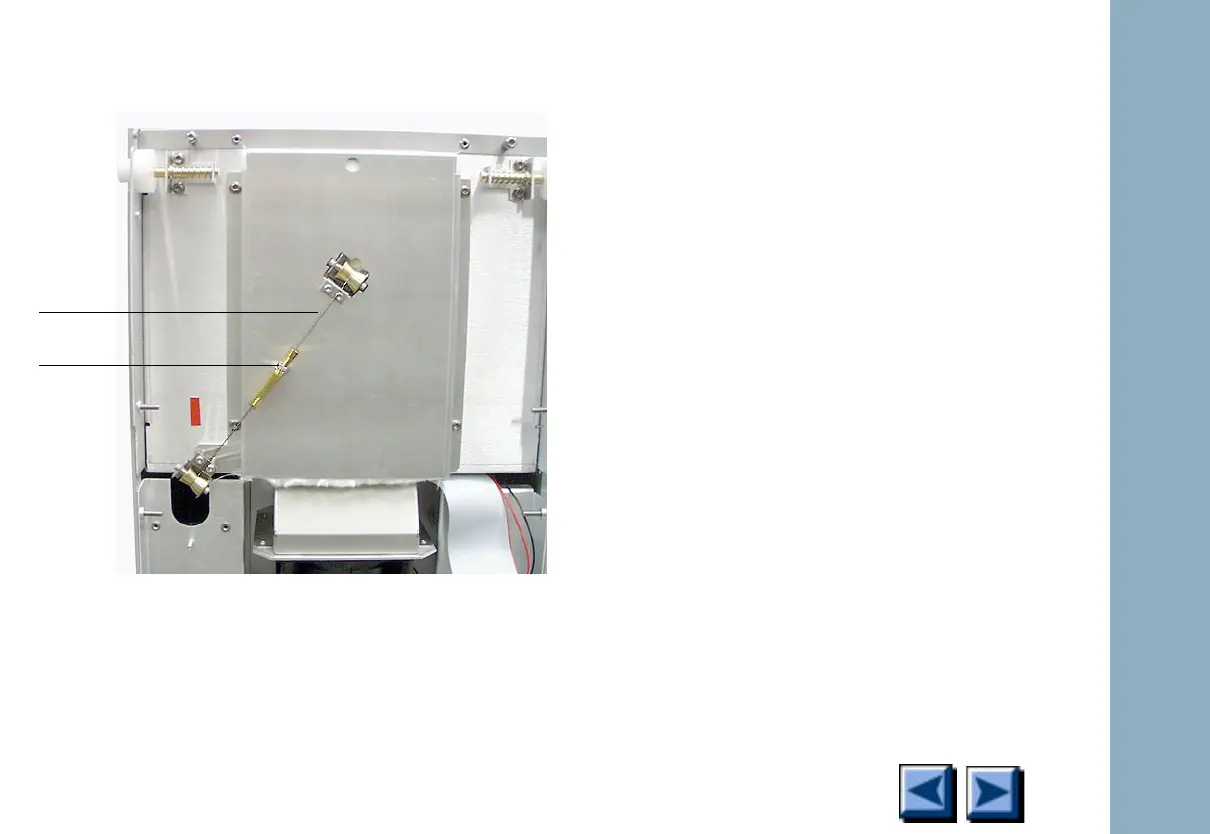

Flap cable

Jam nut
