Released: April 2004 6850 Series Gas Chromatograph Service Procedures 222

6. Use a 1/8-inch allen wrench to loosen the fan

setscrew and lift the fan out of the instru-

ment.

7. Disconnect the oven fan motor cable from

the main board (at P17).

8. Using a 7-mm nut driver, remove the ground

cable.

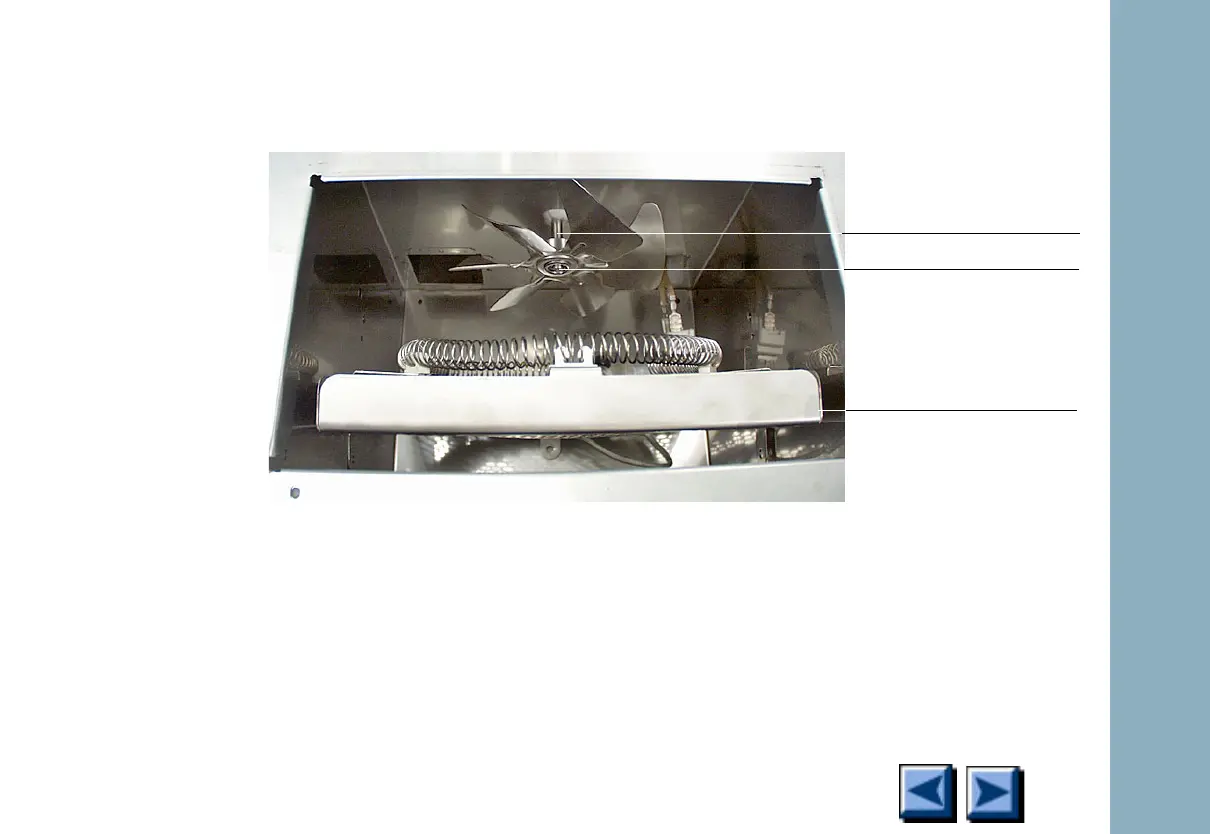

Fan

Fan set screw

Heater shroud
