Troubleshooting

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 287

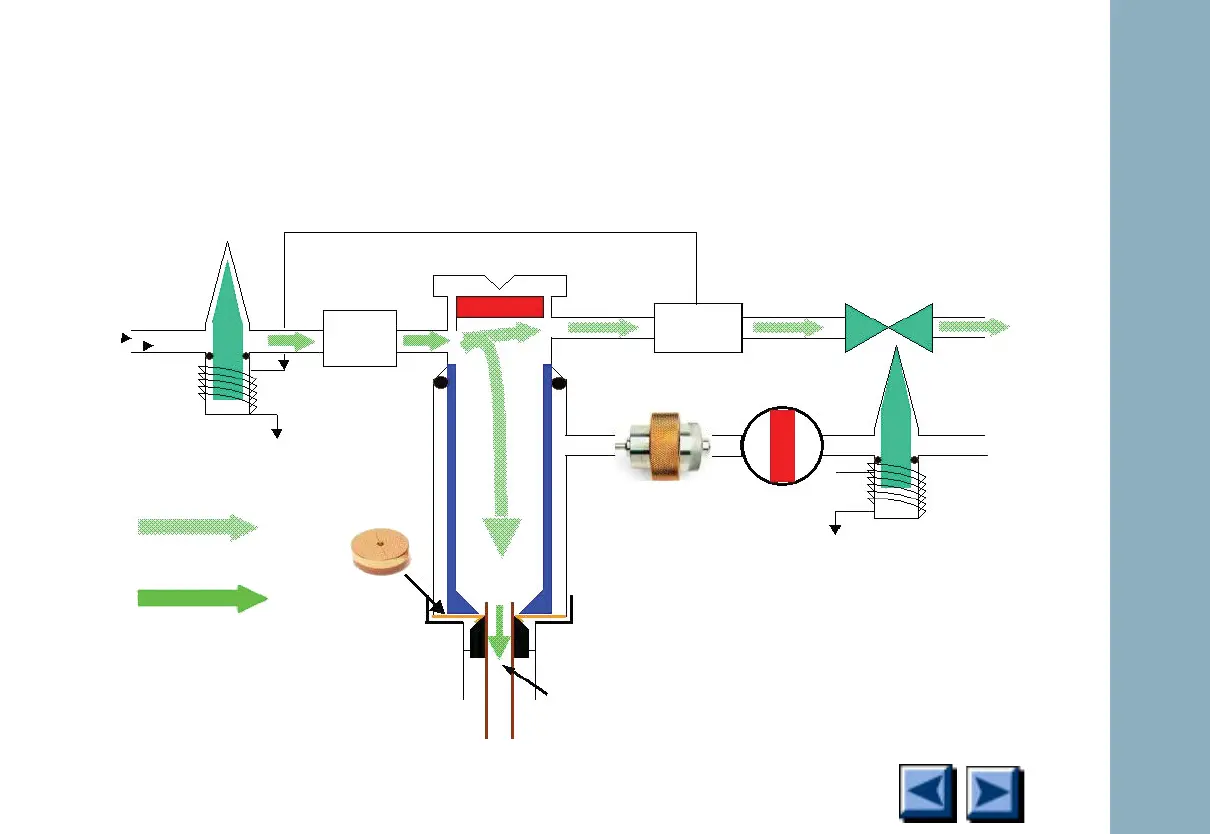

5. Force the instrument into "Prep Run" by hit-

ting the Prep Run key twice. The inlet pneu-

matic configuration will change to that

depicted below:

Carrier supply

total flow in

6 mL/min

Flow sensor

100 psi

input pressure

Total flow

control loop

Proportional

valve 1

Reduced flow

Full flow -

split flow path

20 psi

Pressure sensor

Septum purge

regulator

fixed @ 3mL/min

Split vent trap

Purge valve

closed

Proportional

valve 2

Column flow: 2 mL/min

Gold seal

Split vent

0 mL/min

Forward pressure control loop
