Troubleshooting

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 289

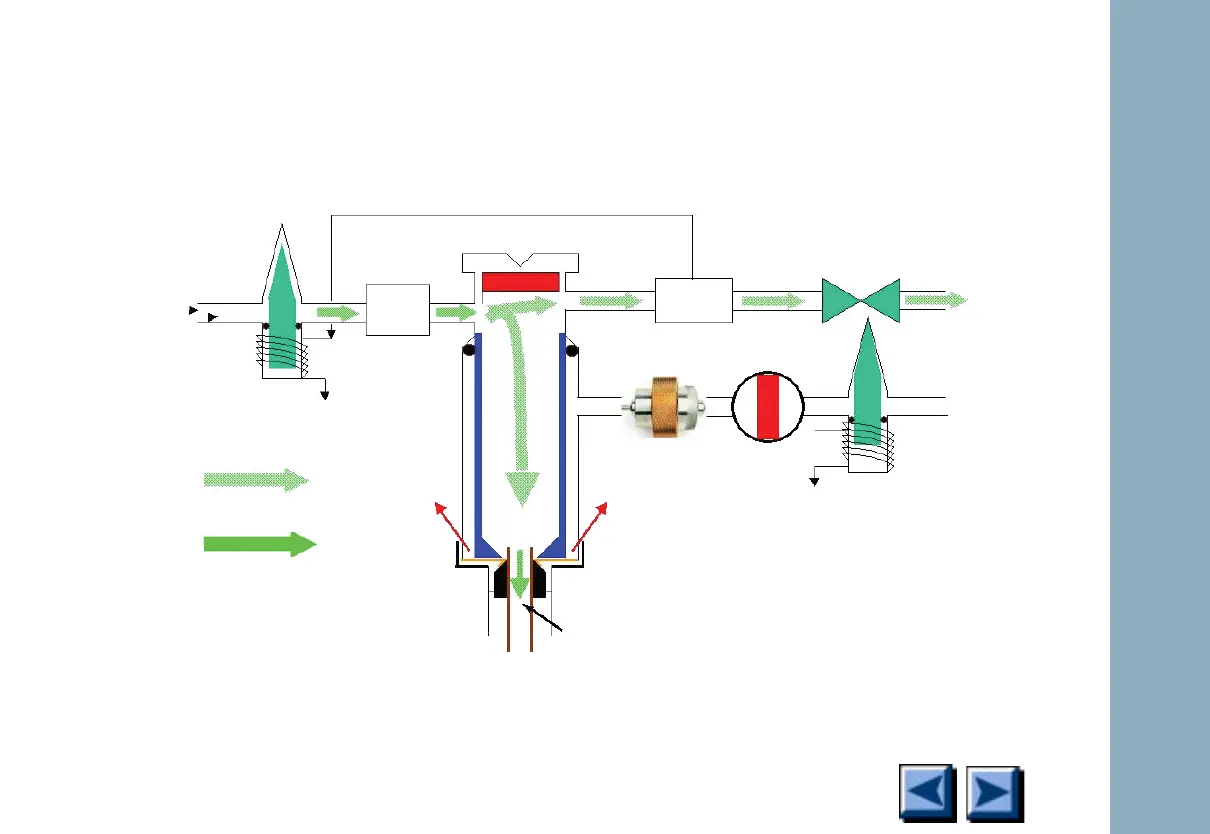

The diagram below shows a 7-mL leak at the

inlet gold seal. The total flow reads 12 mL/min

which is the sum of column + septum purge and

leak

Carrier supply

total flow in

Flow sensor

100 psi

input pressure

Total flow

control loop

Proportional

valve 1

Reduced flow

Full flow -

split flow path

20 psi

Pressure sensor

Septum purge

regulator

fixed @ 3mL/min

Split vent trap

Purge valve

closed

Proportional

valve 2

Split vent

0 mL/min

Forward pressure control loop

mL/min

Column flow: 2mL/min

7mL/min

Gold seal leak
