Troubleshooting

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 315

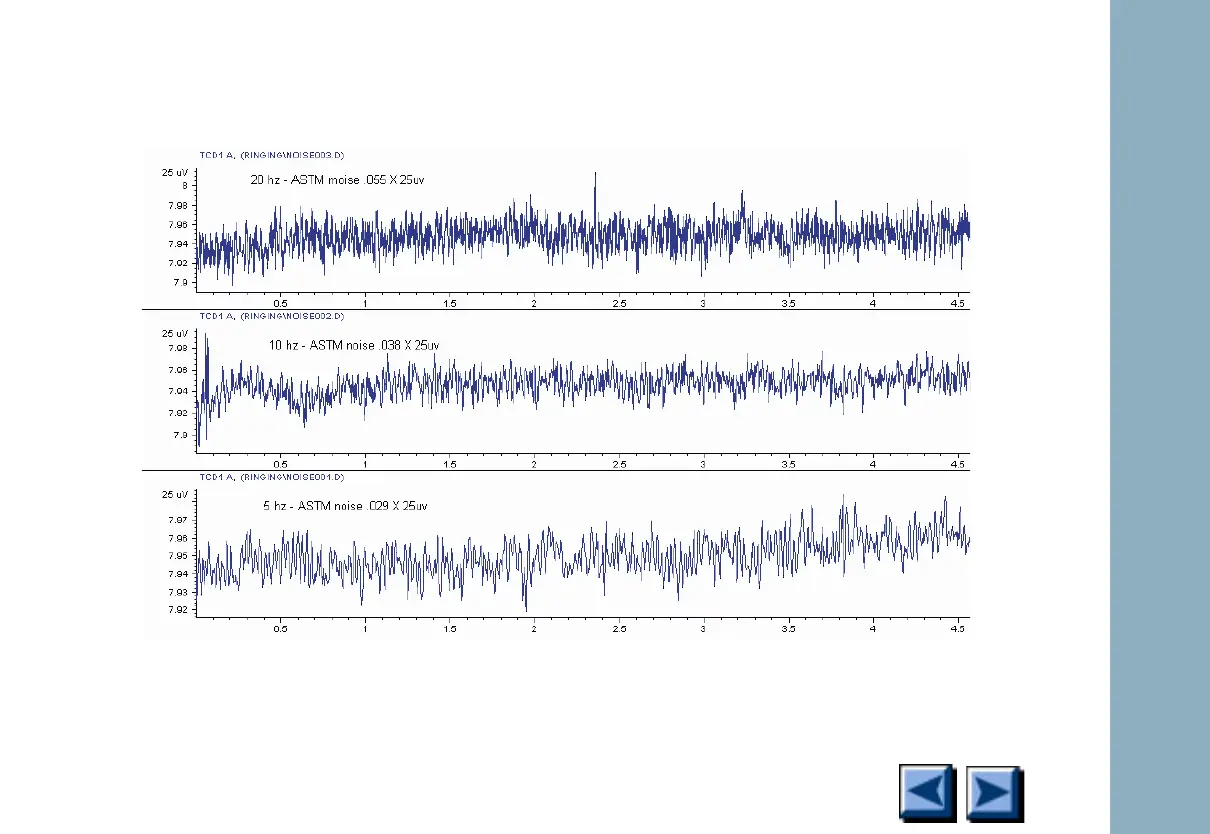

Comparison of TCD noise acquired at 20, 10,

and 5 Hz

The specification for TCD noise is < .057 display units (25µV)
