Inlets and valves

6850

Released: April 2004 6850 Series Gas Chromatograph Service Procedures 62

5. Remove the gang block fitting from the inlet

flow module.

If a valve box is installed, you will need to

remove its top cover to access the gang

fitting.

6. Remove the split vent trap bracket.

7. Disassemble the split vent trap.

8. Remove the inlet insert weldment and

attached parts from the instrument.

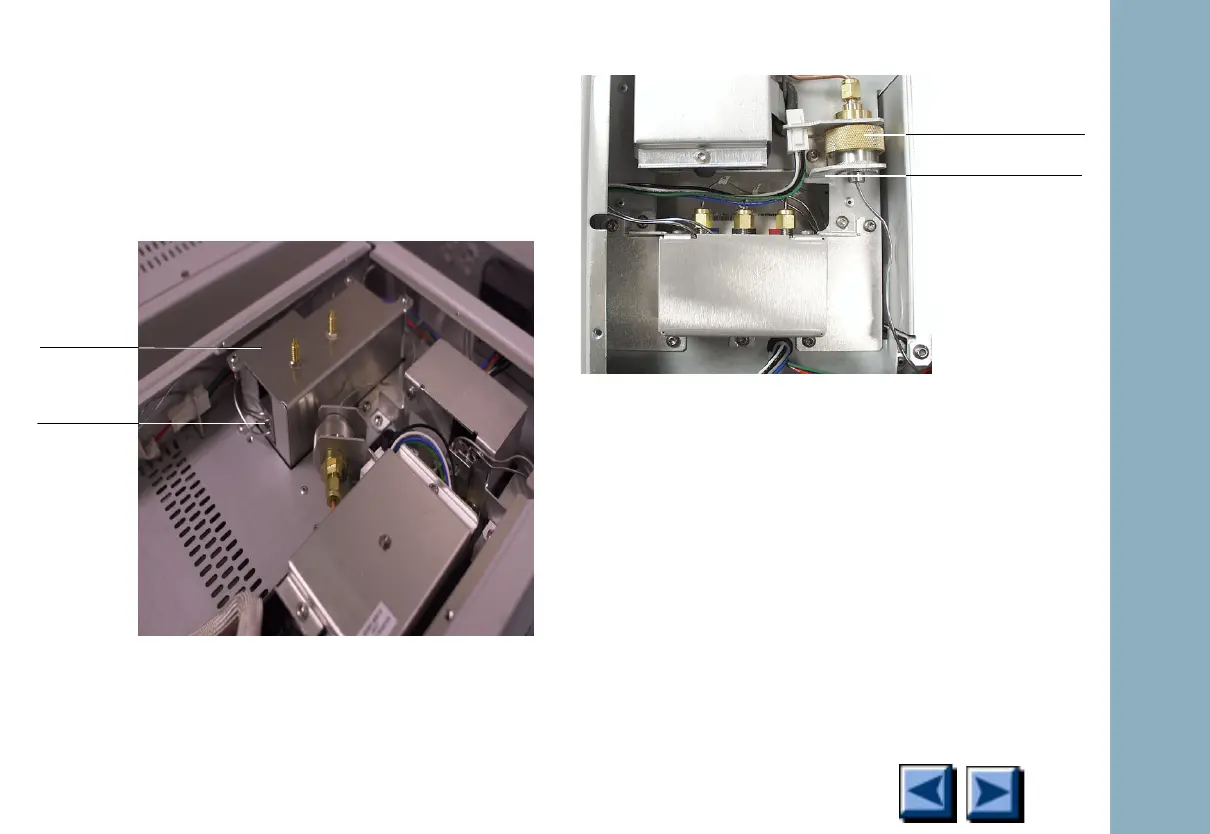

Inlet flow

Gang block

module

fitting

Split vent trap

bracket
