Removing and Replacing Covers

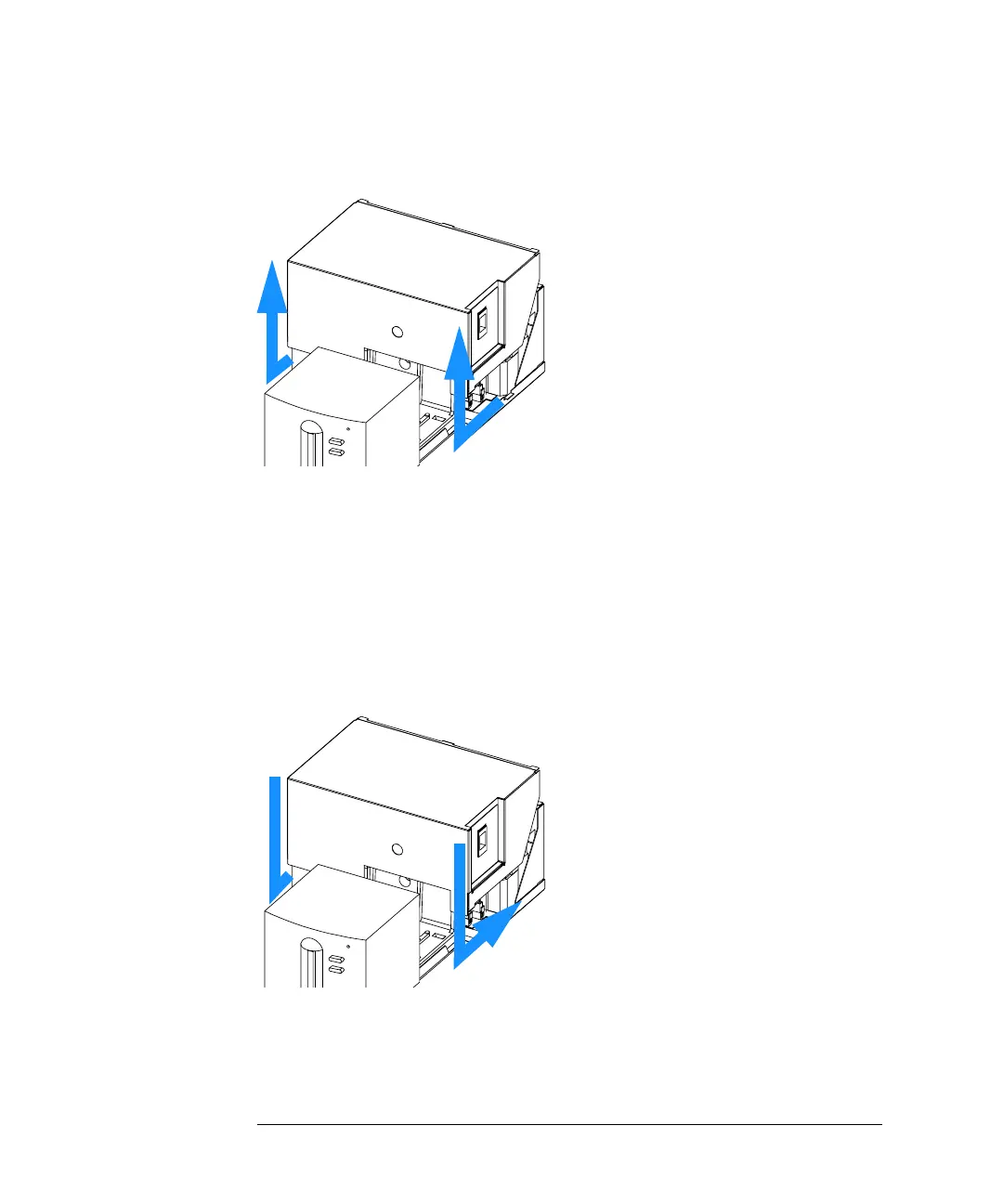

Figure 30 Removing the Sheet Metal Rear Cover
5 Slide the sheet metal rear cover towards the front of the instrument and lift it
up.
Replacing the Rear Cover
1 Slide in metal rear cover so that it locates on the bottom first. Slide it in further
so that it locates on top.
Figure 31 Replacing the Metal Rear Cover
2 Tighten the screw near the top of the cover using a Pozidriv screwdriver.
3 Replace the sample pan and cuvette holder in the sample compartment.
