134
Maintenance and Repair
Exchanging the Main Power Supply

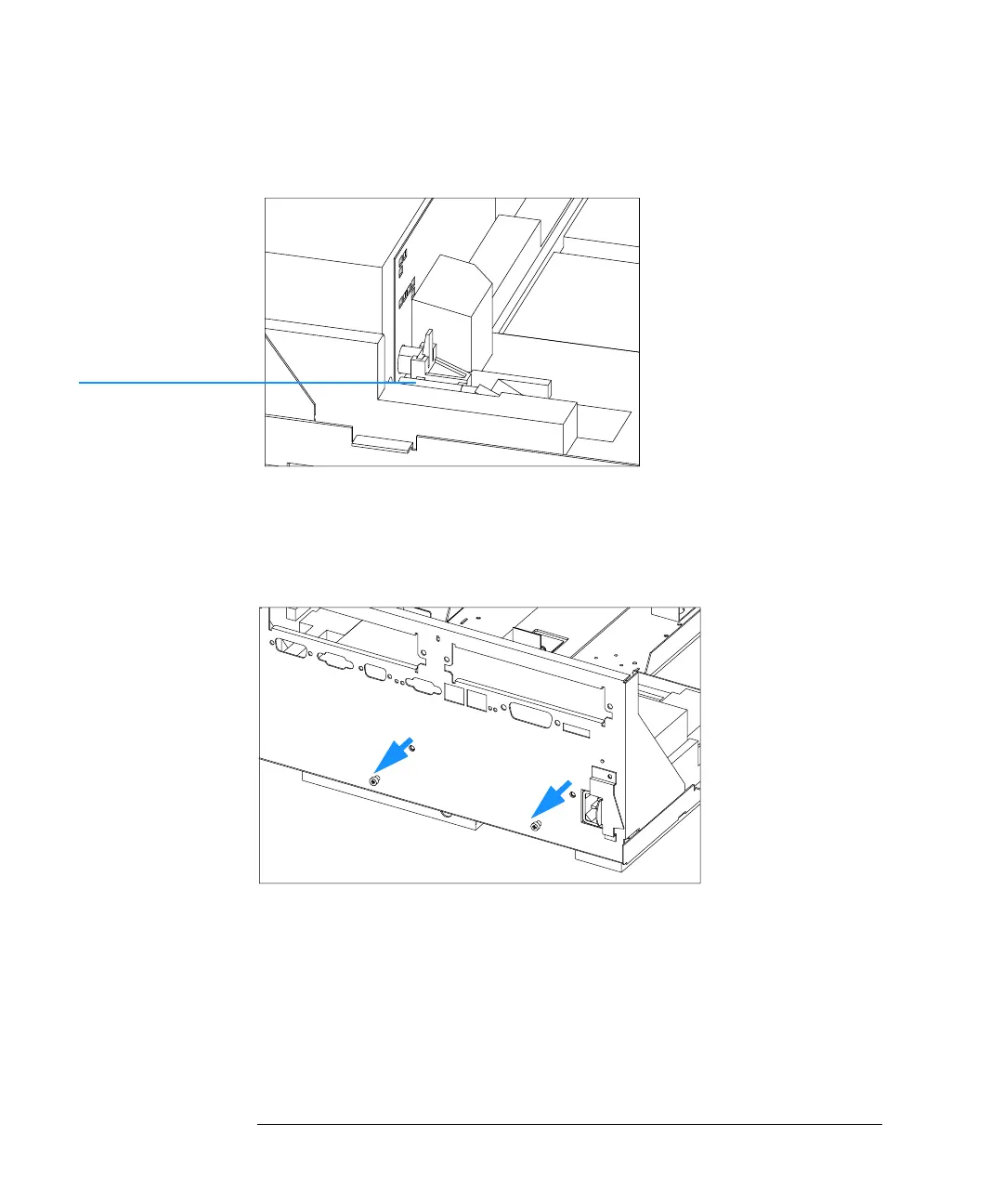

Figure 47 Removing the Light Pipe
6 Open the two screws from the rear panel of the instrument that hold the main
power supply in place and slide the main power supply out.
Figure 48 Removing the Main Power Supply Screws
Replacing the Main Power Supply
1 Place the main power supply on the bottom foam in the rear part of the
instrument and fix the two screws from the rear panel of the instrument that
hold the main power supply in place, see figure above.
2 Attach the power button to the light pipe and slide the light pipe with the
power button into the hole of the bottom foam part that the power button
comes out of the hole at the base of the instrument.
Light pipe
