20 ChemStation Workflow
3 Data Analysis
Data Analysis
Data Analysis
Once the data have been acquired, they can be analyzed in ChemStation
Data Analysis view. When selecting the Data tab of the ChemStation
Explorer, you can load all the runs of a sequence or all single runs in a
specific folder by double- clicking the corresponding symbol. The
corresponding data set is then available in the Navigation Table.

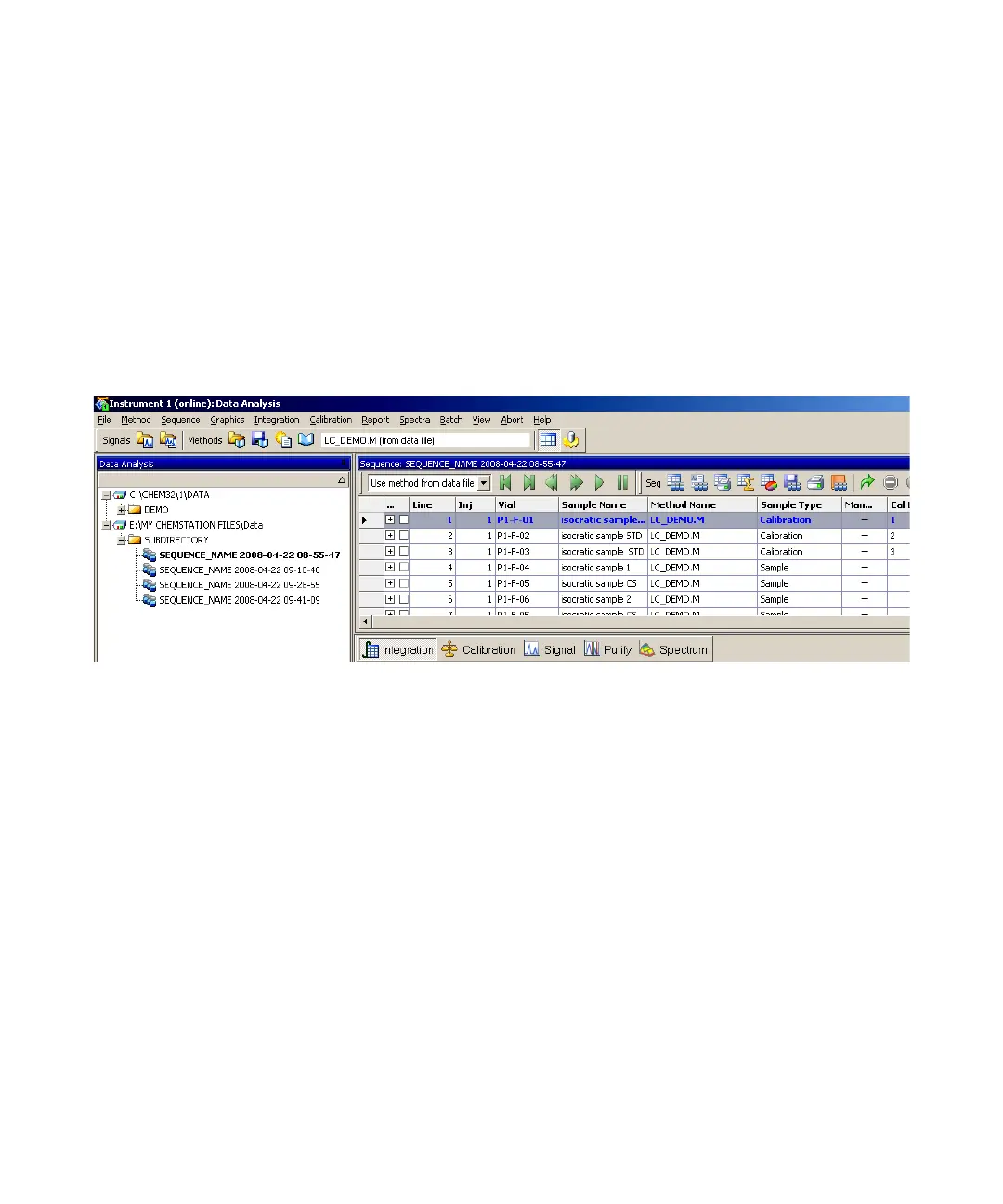

Figure 6 Loading a Sequence from the ChemStation Explorer into Navigation Table
The main body of the navigation table consists of a list of all runs of the
set. Instead of loading a run via the File > Load Signal menu, a run can now
be loaded into ChemStation memory by double- clicking the relevant line
in the navigation table. Additionally, a right- click on a run offers several
options, e.g. to load or overlay specific signals from the file, to export the
data, or to view the acquisition method parameters.
Once the run is loaded, you can review it, i.e. adjust data analysis
parameters, integrate the signals and finally print a report. In this case
you analyze the run as a single run without taking the sequence context
into account or without using the features of the sequence table. This type
of data analysis is called Data Review. The Navigation Table provides the
tool set shown in Figure 7 on page 21, which makes data review more
convenient.
