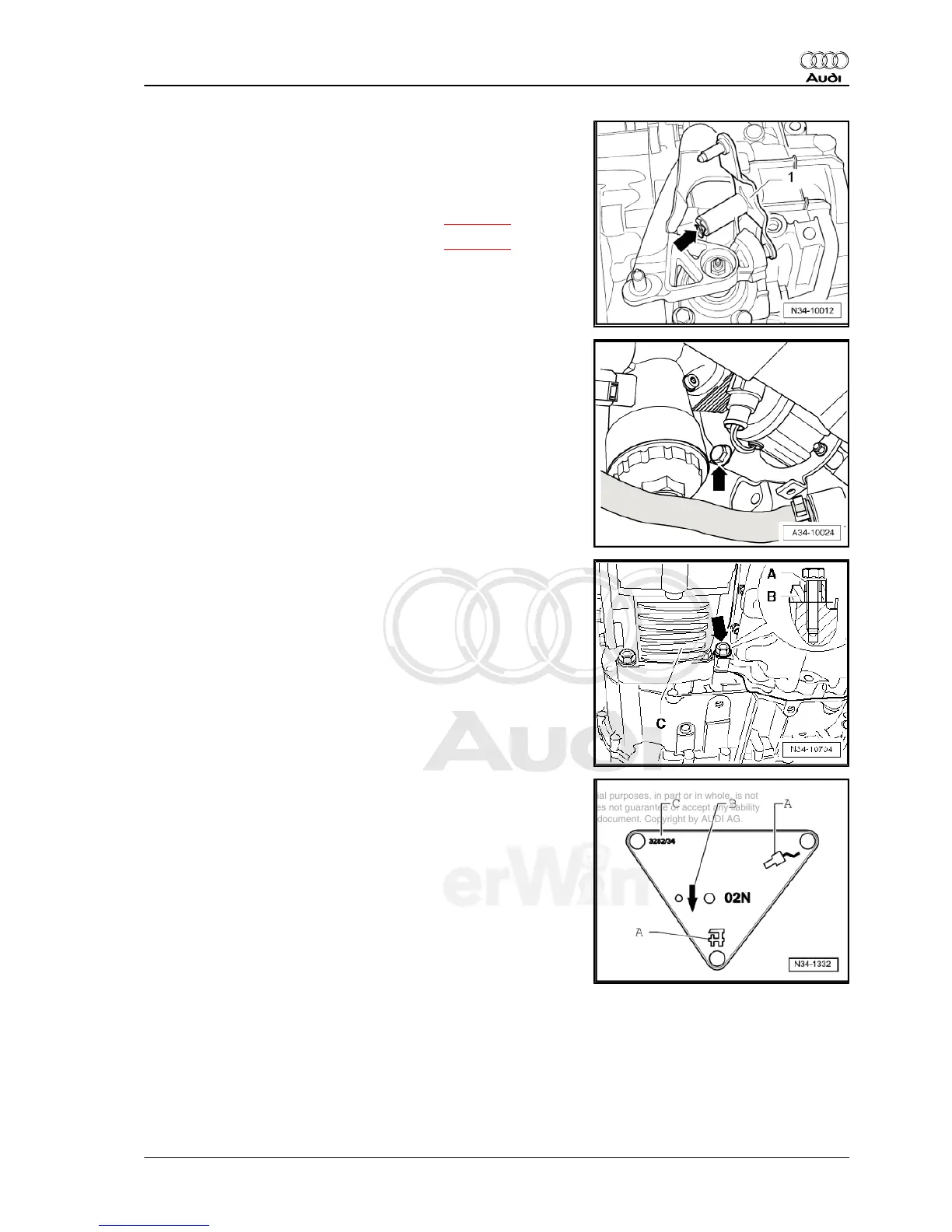

Metal selector relay lever -1-:
– Remove lock washer -arrow- and remove selector relay lever
-1-.
Plastic selector relay lever -1-
– Remove the selector relay lever with catch ⇒ page 68
– Remove the selector relay lever with catch ⇒ page 69
All Vehicles
– Remove engine/transmission connecting bolt -arrow- (engine
side).
– Remove engine/transmission connecting bolt -arrow- near
bevel box -C-.
Make sure securing clip -A- for bolt -arrow- in engine oil pan -B-
is installed.
Transmission support -3282- is equipped with -3282/33- to re‐
move transmission “02Q”.
– Place -3282- in -V.A.G 1383 A- .
– Align arms of transmission support according to holes in ad‐
justment plate .
– Install support elements -A- onto adjustment plate as shown.
– Install -3282/29- in place of attachment -C-
– Place -V.A.G 1383 A- under the vehicle with the arrow symbol
-B- on the adjustment plate pointing in the direction of travel.
– Align adjustment plate and transmission parallel to one an‐
other.
– Screw -3282/29- into hole for mounting bolt of pendulum sup‐
port on transmission.
Audi TT 2007 ➤
Manual Transmission - Edition 10.2009
4. Removal and Installation 105
