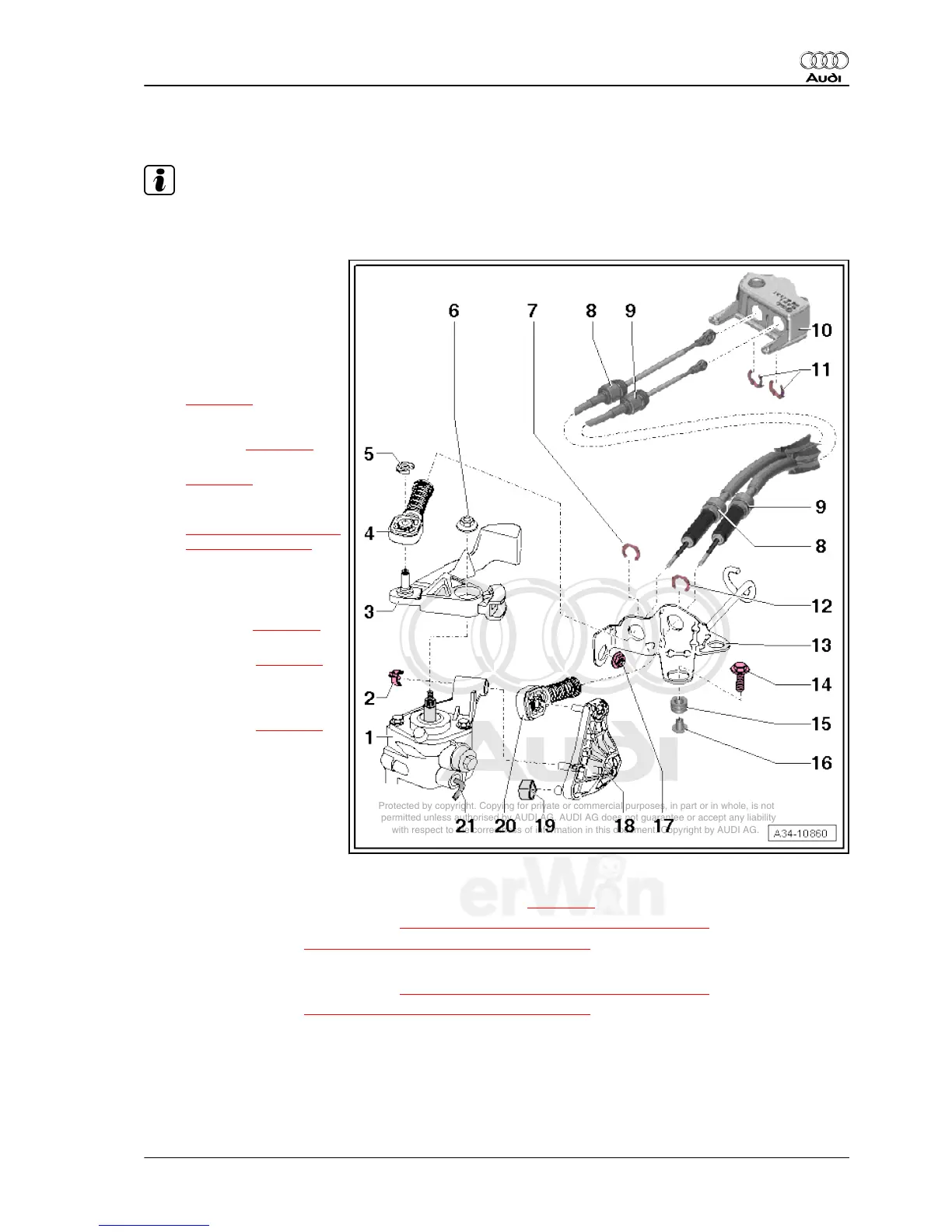

2.7 Shift Cable and Selector Cable from Model Year 2008 Assembly Overview
Note
Grease bearing areas and slide surfaces with grease -G 000 450 02- .
1 - Transmission
2 - Clip
❑ Not installed on all ver‐
sions
❑ For selector relay lever
from 8/2008
❑ Remove and secure
⇒ page 69
3 - Transmission Shift Lever
❑ Inserting ⇒ page 66
❑ Installation location
⇒ page 67
❑ Adjust shift mechanism
after installation, refer to
⇒ “2.8 Shift Mechanism,
Adjusting”, page 69
4 - Control Cable Retainer
❑ For shift cable to trans‐
mission shift lever
❑ Allocation ⇒ page 66
❑ Disconnect from the
shift cable ⇒ page 67
5 - Retaining Washer
❑ Replace
❑ Removing ⇒ page 67
6 - Nut
❑ Replace
❑ 23 Nm
❑ Self-locking
7 - Retaining Clip
❑ Replace
8 - Shift Cable
❑ Remove from the transmission shift lever and attach ⇒ page 67
❑ Removing and installing, refer to ⇒ “4.3 Shift Cable and Selector Cable”, page 94
❑ Adjusting, refer to ⇒ “2.8 Shift Mechanism, Adjusting”, page 69
9 - Selector Cable
❑ Removing and installing, refer to ⇒ “4.3 Shift Cable and Selector Cable”, page 94
❑ Adjusting, refer to ⇒ “2.8 Shift Mechanism, Adjusting”, page 69
10 - Shift Housing
11 - Circlips
❑ Replace
12 - Retaining Clip
❑ Replace
