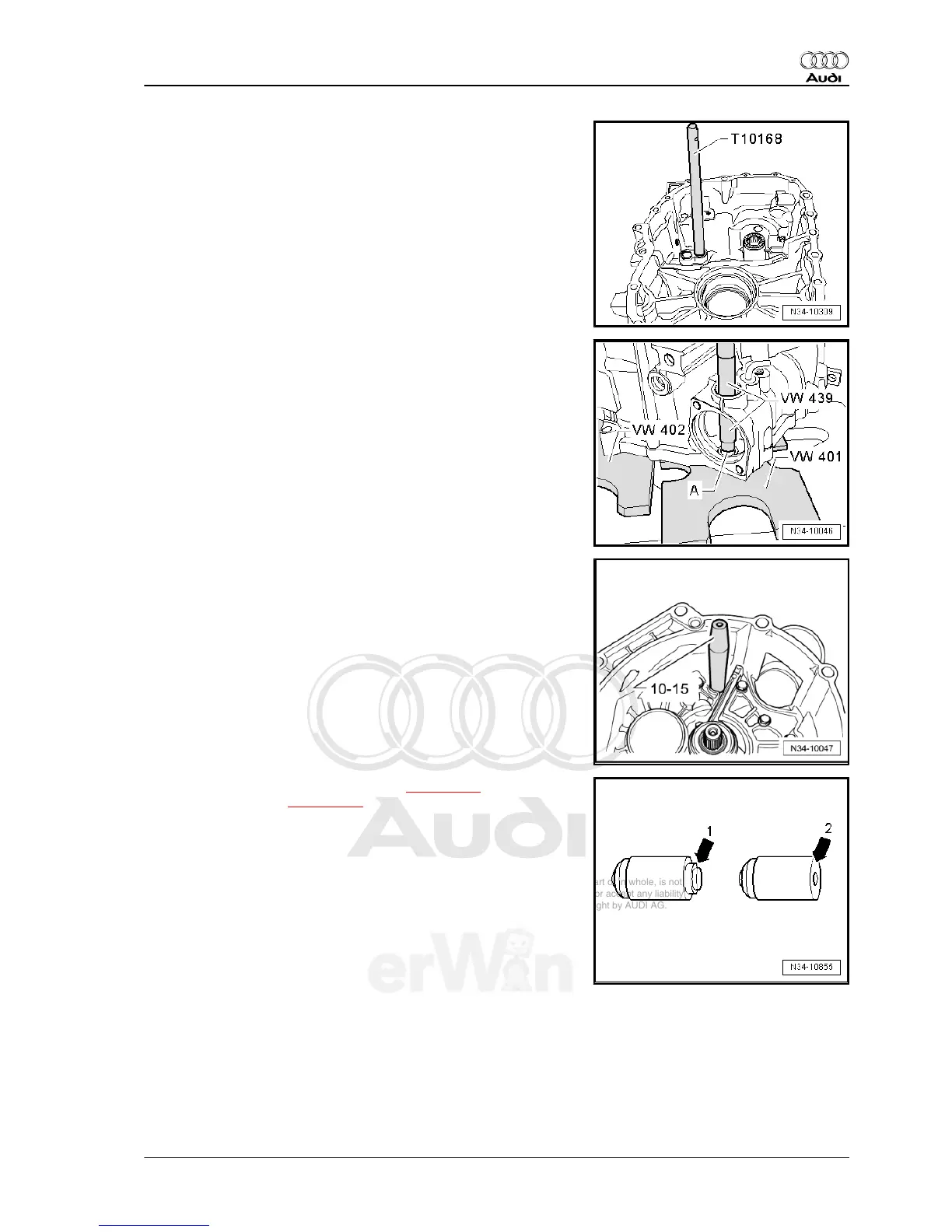

– Drive in bushing for selector rod up to the stop when tool
makes contact.
Pressing Out Lock Sleeve with Transmission Disassembled
– Arrange transmission housing on -VW 401- and -VW 402- so
that alignment bushings in transmission housing are not dam‐
aged.
– Press out the lock sleeve -A-.
Driving Out Lock Sleeve with Transmission Assembled
• Locking bolt and selector shaft removed.
– Rotate transmission so that lock sleeve does not fall into trans‐
mission.
– Drive out the lock sleeve using -10 - 15- .
Lock Sleeve Differentiation
– A lock sleeve with shoulder -arrow 1- ⇒ page 156 and without
shoulder -arrow 2- ⇒ page 156 can be installed.
– Allocate components, refer to the electronic parts catalog ET‐
KA.
Audi TT 2007 ➤
Manual Transmission - Edition 10.2009
5. Disassembly and Assembly 155
