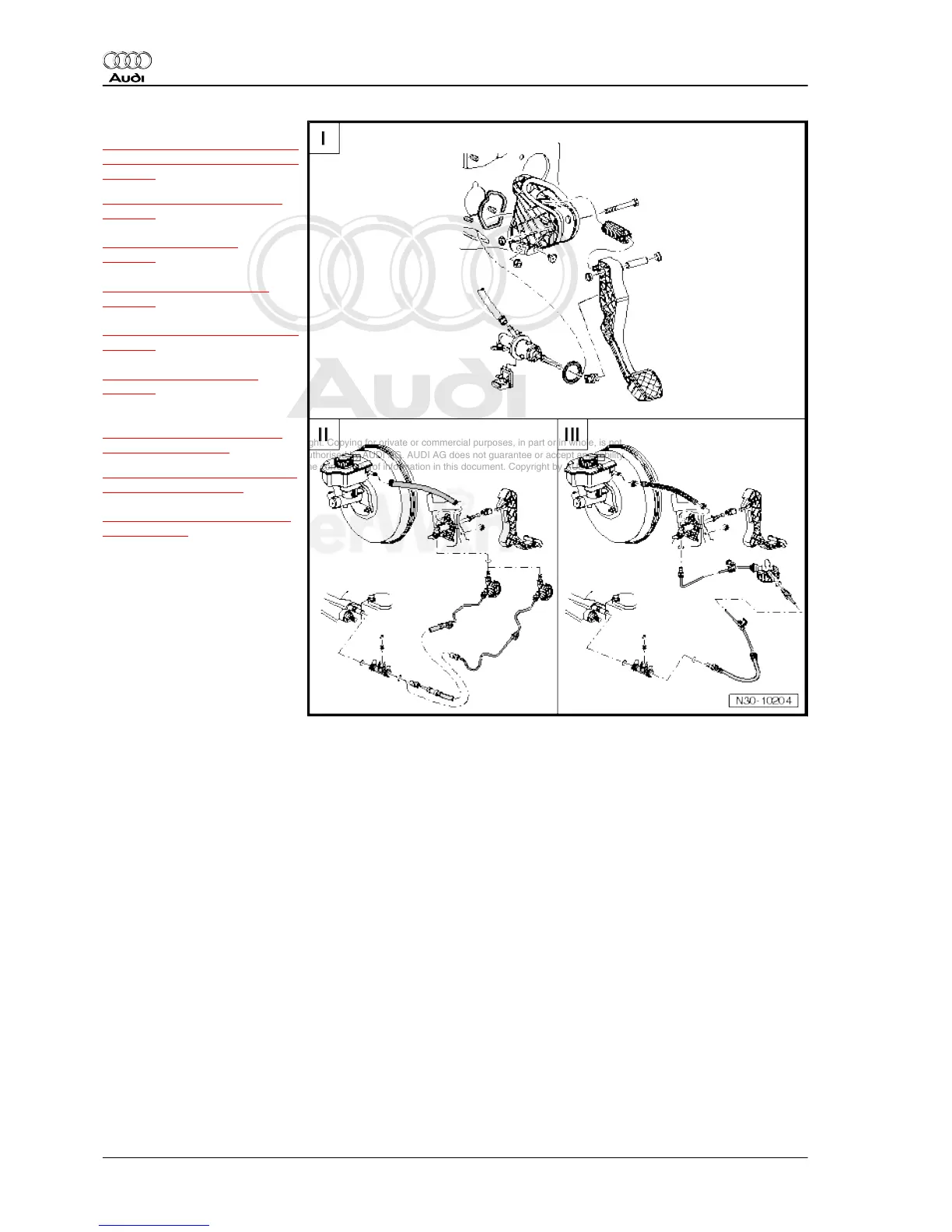

I -
⇒ “2.2 Pedal Assembly, Master
Cylinder Assembly Overview ”,
page 17
⇒ “4.2 Over-Center Spring”,
page 30
⇒ “4.3 Clutch Pedal”,
page 32
⇒ “4.4 Mounting Bracket”,
page 34
⇒ “4.5 Clutch Position Sensor”,
page 36
⇒ “4.6 Master Cylinder”,
page 37
II -
⇒ “2.3 Hydraulics Assembly
Overview”, page 19
⇒ “4.1 Hose/Line Assembly or
Plastic Line”, page 29
⇒ “1.2 Clutch System, Bleed‐
ing”, page 12
III - Hydraulics, RHD , Assem‐
bly Overview
Audi TT 2007 ➤
Manual Transmission - Edition 10.2009
16 Rep. Gr.30 - Clutch
