12 - Control Cable Mounting Bracket
13 - Nut
❑ Only in vehicles with a 4-cylinder engine

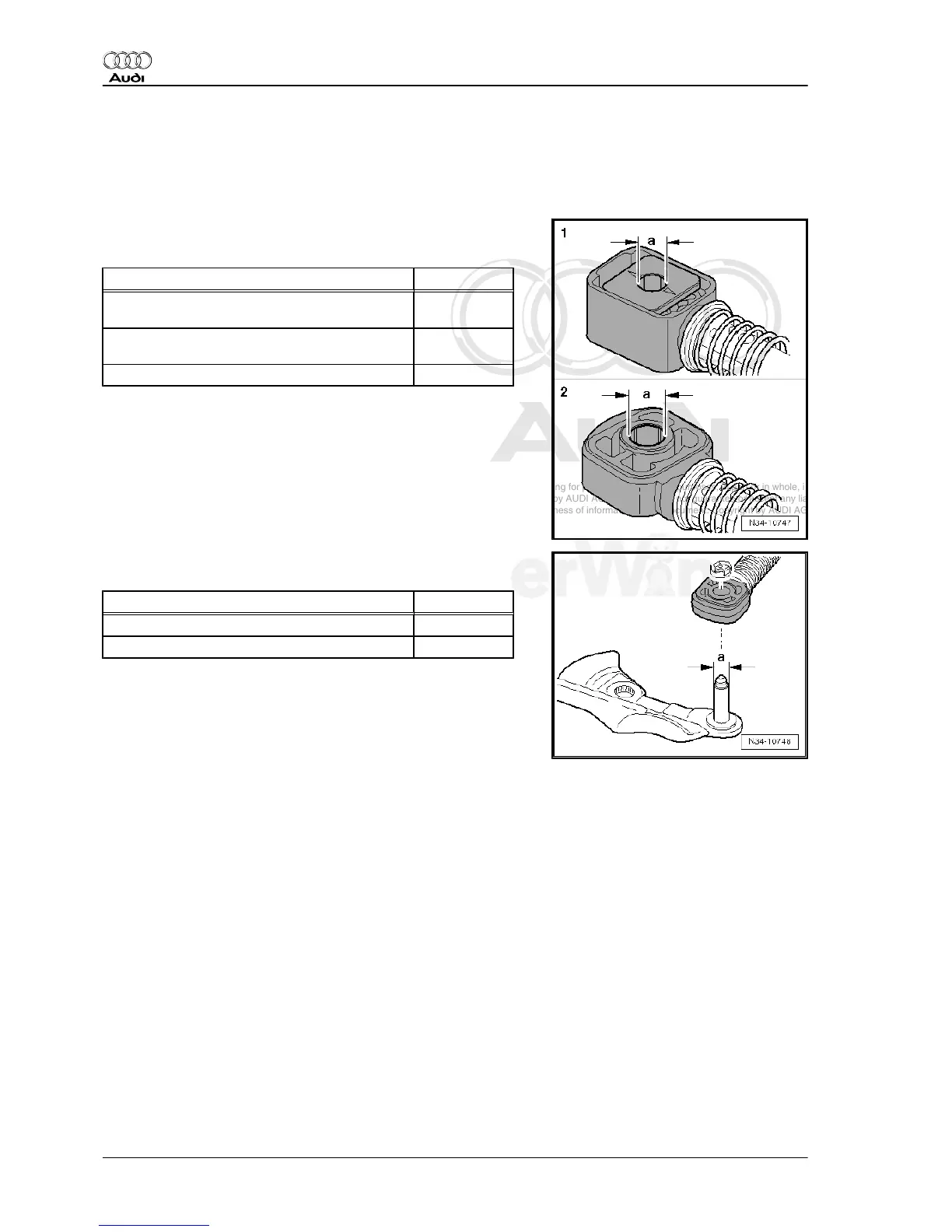

Allocation of Control Cable Retainers
The holes in the control cable retainers have various diameters.
Control Cable Retainer For Dimension “a”
1. - Shift cable to transmission shift lever from
06/06
8.5 mm
2. - Shift cable to transmission shift lever to
05/06
10 mm
2. - Selector cable to metal selector relay lever 8 mm
Starting in 06/2006, Smaller Mounting Pin Diameter for the Shift
Cable Retainer
Shift Cable Retainer Mounting Pins Dimension “a”
Through 05.06 10 mm
From 06.06 8.5 mm
Audi TT 2007 ➤
Manual Transmission - Edition 10.2009
62 Rep. Gr.34 - Controls, Housing
To Next Page
