9 - Bolt
❑ Connecting bar to body
❑ Tightening specification, refer to ⇒ Engine Mechanical; Rep. Gr. 10 ; Description and Operation
10 - Bolt
❑ Engine mount to body
❑ Tightening specification, refer to ⇒ Engine Mechanical; Rep. Gr. 10 ; Description and Operation
11 - Bolts
❑ Engine mount to engine support
❑ Tightening specification, refer to ⇒ Engine Mechanical; Rep. Gr. 10 ; Description and Operation
12 - Pendulum Support
❑ Removing and installing, refer to ⇒ “4.10 Pendulum Support”, page 117
13 - Bolt
❑ Replace
❑ 100 Nm plus an additional 90° turn
❑ Pendulum support to subframe
14 - Bolt
❑ Replace
❑ 60 Nm plus an additional 90° turn
❑ Transmission mount to transmission console
15 - Bolt
❑ Replace
❑ 40 Nm plus an additional 90° turn
❑ Transmission mount to body
16 - Transmission Mount
❑ Removing, refer to ⇒ “4.8 Transmission Mount, Removing”, page 113
❑ Installing, refer to ⇒ “4.9 Transmission Mount, installing”, page 116
17 - Bolt
❑ Transmission console to transmission
❑ 60 Nm plus an additional 90° turn
❑ Replace
18 - Transmission Bracket

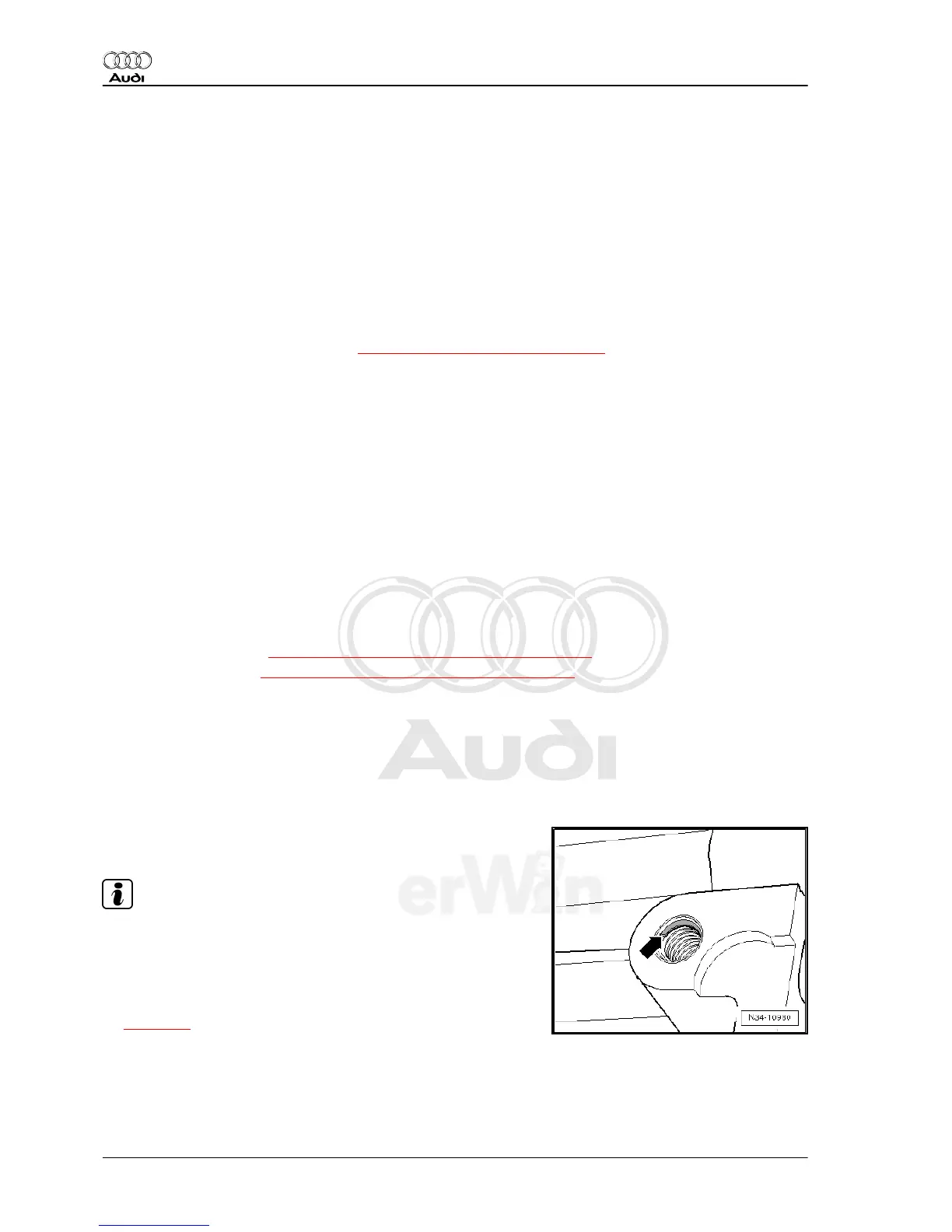

Transmission with Threaded Inserts (for example HeliCoil) for
Securing the Pendulum Support
Note
♦ The holes for the pendulum support from transmission build
date 5/28/07 always have threaded inserts (for example Heli‐
Coil).
♦ How to recognize: collar on the first thread -arrow-.
♦ Different securing bolts and tightening torques -2-
⇒ page 72 .
