MAX Operation & Service Manual 13MAX Operation & Service Manual Section 2: Getting to Know the MAX 13
Section 2: Getting to Know the MAX
Before you get started you should understand the basic parts and processes of the machine. This section
gives you a general introduction to the machine, its design, and how it works. Illustrations identify
important parts and systems and provide references to better understand the machine.
For purposes of orientation and reference, unless stated otherwise, when this manual refers to areas on
the machine, it will be assumed the machine is in the operating position, as viewed by the operator at
the foul line. Refer to Figure 2-1.
(5)
(4)
(6)
(1)
(1)
(2)
(3)
(4)

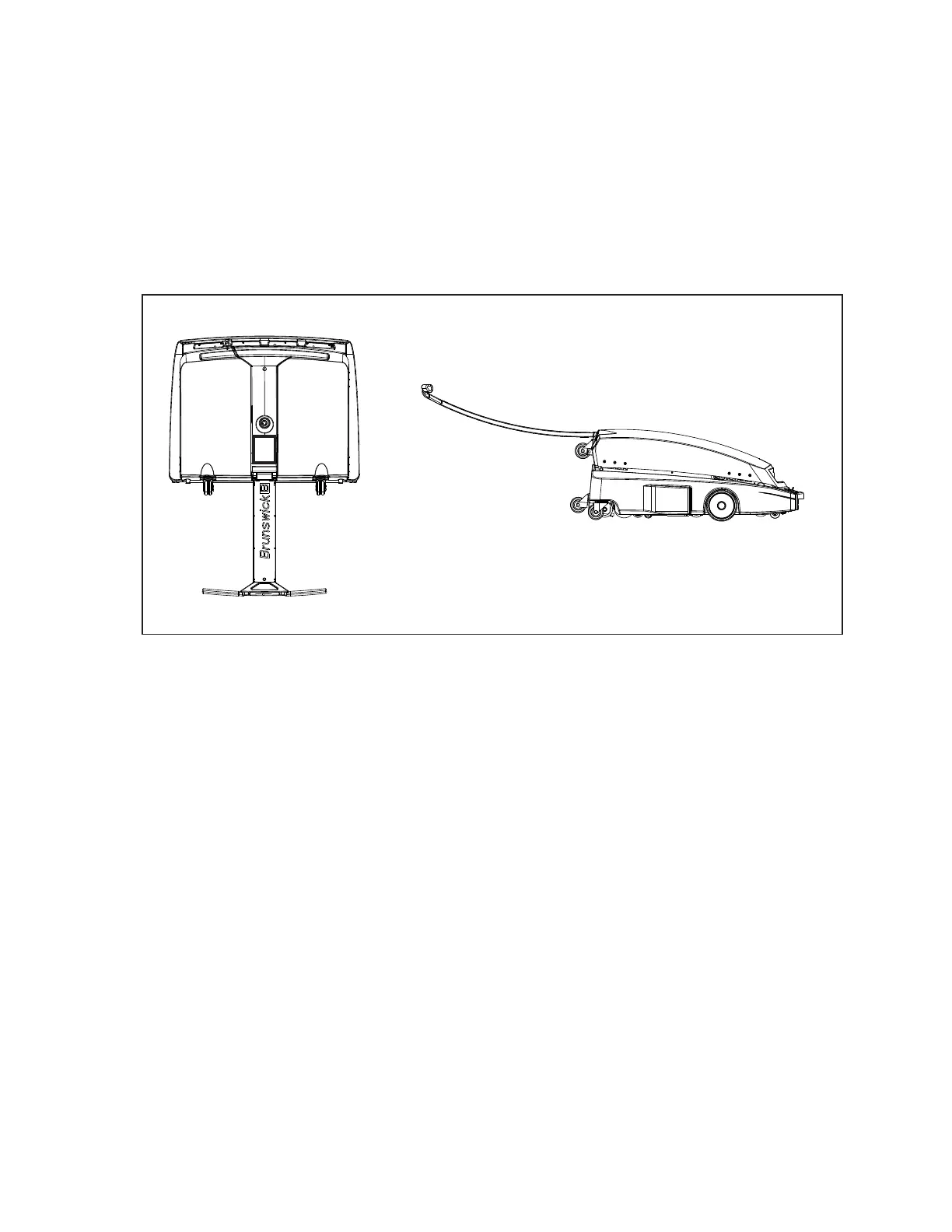

Figure2-1.MachineOrientation
(1) FRONT
(2) 7 PIN OR LEFT SIDE
(3) 10 PIN OR RIGHT SIDE
(4) REAR
(5) TOP
(6) BOTTOM
In this section you will nd:
1. Machine Specications
2. An introduction to the machine’s features
3. A visual guide to the machine:
a. In operating position (Top View)
b. In transport position (Bottom View)
c. Tablet Interface
d. Handle controls
