Oil Injector and Cleaner Spray Tests
The “Oil Injector Test” diagnostic screen and “Cleaner Spray Test” allows you to test the “Oil injectors”
and “Cleaner Spray” functions. In the event that an oil injector or a cleaner spray nozzle is suspect to
failure, you may perform these tests to visually inspect the spray pattern and identify an issue.
The test for the Oil Injectors is designed for the technician to visually see each injectors spray pattern.
This diagnostic function veries that each injector is ring properly and to identify if an injector has
failed or not creating the appropriate spray pattern. The machine will travel approximately 25 feet down
the lane during this test. The process includes cleaning the lane and ring each injector in a sequential
order allowing the technician to easily see each injection without interference by the buffer brush. Refer
to Figure 7-13.

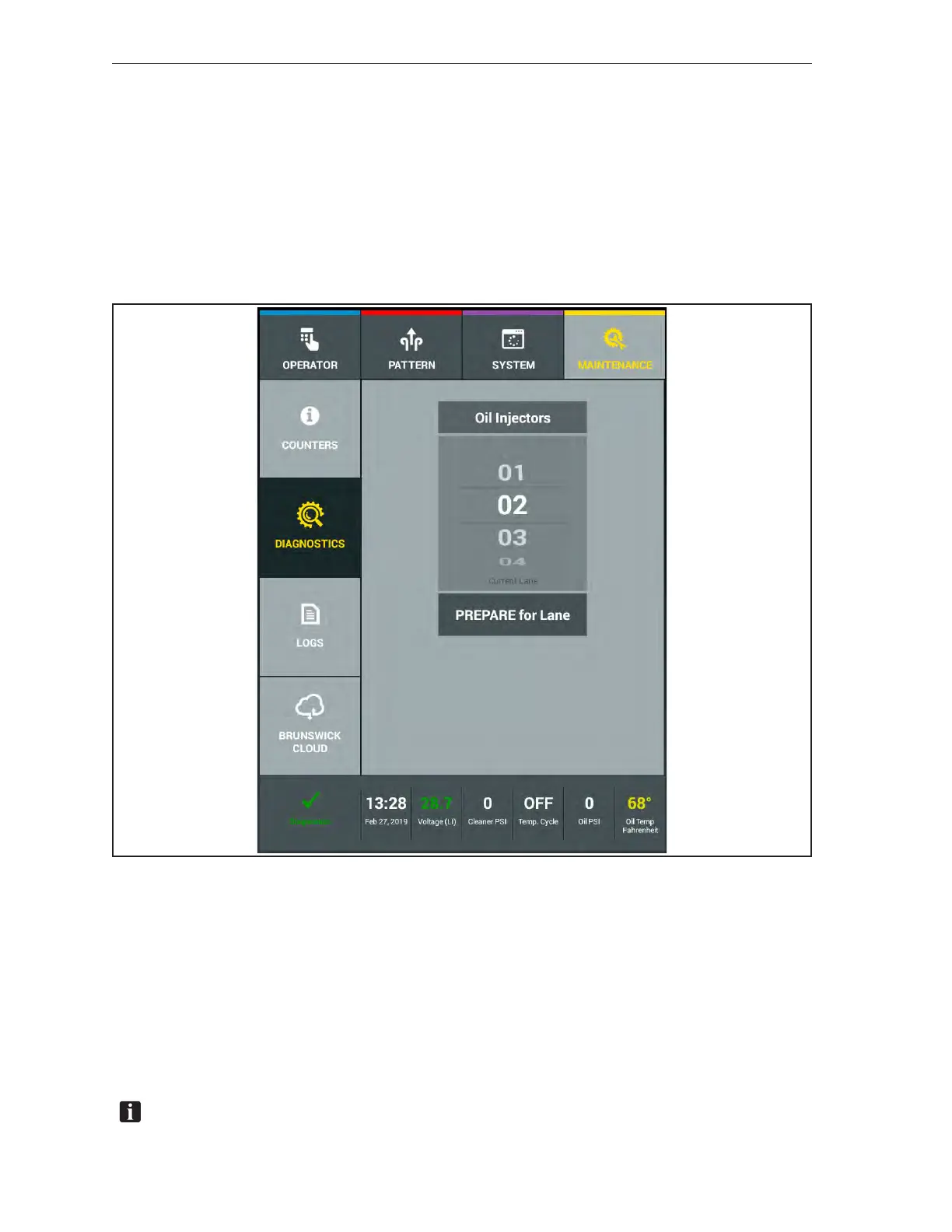

Figure7-13.Diagnostics-OilInjectorTest
1. Select “Oil Injectors” by pressing the button.
2. Press handle button to prepare the lane machine to run a lane. The injector test pattern may
need to be downloaded.
3. “Put the lane machine on the lane” when instructed.
4. Press handle button again to start the cleaning operation of the “Oil Injectors” test. The
machine will automatically clean approximately the rst 25 feet of the bowling lane and inject
at the same time while performing this test. Perform a clean only or a clean and condition after
completion of the Oil Injector test.
NOTE: Aftertestiscompleteditwillbenecessarytocleanandreconditionthelanewiththe
appropriateconditionerpattern.
