The Traction Drive System
1. The machine travels up and down the lane by means of a traction drive motor connected
through a chain to two drive wheels. Refer to Figure 7-7.
a. At the optional “Fast” speed, the machine travels forward at a constant 27 inches per
second.
b. At “Medium” speed, the machine travels forward at a constant 24 inches per second.
c. At “Slow” speed the machine travels forward at a constant 21 inches per second. This
option is used to optimize lane cleaning
For information on how to change the travel speed, see Section 4.
(1)
(3)
(2)
(5)
(3)
(4)
(6)
(7)
(8)

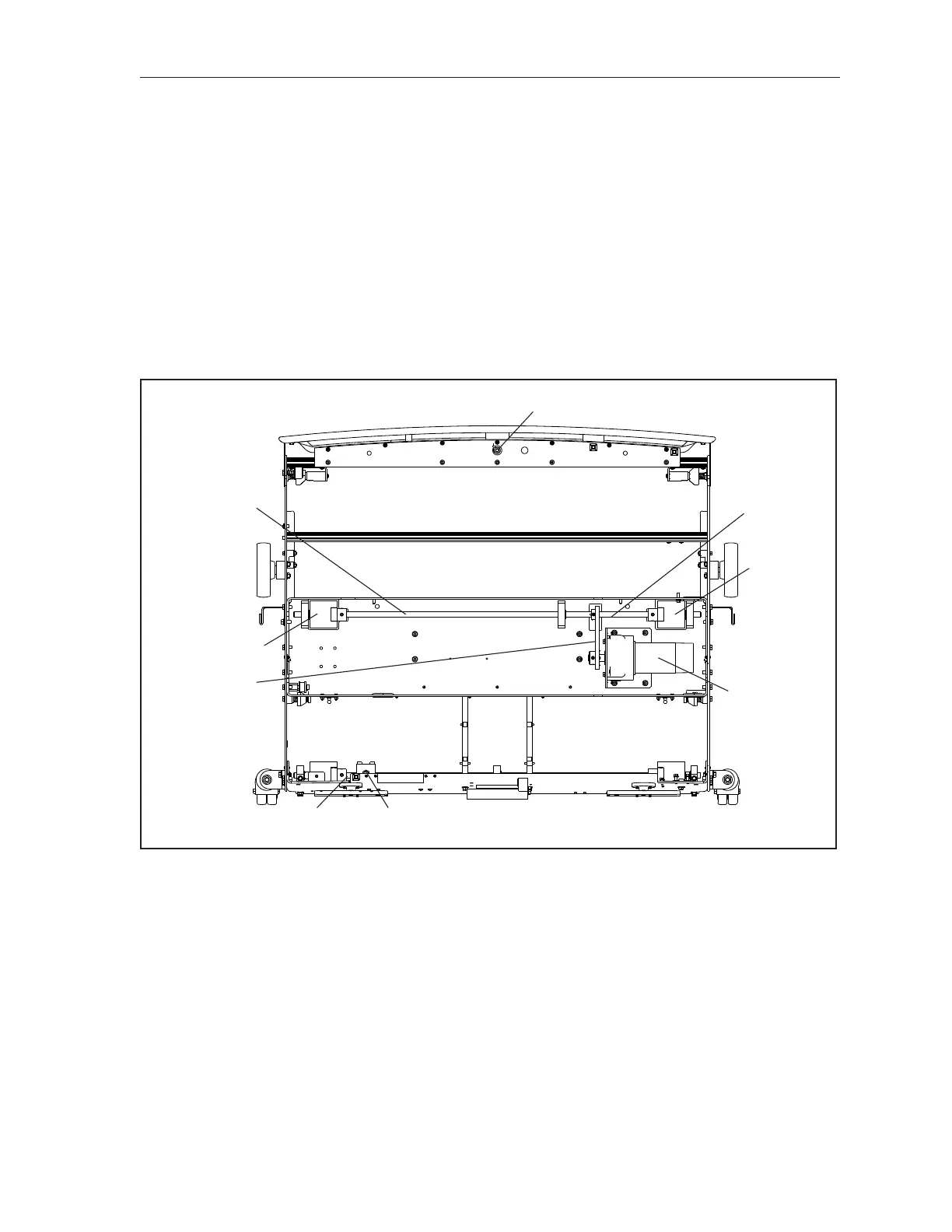

Figure7-7.TractionDriveSystem
(1) TRACTION WHEEL DRIVE SHAFT
(2) TRACTION MOTOR CHAIN
(3) TRACTION DRIVE WHEELS
(4) TRACTION DRIVE MOTOR
(5) END OF LANE SENSOR
(6) REAR SHAFT
(7) DISTANCE SENSOR (REAR)
(8) DISTANCE SENSOR (FRONT)
