Preparing for Operation On Approach
1. When the operator presses handle button or the “Prepare for Lane” button to prepare the
machine to operate, the control system:
a. Rotates the duster cloth take-up roll to lower the duster contact roller into operating
position and conrms that the duster cloth is in the “down” position via the duster down
switch.
b. Lowers the squeegee head assembly into operating position via the squeegee up/down
motor and conrms that the squeegee is in the “down” position via the squeegee down
switch.
c. Turns on the conditioner pump and conditioner vent valve to slightly over-pressurize
the conditioning system (accumulator and injector rail assembly) and then turns off the
conditioner pump and vent valve.
d. Opens the conditioner pressure control valve and conditioner vent valve to allow
conditioner to ow back to the conditioner tank until the system has reached target
pressure of 20 psi.
e. Starts the vacuum motor.
f. The operator screen displays “PUT THE MACHINE ON THE LANE” when the machine
is ready to begin operation. Refer to Figure7-1.

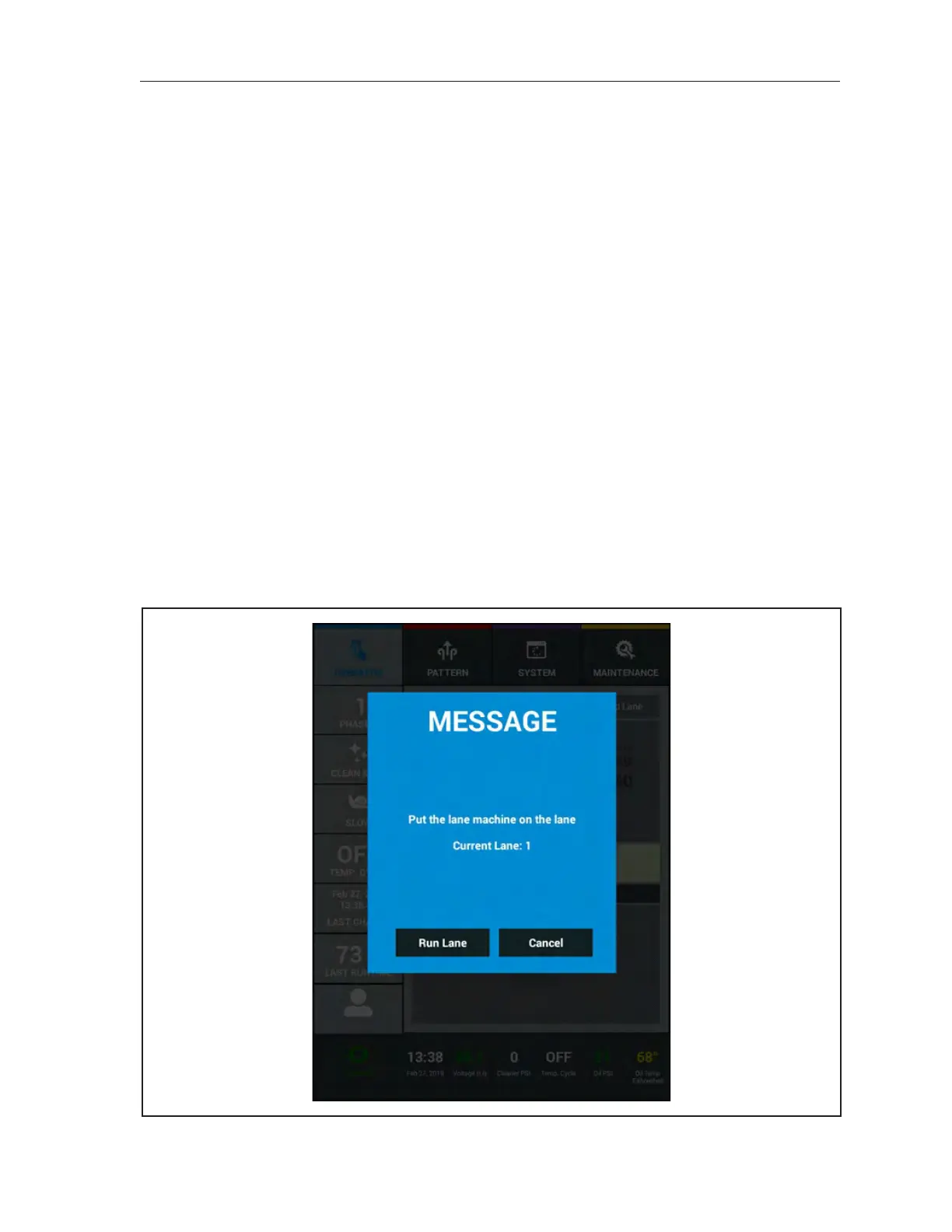

Figure7-1.PuttheLaneMachineontheLane
