Conditioning
The “Conditioning” diagnostics screen is also split into 2 sections. The top section displays the sensors
and current status used in conjunction with the conditioning system (sensors include buffer position,
temperature, pressure, and conditioner supply tank level sensor). The bottom section displays the
motor functions (buffer drive and lift motors, conditioner pump, heater, and dispersion motor) that can
be selected and tested for either a period of up to 20 seconds or may toggle (Toggle Buffer up/down)
between positions. Multiple functions may be turned on at the same time (always turn on the “Oil
Tank Vent” whenever running the “Oil Pump” or the “Oil Press Valve”). Refer to Figure7-11.

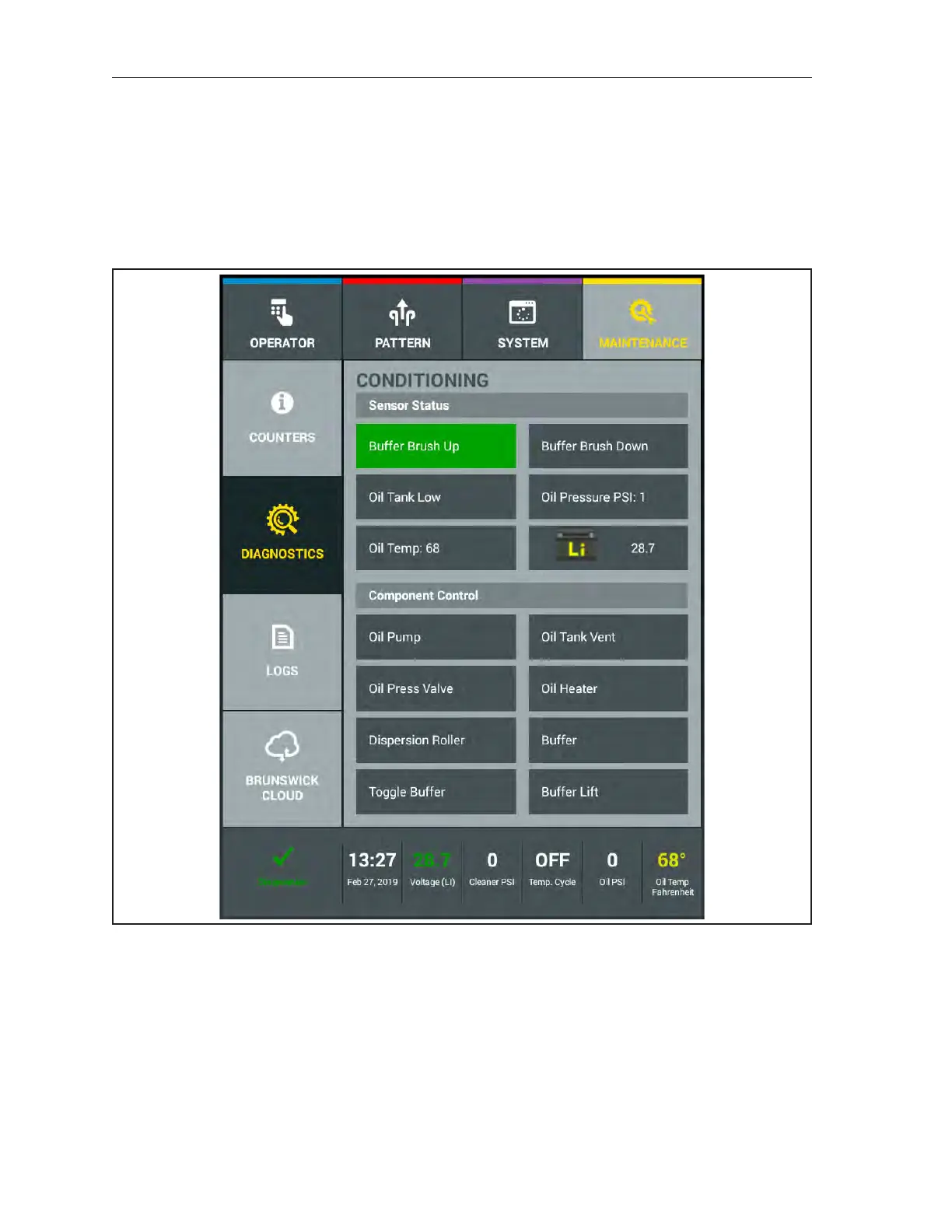

Figure7-11.Diagnostics-Conditioning
1. Select “Conditioning” by pressing the button.
2. Identify and select the motor function that is suspect to failure.
3. Press the component button and the component will run for up to 20 seconds and shut off
except for the “Toggle Buffer up/down” button which moves between the buffer brush up and
down switches. Any timed function can be turned off in less than the remaining 20 seconds by
pressing the button again.
Sensors will highlight when a motor function related to the sensor is activated.
