Annual Maintenance in Transport Position
(2)
(1)
(3)
(11)
(4)
(6)
(8)
(10)
(7)
(3)
(2)
(5)
(2)
(9)

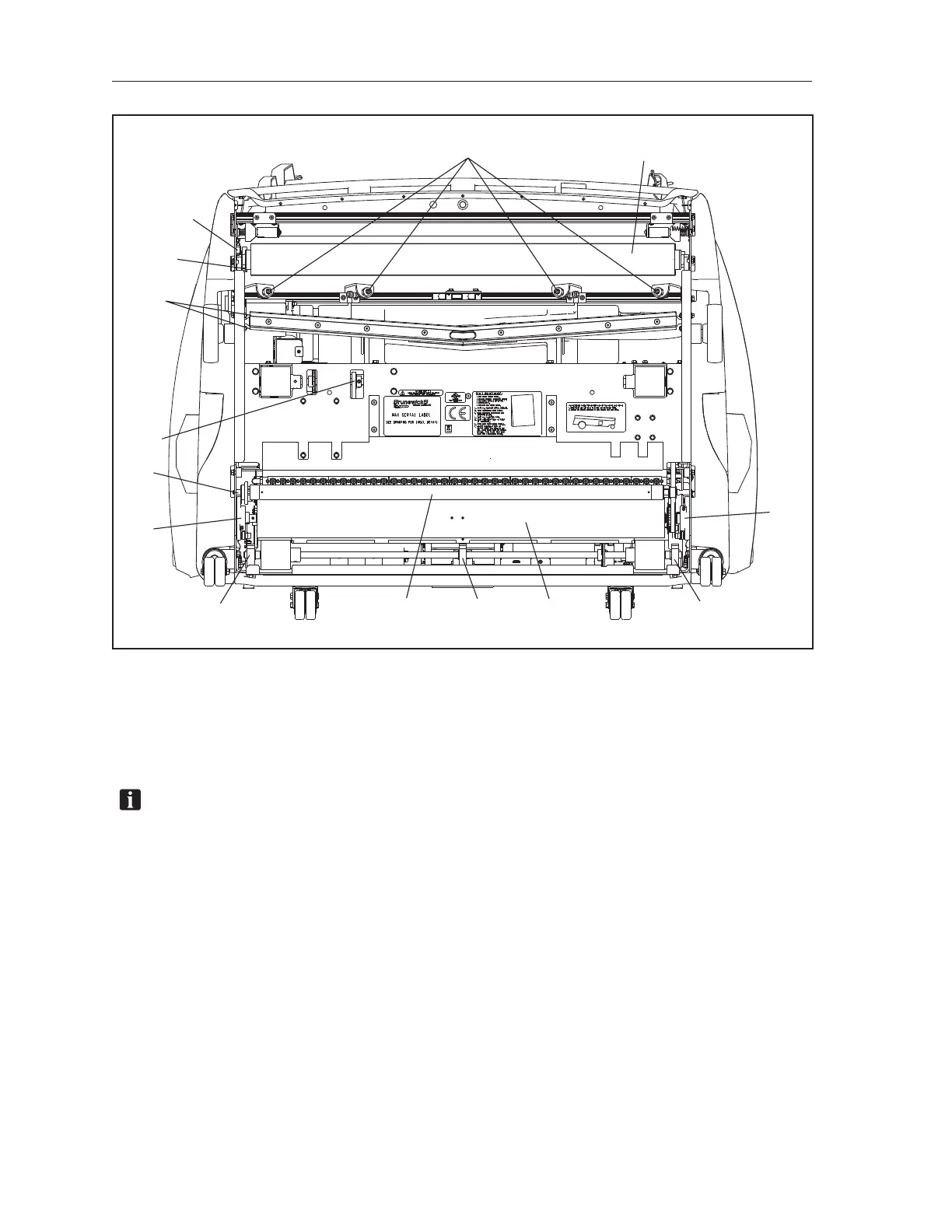

Figure6-6.TransportPosition-AnnualMaintenance
(1) DISPERSION ROLLER (GREASE
LOCATION)
(2) REAR WHEEL/TRACTION DRIVE
BEARING BLOCKS
(3) BUFFER BRUSH BEARINGS
(4) ABSORBENT WIPER AND SQUEEGEE
BLADE
(5) BUFFER BRUSH
(6) DUSTER CLUTCH ASSEMBLY
(7) DUSTER CONTACT ROLLER
(8) DUSTER UP/DOWN SWITCHES
(9) DISPERSION ROLLER
(10) CLEANER SPRAY NOZZLES AND
CHECK VALVE FILTERS
(11) TRACTION DRIVE CHAIN
NOTE: Thefollowingmaintenanceitemsareexplainedindetail,laterinthissection,inthe
How to Replace, Adjust, or Lubricate Partsprocedure..
1. Grease dispersion roller.
2. Lubricate rear-wheel bearing blocks and traction drive bearing blocks.
3. Grease buffer brush bearings.
4. Replace absorbent wiper (Replace every 5000 lanes) and squeegee blade (ip every 3 to 6
months, replace every 12 months). You may need to replace them sooner depending on the
usage of the machine.
.
5. Inspect buffer brush and replace if needed.
6. Inspect duster clutch assembly and hardware and replace if needed.
