ANNUAL MAINTENANCE
In addition to the daily and scheduled maintenance, these items should be done once a year, depending
on use. The MAX uses high-quality parts to ensure long life. Yet with the demands of daily use, you’ll
want to replace parts that wear and check the adjustment of other components to keep your machine in
peak working order.
Wear on your machine is directly related to the amount of use and quality of preventative maintenance.
Your replacement needs may be higher or lower than the guidelines given here. If you have questions
about maintaining your machine, please contact your authorized Distributor or Brunswick Technical
Support (BTS) in the United States at 1-800-YES-BOWL, or internationally at 231-725-4966. For non
emergency support, e-mail techsupport@brunswickbowling.com
WARNING! Before performing maintenance, be sure the charger cord is
disconnected from the machine and the machine is off.
Annual Maintenance in Operating Position
(1)
(2)
(1)
(1)
(6)
(5)
(4)
(7)
(3)

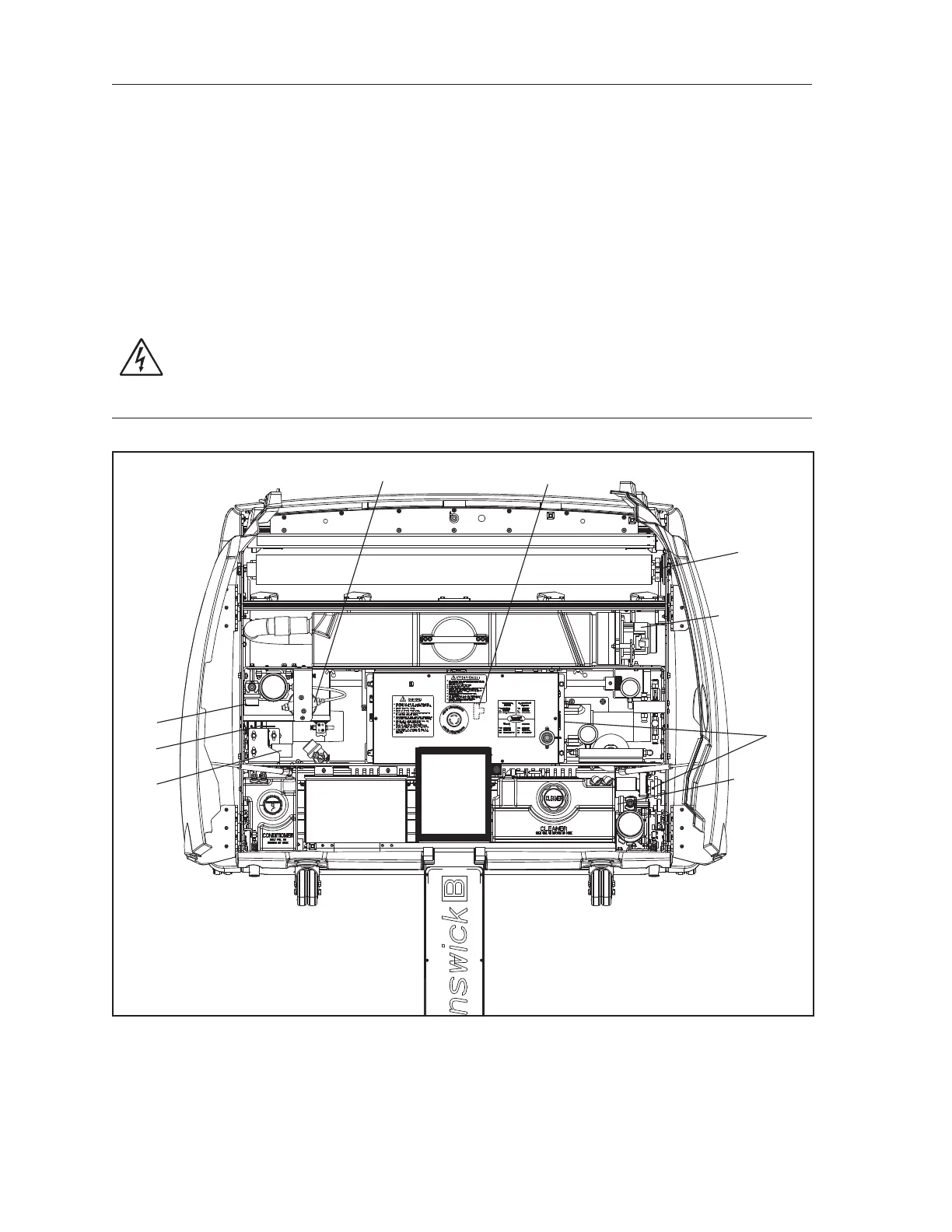

Figure6-5.OperatingPosition-AnnualMaintenance
(1) CLEANER/CONDITIONER SCREEN
FILTERS
(2) CONDITIONER SPIN-ON FILTER
(3) SQUEEGEE LIFTING ASSEMBLY
(4) TRACTION DRIVE/DISPERSION
ROLLER CHAINS
(5) BUFFER LIFTING ASSEMBLY
(6) BUFFER DRIVE BELT
(7) VACUUM MOTOR ASSEMBLY
