MAX Operation & Service Manual 139MAX Operation & Service Manual Section 6: Maintenance & Service 139
The Drive System
Replacing the End-of-Lane Sensor
Refer to Figure6-24.
Tools needed: adjustable wrench.
Parts needed: replacement EOL sensor (Part Number 14-100235-000).

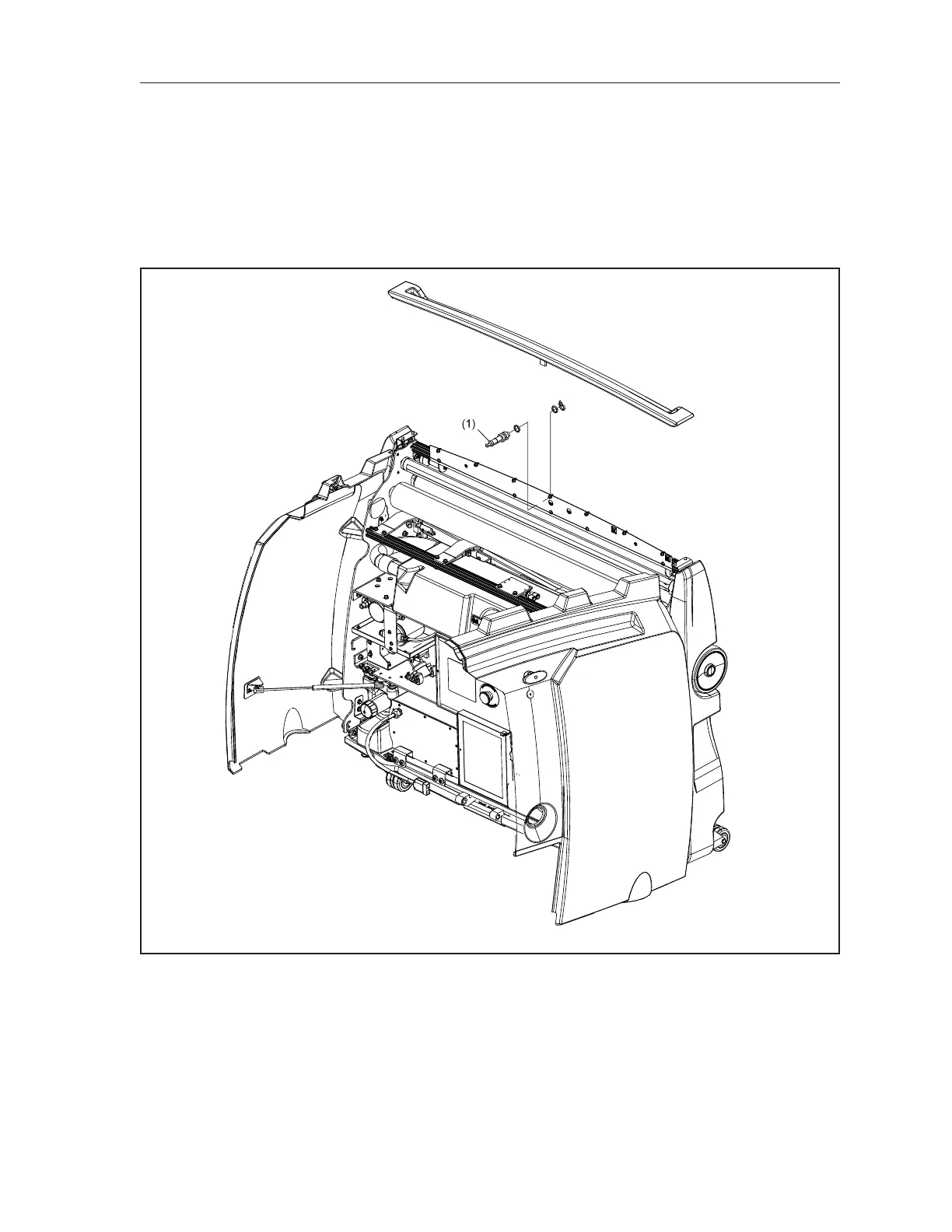

Figure6-24.End-of-LaneSensor
(1) END OF LANE SENSOR
1. Place machine in transport position with the cover open and power supply disconnected.
2. Loosen and remove nut at base of sensor.
3. Remove black O-ring from base of sensor.
To Next Page
