Brunswick MAX - Scheduled Maintenance in Transport Position

MAX Operation & Service Manual 97MAX Operation & Service Manual Section 6: Maintenance & Service 97
Scheduled Maintenance in Transport Position
(1)
(2)
(5)
(4)
(5)
(3)

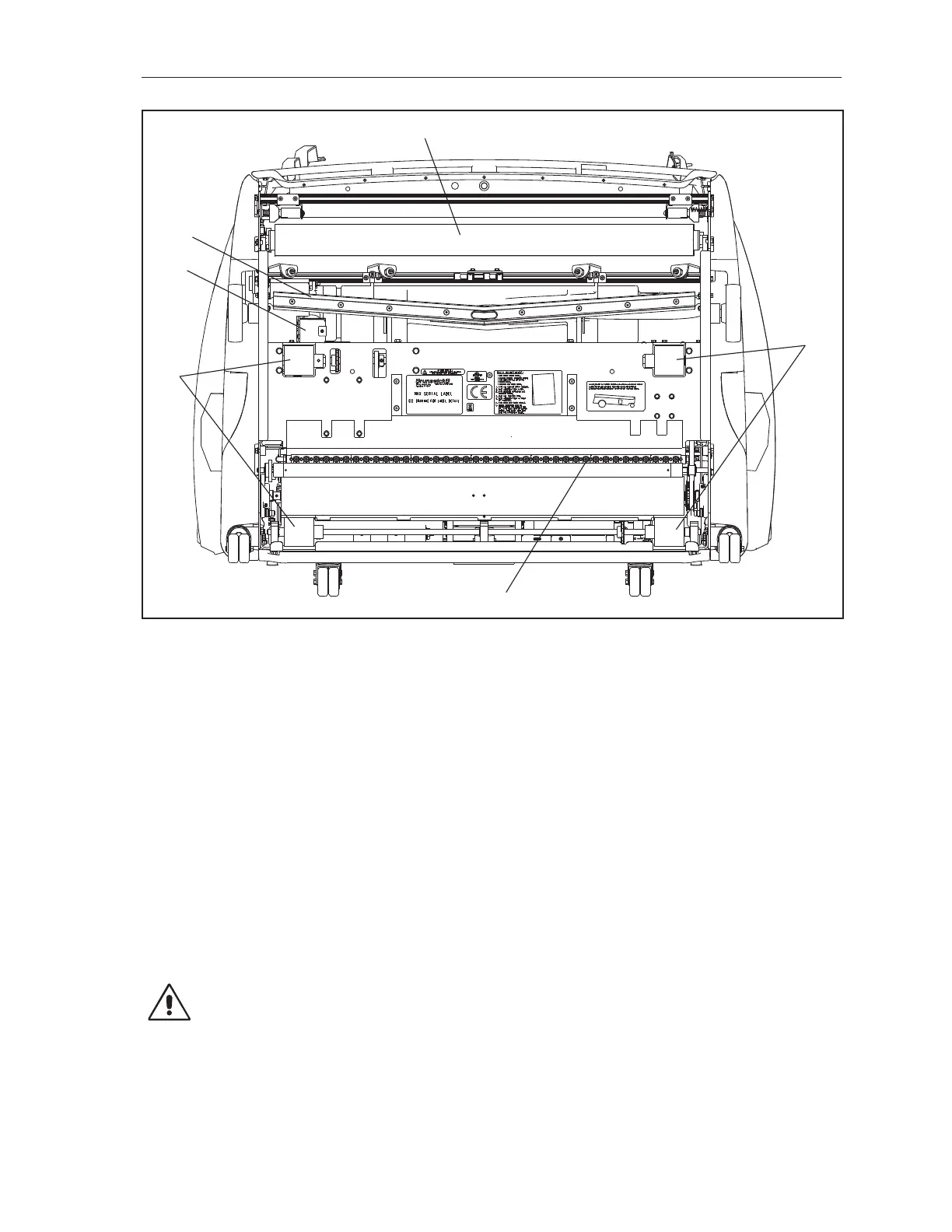

Figure6-4.TransportPosition-ScheduledMaintenance
(1) DUSTER CLOTH CONTACT ROLLER
(2) VACUUM EXHAUST DEFLECTOR
(3) ABSORBANT WIPER
(4) OIL INJECTOR TIPS
(5) TRACTION AND REAR DRIVE WHEELS
1. Wipe duster contact roller with a dry cloth.
2. Remove and squeeze out the absorbent foam material inside the vacuum exhaust deector.
Wipe the felt around the vacuum exhaust.
3. Check the absorbent wiper on the front edge of the squeegee blade. Replace the absorbent wiper
if it becomes worn or swollen every 3-6 months. Rotate the squeegee blade if edge becomes
dull or damaged. Replace every 14,600 lanes.
4. Clean the oil injector tips with white vinegar and cotton swabs.
5. Clean the traction drive wheels rear counter wheels with IPA99.
WARNING! Brunswick recommends using a partner whenever possible to
help with lifting or lowering the machine from the operating position. Take care
when lowering this machine into the operating position. Use proper lifting and
lowering techniques such as bending at the knees and using a back support, if
needed.
