Transport/Storage Position
Some maintenance procedures are performed with the machine in “transport position,” with the
machine upright, its underside exposed, and resting on its transport casters. Refer to Figure2-3.
WARNING! Always unplug AC power cord from the machine before servicing
or lifting machine into transport position. Never supply AC power to machine
when it is in transport position. Note: It is OK to connect DC power from
battery charger in transport position.
WARNING! Brunswick recommends using a partner whenever possible to
help with lifting or lowering the machine from the operating position. Take care
when lowering this machine into the operating position. Use proper lifting and
lowering techniques, bend at the knees, and use a back support, if needed.
(16)
(7)
(15)
(7)
(8)
(16)
(9)
(11)
(12)
(13)
(10)
(8)
(7)
(3)
(5) (1)
(2)
(6)
(5)
(3)
(16)
(4)
(7)
(15)
(14)
(16)
(17)

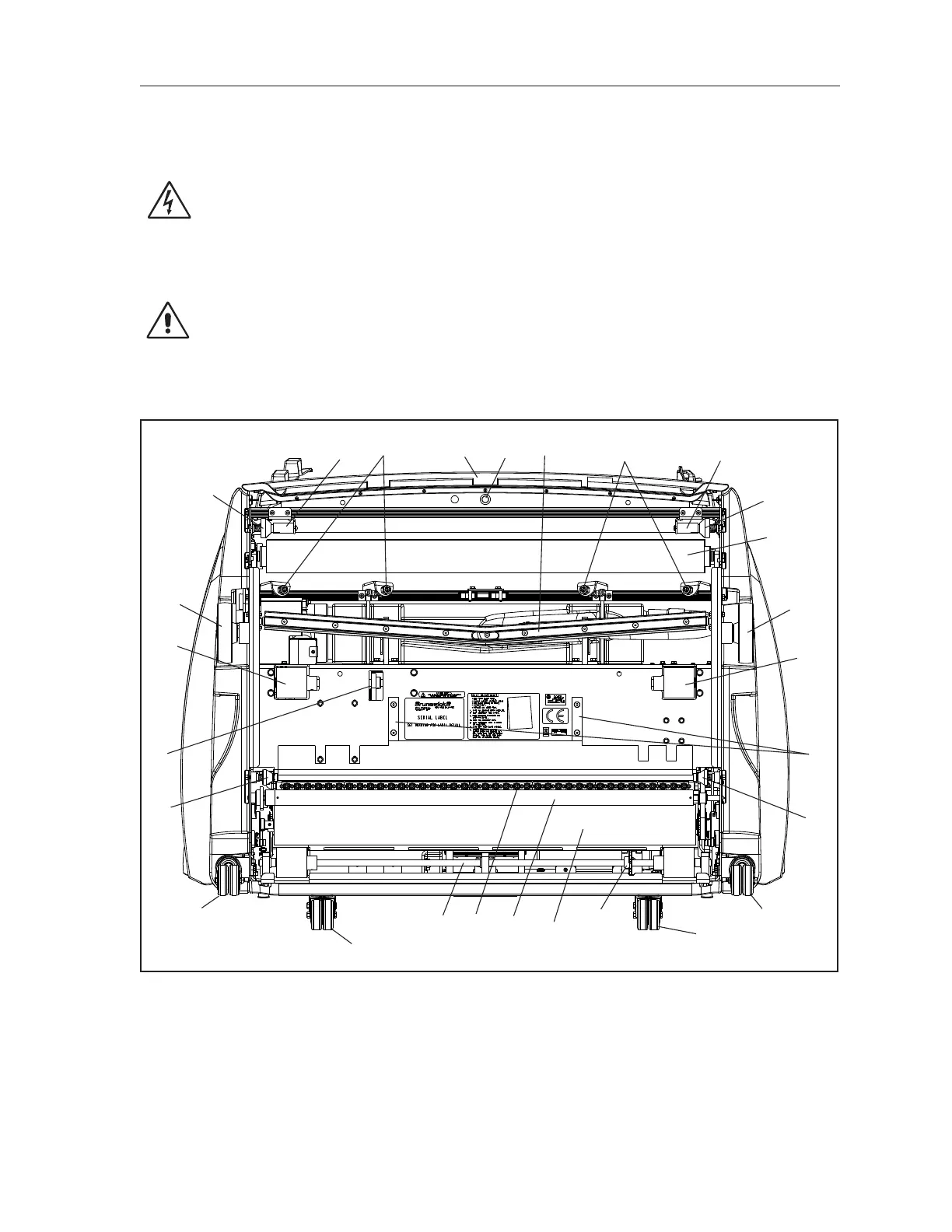

Figure2-3.TransportPosition
(1) FRONT HANDLE/BUMPER
(2) END-OF-LANE SENSOR
(3) TRANSITION ROLLERS
(4) DUSTER CONTACT ROLLER
(5) CLEANER SPRAY NOZZLES
(6) VACUUM SQUEEGEE HEAD
(7) LANE TO LANE WHEELS
(8) TRANSPORT CASTERS ASSEMBLY
(9) REAR SHAFT ASSEMBLY
(10) DISTANCE ENCO DER
(11) CONDITIONER INJECTORS
(12) DISPERS ION RO LLER
(13) B UF FER B RU SH
(14) SK ID PLATES
(15) TRACTION DRIVE WHEELS
(16) G U I DE ROLLERS
(17) DISTANCE ENCODER (SECONDARY)
