The Cleaning System
1. The duster cloth removes dust and dirt from the lane surface. Refer to Figure7-2.
a. The duster cloth motor unwinds the duster cloth take-up roll to allow the duster contact
roller to lower under its own weight until it engages the duster down switch.
b. The duster cloth dusts the lane surface as the machine travels toward the pin deck.
c. When the machine reaches the end of the lane, the duster cloth take-up roll winds up,
creating tension in the cloth that lifts the duster cloth contact roller until it reaches the
duster up switch (a friction clutch attached to the duster cloth supply roll is adjusted to
ensure the contact roller reaches a xed stop in the “up” position before it unrolls).
d. The duster cloth take up roll continues to rotate to advance clean duster cloth for use on the
next lane.

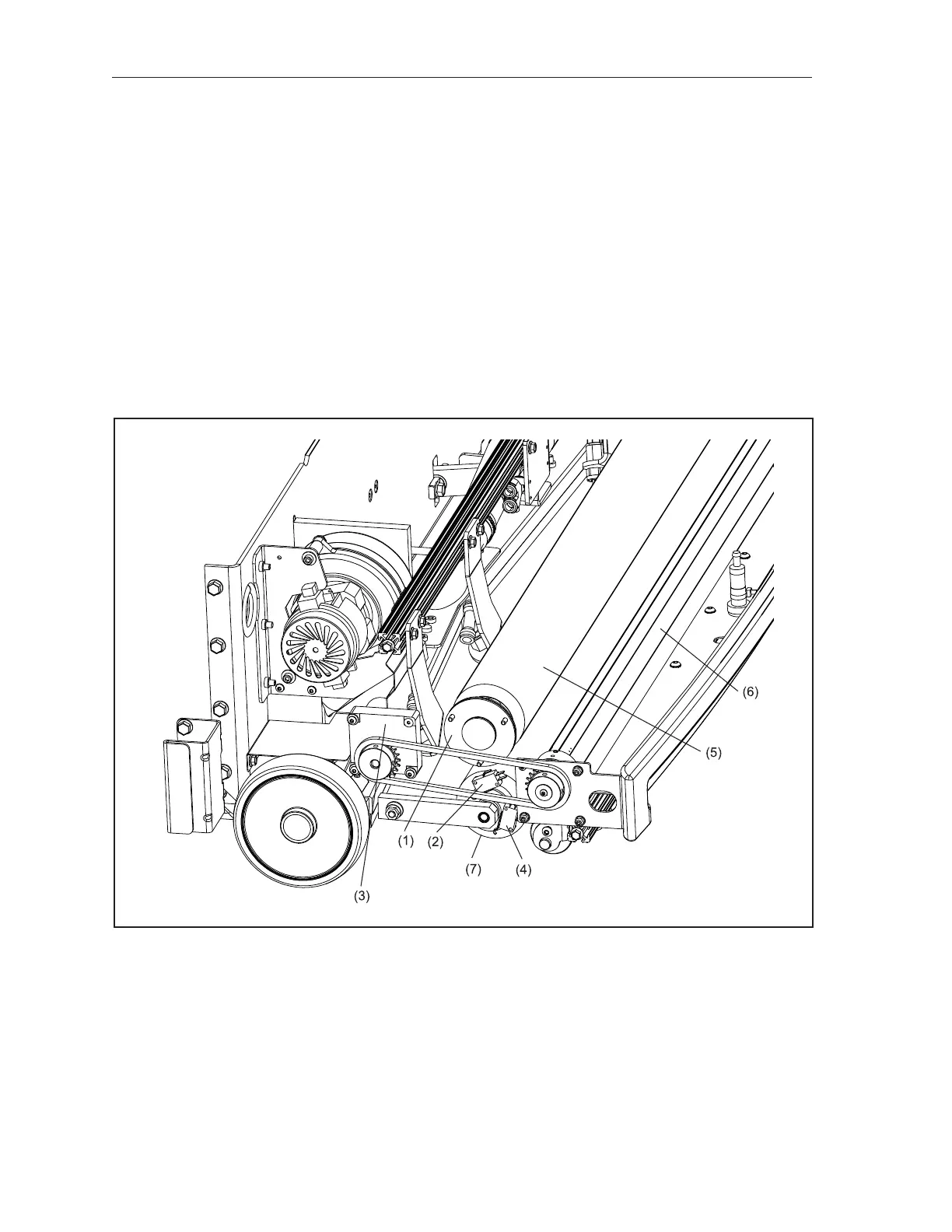

Figure7-2.DusterClothSystem
(1) DUSTER CLUTCH
(2) DUSTER UP SWITCH
(3) DUSTER CLOTH MOTOR
(4) DUSTER DOWN SWITCH
(5) DUSTER CLOTH SUPPLY ROLL
(6) DUSTER CLOTH TAKE UP ROLL
(7) DUSTER CONTACT ROLLER
