MAX Operation & Service Manual 155MAX Operation & Service Manual Section7:Troubleshooting155
2. The cleaner pump applies cleaning uid to the lane. Refer to Figure 7-3.
a. Four spray nozzles apply a continuous spray of cleaning uid to the lane.
b. A spring-loaded check valve opens when more than 10 psi of cleaning uid is supplied by
the pump.
c. An adjustable cleaner pressure control valve controls the cleaner volume and pressure.
d. The control system turns off the cleaning pump at a distance determined by the user. It
also quickly sprays one time on the pin deck before stopping the ow of cleaner through
the spray nozzles.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(9)
(9)
(9)
(10)
(11)

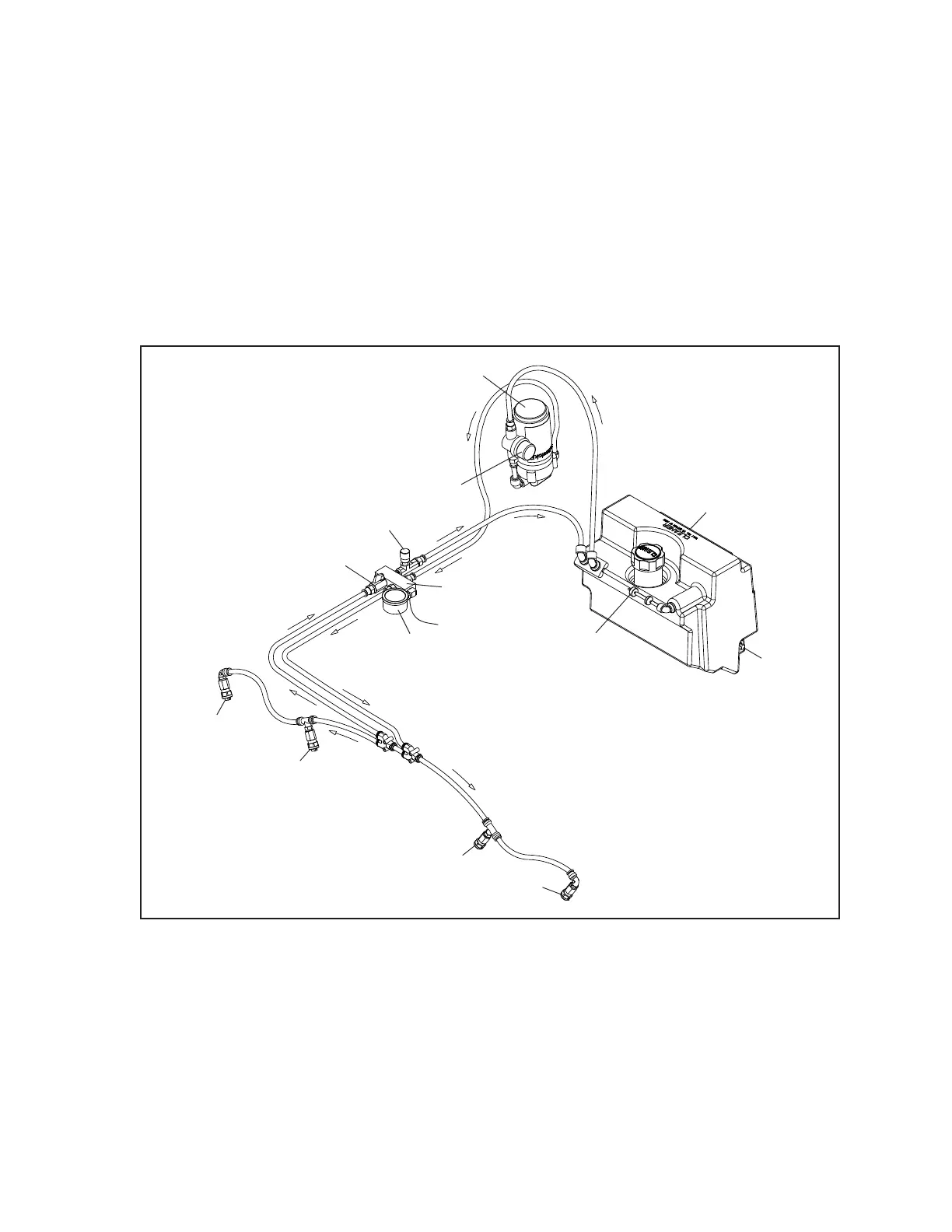

Figure7-3.CleanerSpraySystem
(1) CLEANER SUPPLY TANK
(2) CLEANER VENT VALVE
(3) CLEANER LEVEL FLOAT SENSOR
(4) CLEANER SCREEN FILTER
(5) CLEANER PRESSURE GAUGE
(6) CLEANER MANIFOLD
(7) CLEANER PUMP
(8) CLEANER SHUT OFF VALVE
(9) CLEANER SPRAY NOZZLES
(10) PRESSURE CONTROL VALVE
(11) CLEANER PRESSURE SENSOR
