3. The absorbent wiper agitates the cleaning uid on the lane to help loosen dirt and conditioner.
Refer to Figure 7-4.

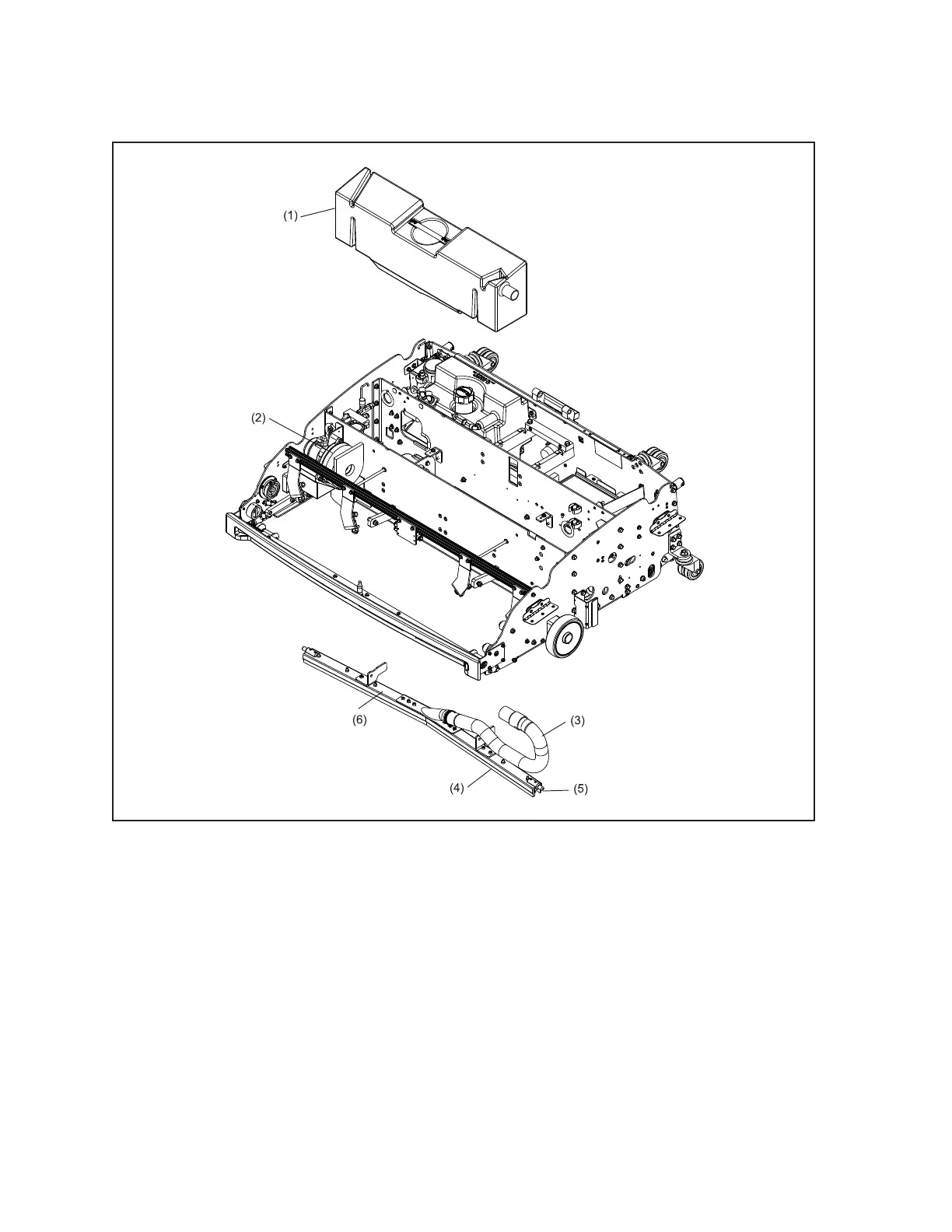

Figure7-4.CleanerVacuumSystem
(1) WASTE RECOVERY TANK
(2) VACUUM MOTOR ASSEMBLY
(3) VACUUM HOSE
(4) ABSORBENT WIPER
(5) SQUEEGEE BLADE
(6) SQUEEGEE HEAD ASSEMBLY
4. The squeegee assembly and vacuum remove cleaner and conditioner from the lane surface and
collect it in the waste recovery tank. Refer to Figure7-4.
a. The squeegee blade channels waste uid to the center of the squeegee assembly.
b. Waste uid is suctioned to the waste recovery tank.
c. A bafe system in the waste recovery tank directs waste liquids and solids to the bottom of
the tank. This isolates the waste material away from the vacuum motor.
