Operating Position
Most maintenance operations are made with the machine in “operating position” with the covers open.
Refer to Figure 2-4.
WARNING! Brunswick recommends using a partner whenever possible to
help with lifting or lowering the machine from the operating position. Take care
when lowering this machine into the operating position. Use proper lifting and
lowering techniques, bend at the knees, and use a back support, if needed.
(1)
(4)
(6)
(9)
(2)
(3)
(7)
(25)
(12) (10)
(26)
(5)
(8)
(13)
(14)
(11)
(15)
(16)
(17)
(18)
(19)
(20)(22)(21)
(24)
(23)

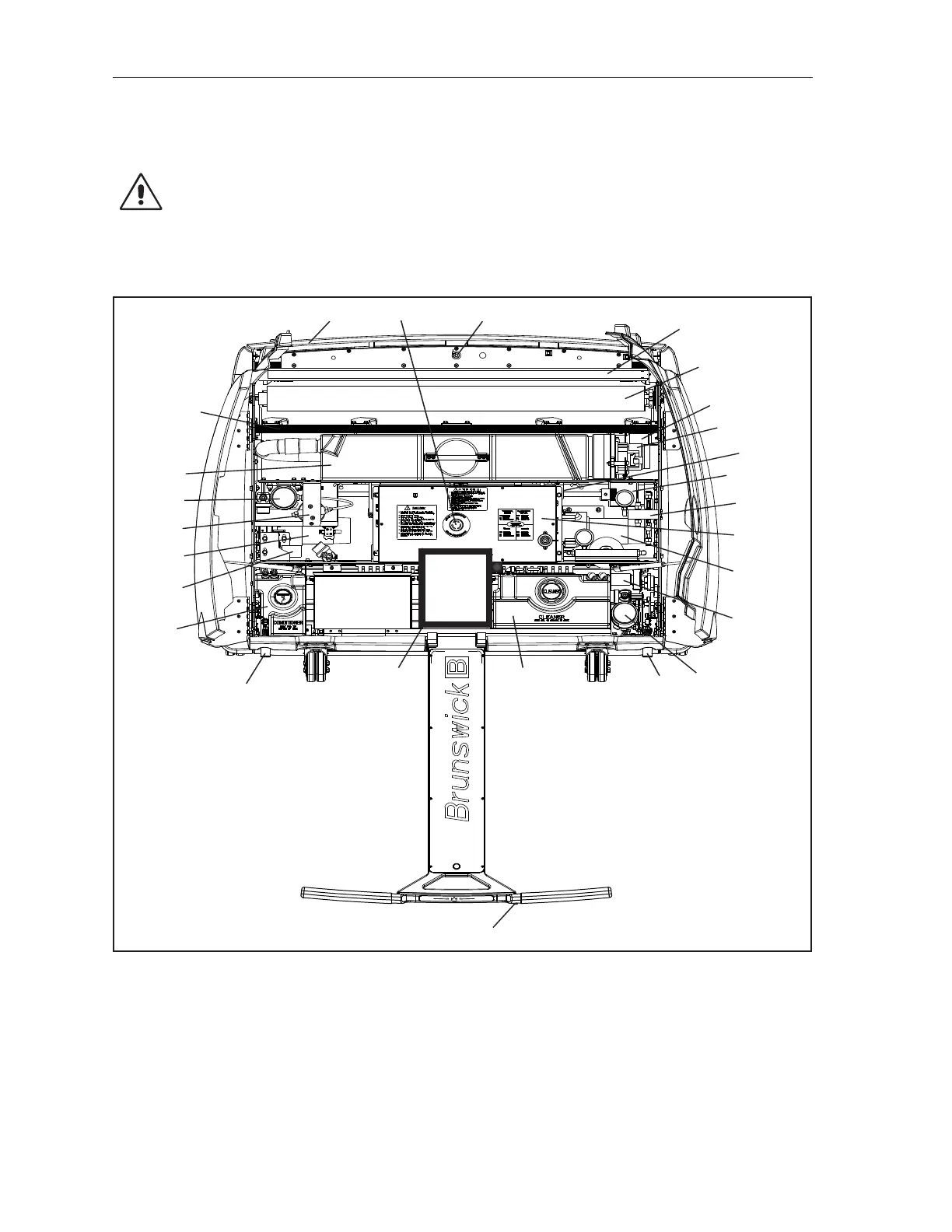

Figure2-4.OperatingPosition
(1) WASTE RECOVERY TANK
(2) BUFFER DRIVE MOTOR
(3) BUFFER LIFTING MOTOR
(4) LEFT CORD KILL ASSEMBLY
(5) RIGHT CORD KILL ASSEMBLY
(6) CONDITIONER PUMP
(7) CONDITIONER SUPPLY TANK
(8) CLEANER PUMP
(9) CONDITIONER SPIN-ON
(10) CLEANER SUPPLY TANK
(11) ELECTRONICS ENCLOSURE
(12) USER INTERFACE (TABLET)
(13) DISPERSION ROLLER MOTOR
(14) TRACTION DRIVE MOTOR
(15) TRACT ION WH EE L S
(16) VACUUM MOTOR ASSEMBLY
(17) DUSTER CLOTH MOTOR
(18) DUSTER CLOTH SUPPLY ROLL
(19) DUSTER CLOTH TAKE UP ROLL
(20) END-OF-LANE SENSOR
(21) FRONT HANDLE/BUMPER
(22) EMERGENCY SHUT OFF SWITCH
(23) START BUTTON
(24) CLEANER RAIL ASSEMBLY
(25) CLEANER MANIFOLD
(26) DISTANCE ENCODER (SECONDARY)
