Brunswick MAX - Daily Maintenance in Transport Position

94 MAX Operation & Service Manual94 Section 6: Maintenance & Service MAX Operation & Service Manual
Daily Maintenance in Transport Position:
(1)
(4)
(6)
(2)
(6)
(5)
(5)
(3)
(13)
(13)
(8)
(10)
(15)
(14)
(17)
(16)
(18)
(7)
(9)
(11)
(12)
(14)
(15)
(4)
(19)

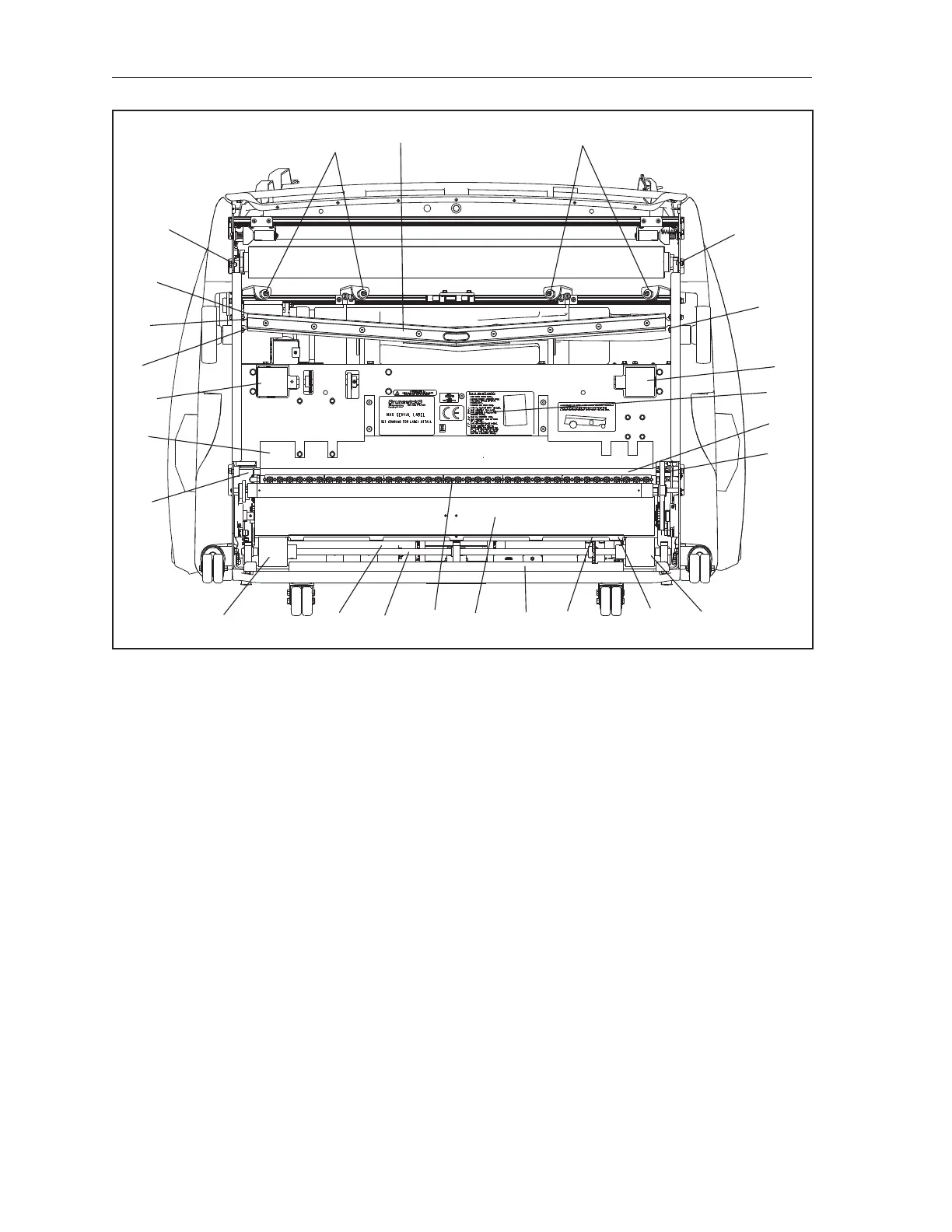

Figure6-2.TransportPosition-DailyMaintenance
(1) SQUEEGEE HEAD ASSEMBLY
(2) ABSORBENT WIPER
(3) SQUEEGEE BLADE
(4) CLEANER SPRAY NOZZLES
(5) SQUEEGEE ADJUSTMENT GUIDE
BLOCKS
(6) CONTACT ROLLER PIVOT ARMS
(7) BUFFER BRUSH
(8) FRAME DIVISION WALL
(9) REAR WALL
(10) ABSORBENT FOAM IN FRONT OF
INJECTORS
(11) FOAM STRIP
(12) BUFFER BRUSH SHIELD
(13) TRACTION DRIVE WHEELS
(14) RE A R WH EELS
(15) REAR GUIDE WHEELS
(16) REAR SHAFT AREA
(17) REAR FRAME AREA
(18) IN J ECTO R TIPS
(19) DAILY MAINTENANCE DECAL
To keep your MAX looking and performing in like new condition, be diligent with the daily
maintenance. Wipe any areas that may become dirty and address any maintenance issues, immediately.
1. Wipe cleaner spray nozzles.
2. Wipe the entire squeegee head assembly including the absorbent wiper and squeegee blade
with a dry terry cloth to remove dirt and moisture.
3. Wipe the squeegee adjustment guide blocks for the squeegee head assembly.
4. Wipe the contact roller pivot arms and side frames.
5. Wipe buffer brush area including frame division wall, rear wall, and absorbent foam in
front of injectors.
