AC/DC POWER SUPPLY
All versions of the MAX utilize an AC/DC power supply which is designed to be operated with an AC
power cable. It also provides a level of back up protection if the batteries fail to recharged after use or
hold a charge as they end their life cycle. When purchased, the MAX AC/DC Power Supply is installed
below the electrical enclosure before the lane machine is shipped.
Perform the following steps to switch to using the AC/DC Power Supply. Refer to Figure 3-3.
(1)
(2)
(3)
(4)

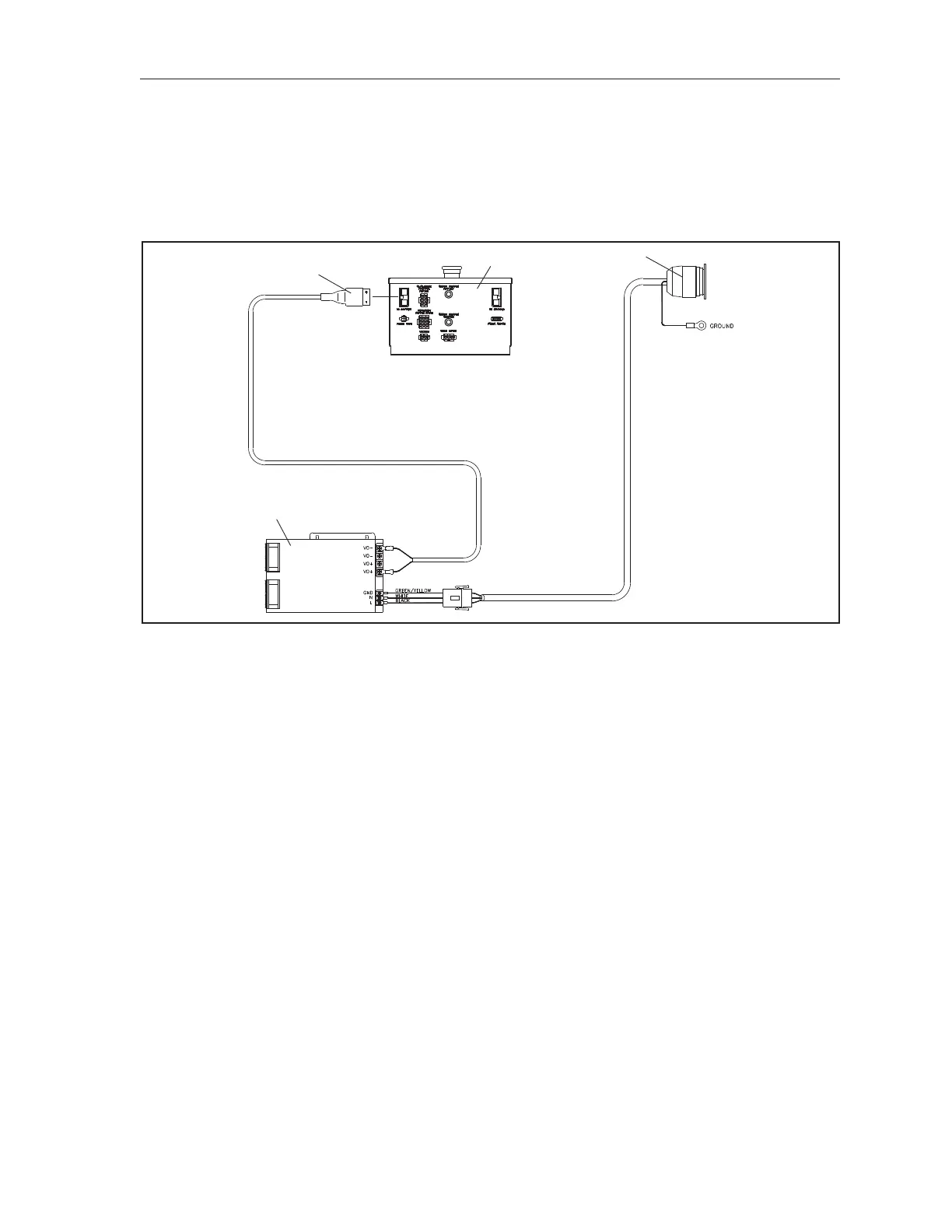

Figure3-3.AC/DCPowerSupply
(1) AC/DC POWER CABLE
(4) TWIST LOCK ON REAR COVER
(2) ELECTRONIC ENCLOSURE (3) AC/DC POWER SUPPLY
Internal Connections
1. Disconnect the Lithium Battery power cable from the electrical enclosure connection labeled
“To Battery”.
2. Locate the red AC/DC Power Supply, 24VDC power cable connector. (The cable is usually
coiled just under the left side of the electrical enclosure).
3. Connect the AC/DC Power Supply cable to the “To Battery” connector on the electrical
enclosure. (The opposite end of the AC/DC Power Supply is already connected to the Twist-
Lock connector on the rear cover.)
External Connections
4. Connect the Twist-Lock end of the supplied 125’ power cord into the matching connector in the
rear cover.
5. Place the power cord ring into the Cord Kill assembly.
6. Connect the other end of the 125’ cable into a grounded power supply with 100-240VAC, 50/60
Hz.
