Section 3: MAX Power System
This section is to inform the customer how to properly maintain the battery to achieve maximum life.
Follow the information closely to avoid any issues and to prevent damage to the battery.
BATTERY
The MAX contains a single, custom, 24 volt lithium battery equipped with an internal battery
management system to protect the cells and ensure proper balance between cells. The large capacity
battery is capable of running 60 lanes per charge, and is expected to achieve 1460 charge/discharge
cycles. This is equal to running 60 lanes per charge, once a day for 4 years or twice a day for 2 years.
The power cable of the lithium battery is connected to the electrical enclosure.
(1)
(3)

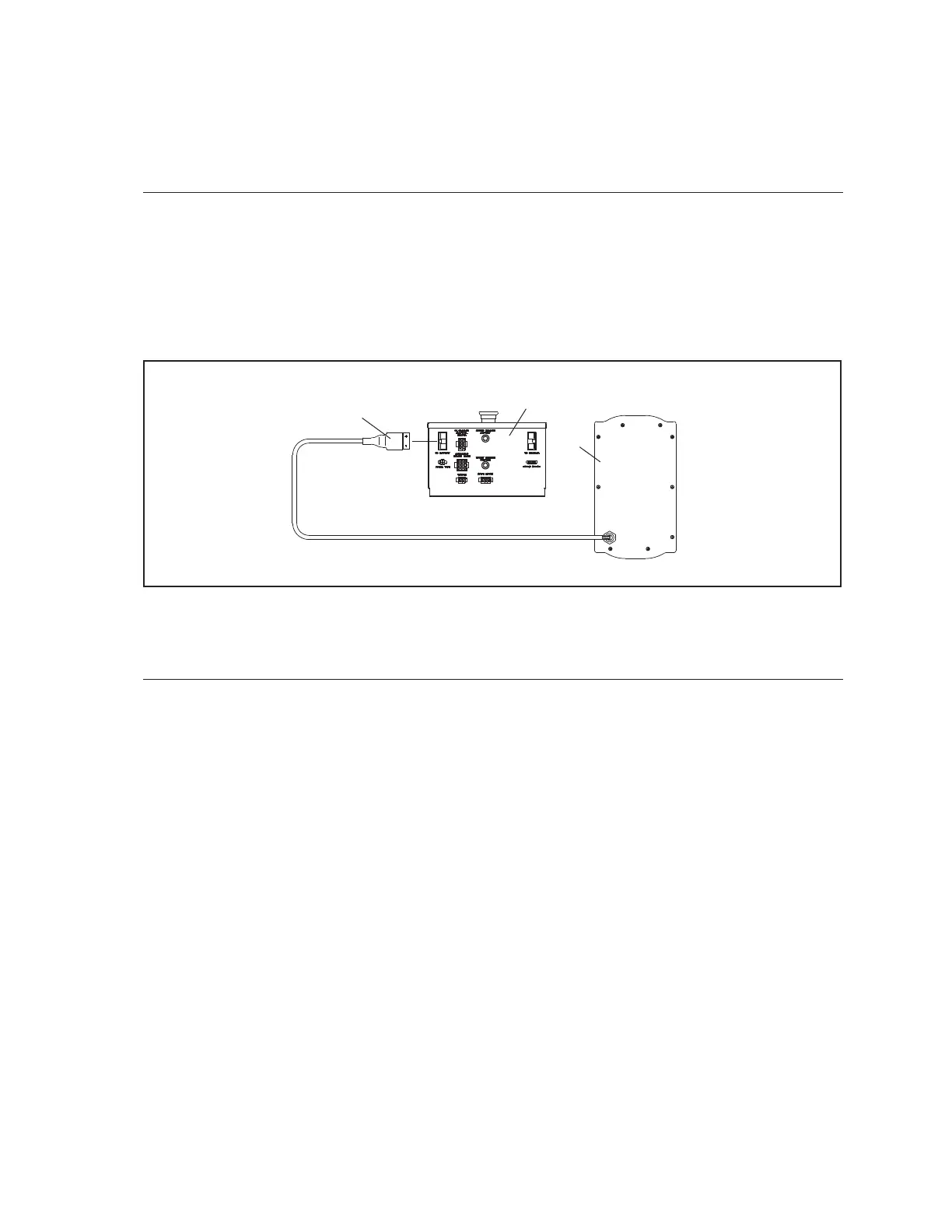

Figure3-2.LithiumBattery
(1) LITHIUM POWER CABLE
(2) ELECTRONIC ENCLOSURE (3) LITHIUM BATTERY
BATTERY CHARGER
The ProNautic 2420P charger is supplied with the proper 115/230VAC input power cord and 24VDC
output power cord already attached. The charger should also be preset for the type of battery included
in your MAX lane machine. The lithium battery should be preset to the Custom Prole with charging
and auto-maintain voltages set to 28.6 vdc. Call Brunswick Technical Service or your installing
distributor if your charger is not set to these proper settings for the type of battery in your MAX.
It is best to install the charger onto a wall within 8’ (2.438 m) of a power outlet that is not being used to
power other equipment. The AC power cord has an in-line On/Off power switch to allow you to turn
the power off BEFORE disconnecting or reconnecting the DC output cable from the LH charge port
of the MAX. The DC output cable should then be reconnected to the LH charge port of the MAX
BEFORE turning the AC power back on to the charger. This sequence assures that the charger always
starts with the proper mode necessary for the state of battery discharge.
