MAX Operation & Service Manual 89MAX Operation & Service Manual Section 5: Operating The Machine 89
Option 3 ( Battery Operation)
If DC battery power is being used, the remote stop transmitter (one of two supplied) should be pressed
to activate the remote stop receiver located on the bottom of the electronics enclosure. This will stop
the travel and functions of the machine. If the machine travel doesn’t stop immediately, continue to
press the transmitter button as the machine nears the end of the pattern, before it reaches the pinsetter.
The operators choices after this are:
• Press “OK” to continue operations.
• Press “ReturntotheFoulLine”.
• Press “StopRunning” to stop all functions. Refer to Figure5-1.
(1)
(2)
(3)
(4)
(6)
(5)

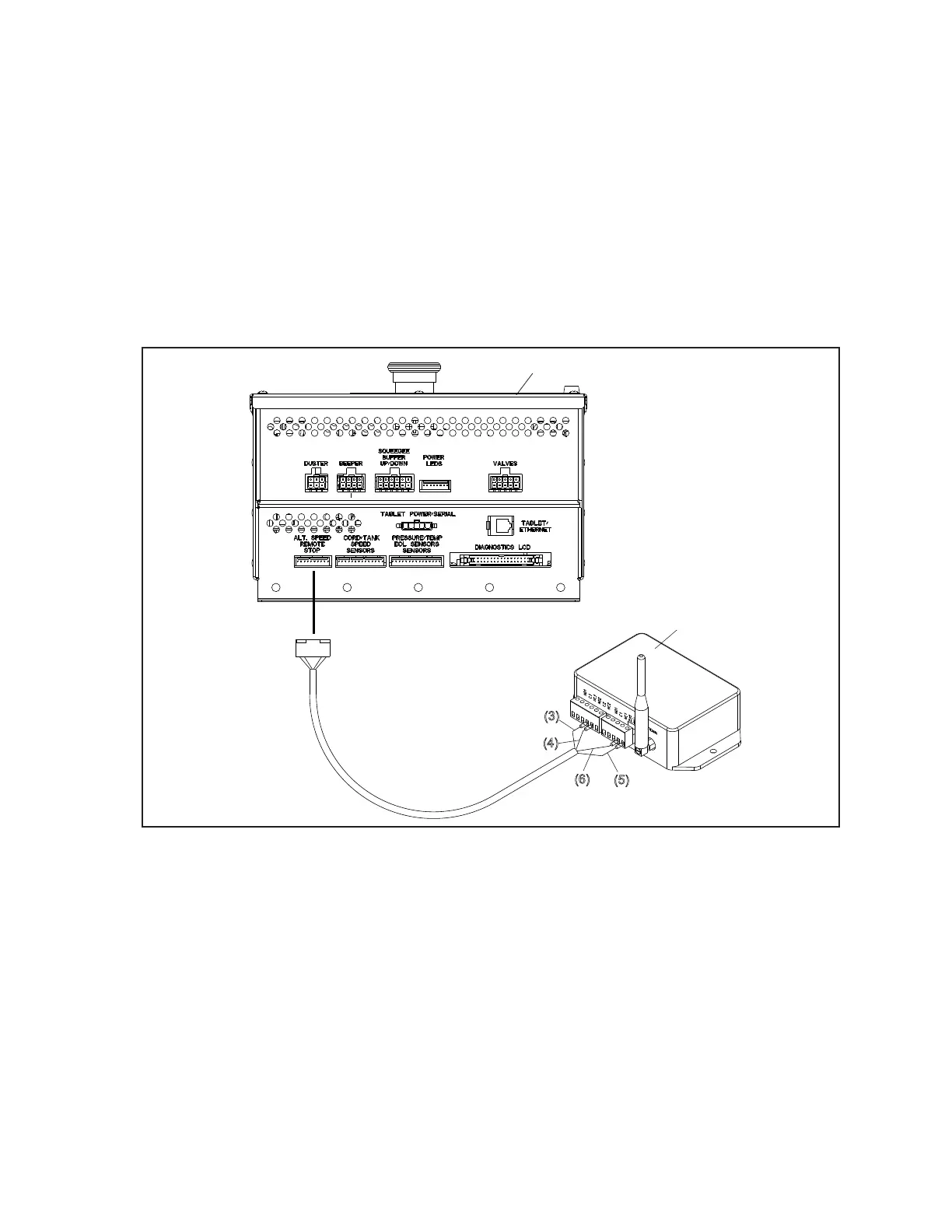

Figure5-1.RemoteStop
(1) ELECTRONIC ENCLOSURE
(2) REMOTE STOP RECEIVER
(3) GREEN (NO2)
(4) WHITE (C2)
(5) RED (12 VDC)
(6) BLACK (GROUND)
