SECTION 5 - OPENER SERVICE
page 5-16

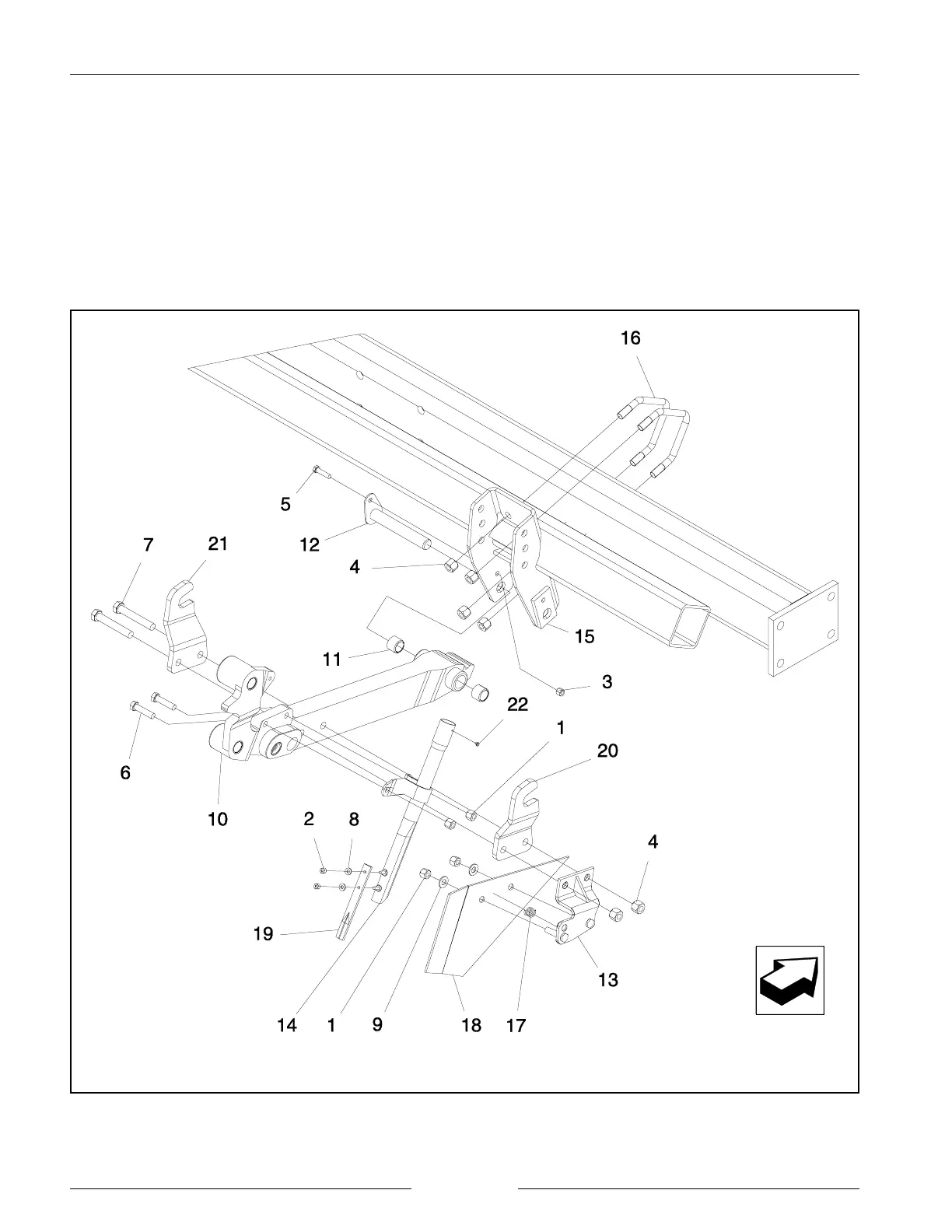

Seed Tube Components
202109C
REPAIR THE SEED TUBE
1. Ensure all components are free of foreign materials
such as dirt, straw or fertilizer.
2. Remove bolts (11) and lock nuts (18) holding seed
tube to main cast arm (3).
3. Remove seed tube (19) from main cast arm (3).
4. Inspect the seed tube for wear. Replace if necessary.
5. Inspect the seed retention tab (20). Replace if
necessary.
6. Install hardware (18) and torque to 7 N-m (5 lbf-ft).
To Next Page
