Case SDX30 - SDX30 Main Frame Assembly

SECTION 2 - MECHANICAL SERVICE
page 2-18
SDX30 Main Frame Components - 1
st
Serial Range
mainfrti

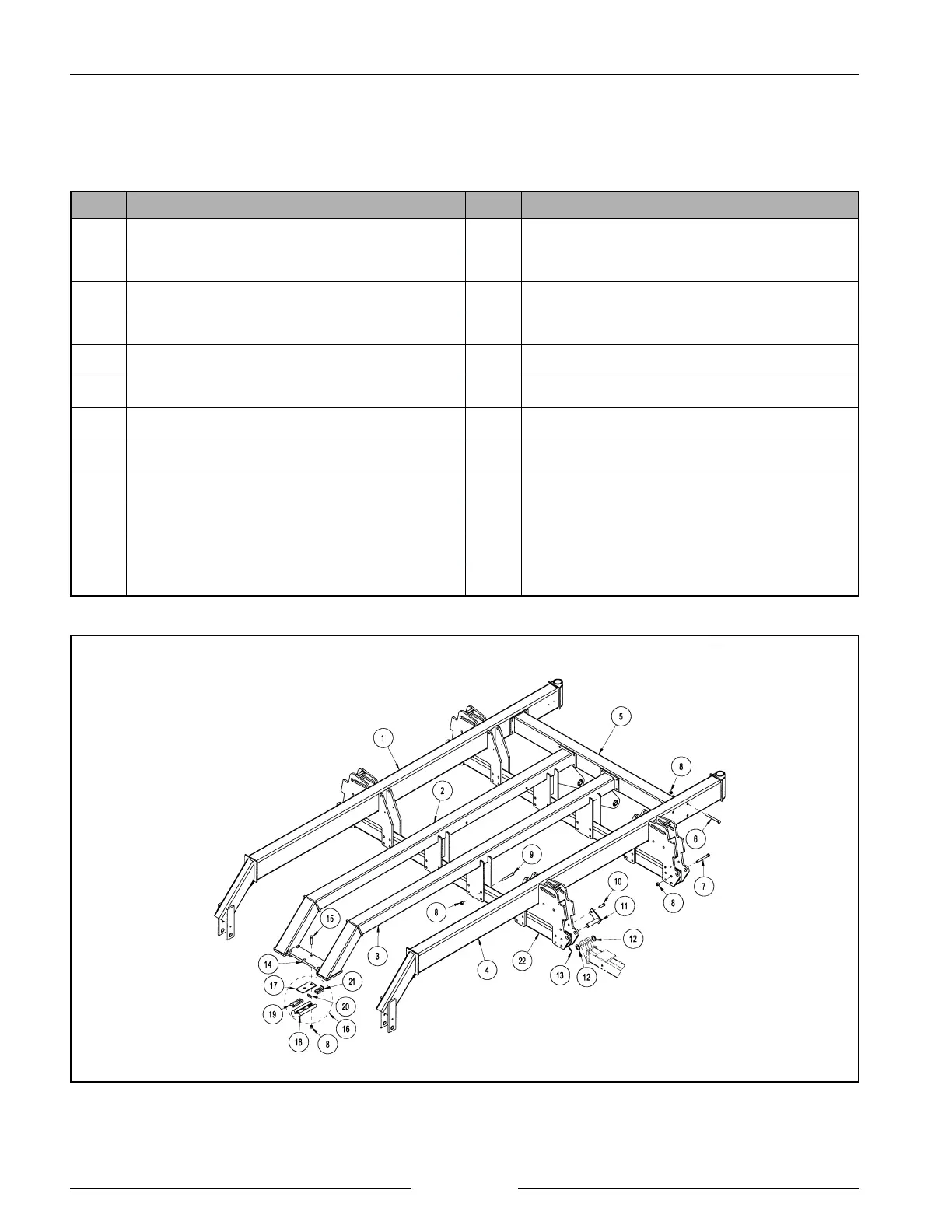

SDX30 MAIN FRAME ASSEMBLY
1
st
Serial Range - up to Serial Number CKB0028188
REF DESCRIPTION REF DESCRIPTION
1 SUPPORT TRUSS/W MAIN FRAME LH 12 AR WASHER 1.515 ID 2.5 14GA YZD
2 SUPPORT ASSY. TRUSS/W HITCH LH 13 PIN, ROLL .312 X 2 BLK HEAVY
3 SUPPORT ASSY. TRUSS/W HITCH RH 14 PLATE REAR HITCH
4 SUPPORT TRUSS/W MAIN FRAME RH 15 BOLT .75 X 3.5 UNC GR8 YZD
5 TUBE /W CROSS 16 HITCH ASSY TONGUE COMP PTD
TUBE, SUPPORT /W CROSS 17 PLATE TOP RED
6 BOLT .75 X 7.5 UNC GR8 YZD 18 HITCH ASSY BASE RED
7 BOLT .75 X 6.5 UNC GR8 YZD 19 BLOCK V RED
8 NUT, LOCK .75 UNC GR C YZD 20 CUSHION HITCH PPI-205H PLN
9 BOLT .75 X 6 UNC GR8 YZD 21 PLATE ANGLE BRACKET RED
10 BOLT .75 X 2.5 UNC GR5 YZD 22 TUBE .375 X 4 X 6 W/ HOLES PTD
11 PIN /W
SDX30 Main Frame Components - 1
st
Serial Range
