SECTION 7 - ENDMARKER SERVICE
page 7-10
Endmarker Mount
202357S
SDX40 ENDMARKER
ASSEMBLY

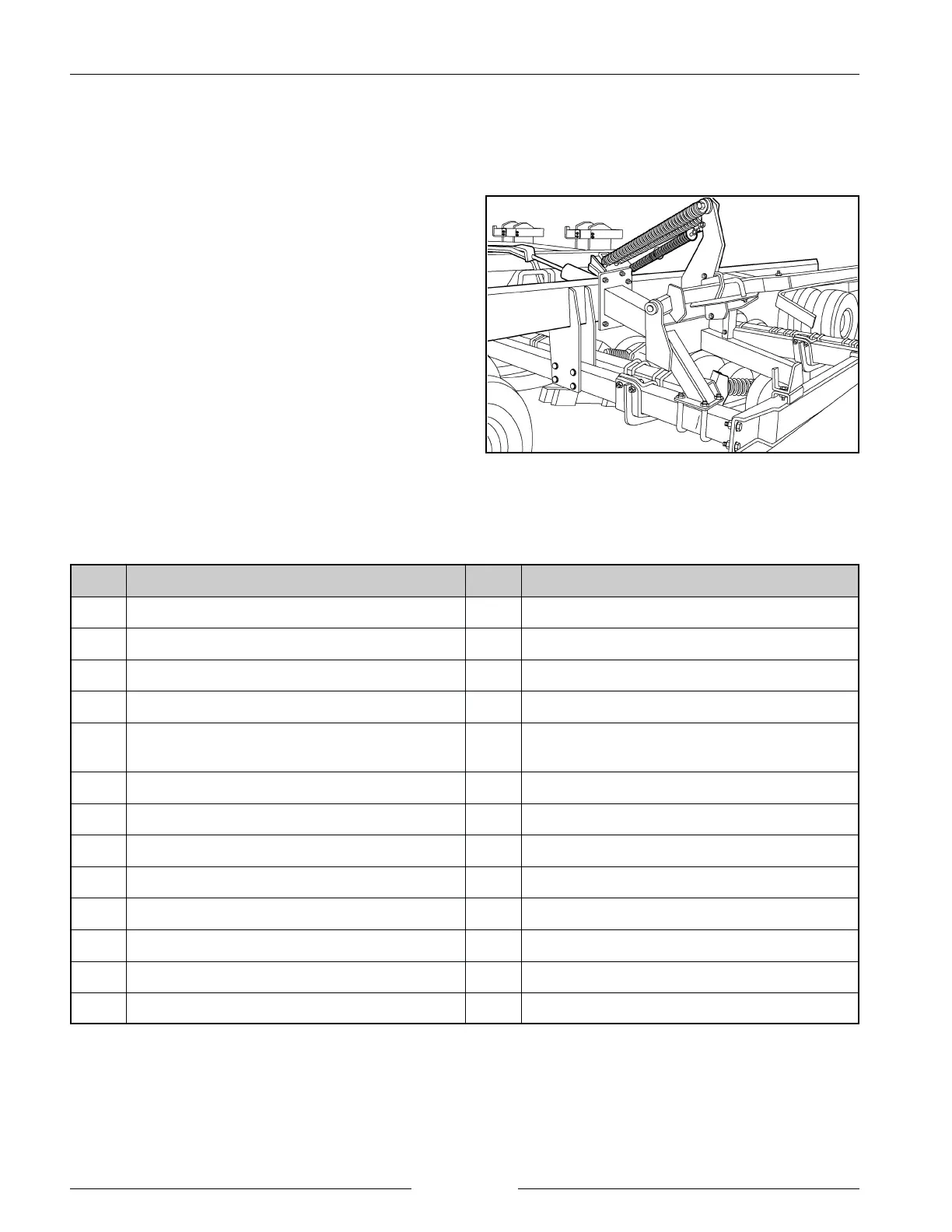

The endmarker is mounted to the SDX40 drill as shown.
REF DESCRIPTION REF DESCRIPTION
1 PIN, SPLIT (COTTER) HAIR .243 X 4 YZD 13 U-BOLT US .75 4.06W 8D
2 WASHER .938 ID 2.25 YZD 14 WASHER .813 ID YZD
3 SPRING (COIL) -C .313 WR 1.625 OD 12.5 15 BOLT .313 X 4 UNC GR5 YZD
4 BOLT .75 X 15 ALL THREAD YZD 16 BOLT .625 X 2.5 UNC GR5 YZD
5 ROD, CONNECTING RECEIVER CUSHION
SPRING PTD
17 BOLT .75 X 2 UNC GR8 YZD
6 ROD ASSY. CUSHION SPRING MT PTD 18 BOLT .75 X 4 UNC GR5 YZD
7 SPRING, TENSION .406 WIRE 19 BOLT .75 X 6 UNC GR5 YZD
8 MOUNTING ENDMARKER RH (Shown) 20 NUT, LOCK .75UNC GR B YZD 1-WAY
8 MOUNTING ENDMARKER LH (Not Shown) 21 NUT, LOCK .75 UNC GR C YZD
9 BRACKET ADJUSTER/W SPRING ASSIST 22 NUT, LOCK .313 UNC GR B YZD
10 LEVER ASSY. LH 23 NUT, LOCK .625 UNC GR B YZD
11 LEVER ASSY. RH 24 SPACER TUBE
12 U-BOLT US .75 10.16W 8D 25 DECAL 'ENDMARKER HAZARD’
Endmarker Mount Assembly
