SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-14

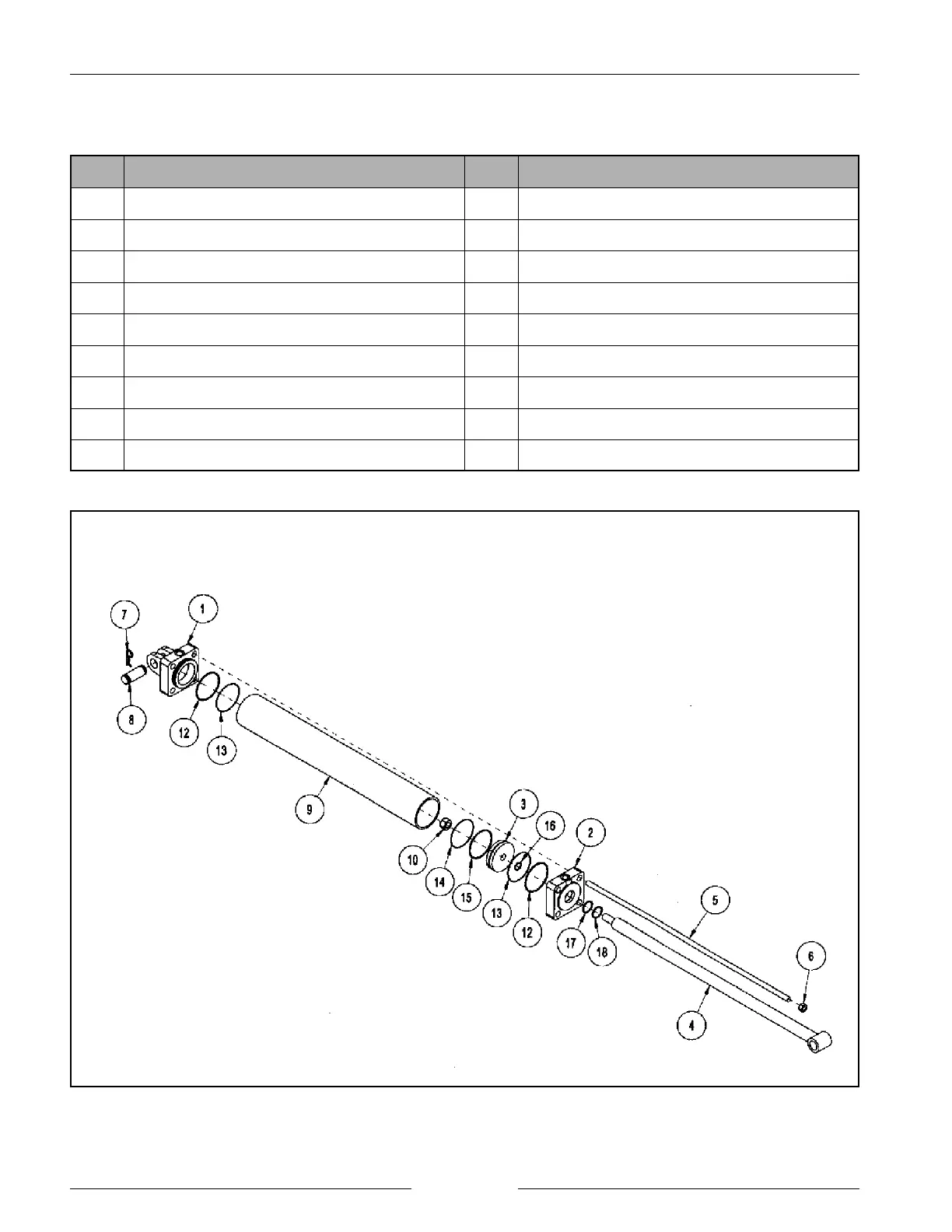

SDX30 Wing Lift Hydraulic Cylinder Components
00000010
SDX30 WING LIFT CYLINDER
REF DESCRIPTION REF DESCRIPTION
CYLINDER ASSY. HYD 4.00 X 30.0 IOWA 9 CASE - cylinder
1 HEAD 10 NUT, LOCK 7/8-14UNF P/T GR B
2 HEAD 11 KIT, GASKET CYL 4X30 IOWA IND
3 PISTON 4.0 ID 12 BACKUP
4 ROD ASSY. CYL 13 O-RING
5 ROD - tie 14 SEAL - piston
6 NUT .625 UNC GR5 YZD 15 O-RING
7 RETAINER COTTER PIN 16 O-RING
8 PIN KEEPER 17 U-CUP
Hydraulic Cylinder Parts for SDX30 Wing Lift Cylinder
