Case SDX30 - Rear Tow Primary Manifold Stands

SECTION 6 - AIR SYSTEM SERVICE
page 6-13

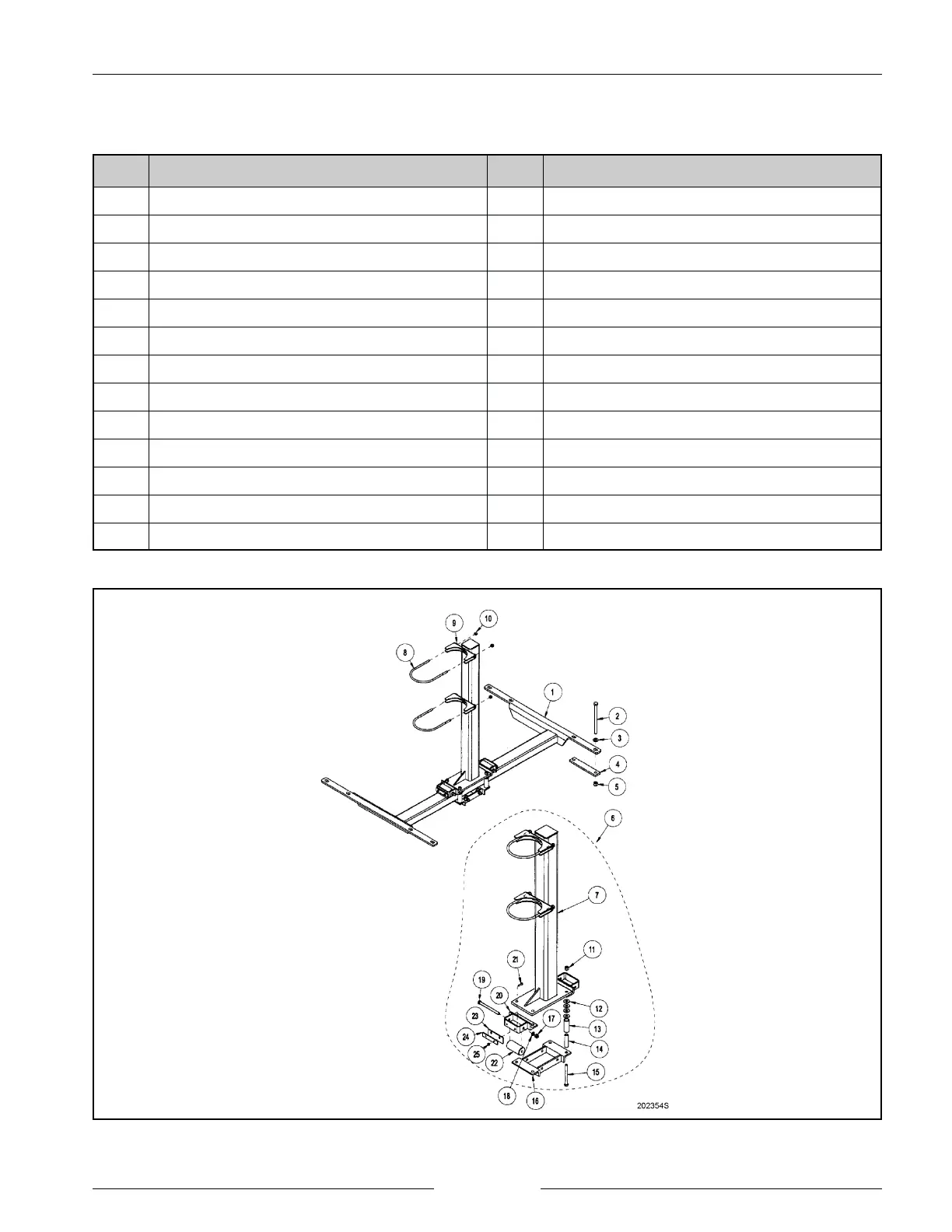

Rear Tow Primary Manifold Stand Parts
REAR TOW PRIMARY MANIFOLD STANDS
REF DESCRIPTION REF DESCRIPTION
1 MOUNTING 14 SPACER
2 BOLT .5 X 7.5 UNC GR5 YZD 15 BOLT .375 X 4 UNC GR5 YZD
3 WASHER .531 X 1.062 X .095 16 MOUNTING LOWER
4 PLATE, LARGE BACKUP 17 NUT .375 UNC GR5 YZD
5 NUT, LOCK .5 UNC GR A YZD NYL LK 18 WASHER, LOCK .375 YZD
6 STAND MANIFOLD 19 BOLT .375 X 4.5 UNC GR5 YZD
7 STAND MANIFOLD 20 MOUNTING UPPER
8 BOLT "U" UR .375 5.188W 3.657D 21 SCREW 10-24 X 3/4 HEX HD ZND
9 WASHER, LOCK .375 YZD 22 ROLLER
10 NUT .375 UNC GR5 YZD 23 WIPER
11 NUT, LOCK .375 UNC YZD NYL INS 24 BAR BACK
12 WASHER .438 ID 1.0 .083 YZD 25 NUT #10-24 YZD
13 ROLLER
Rear Tow Primary Manifold Stand Parts
