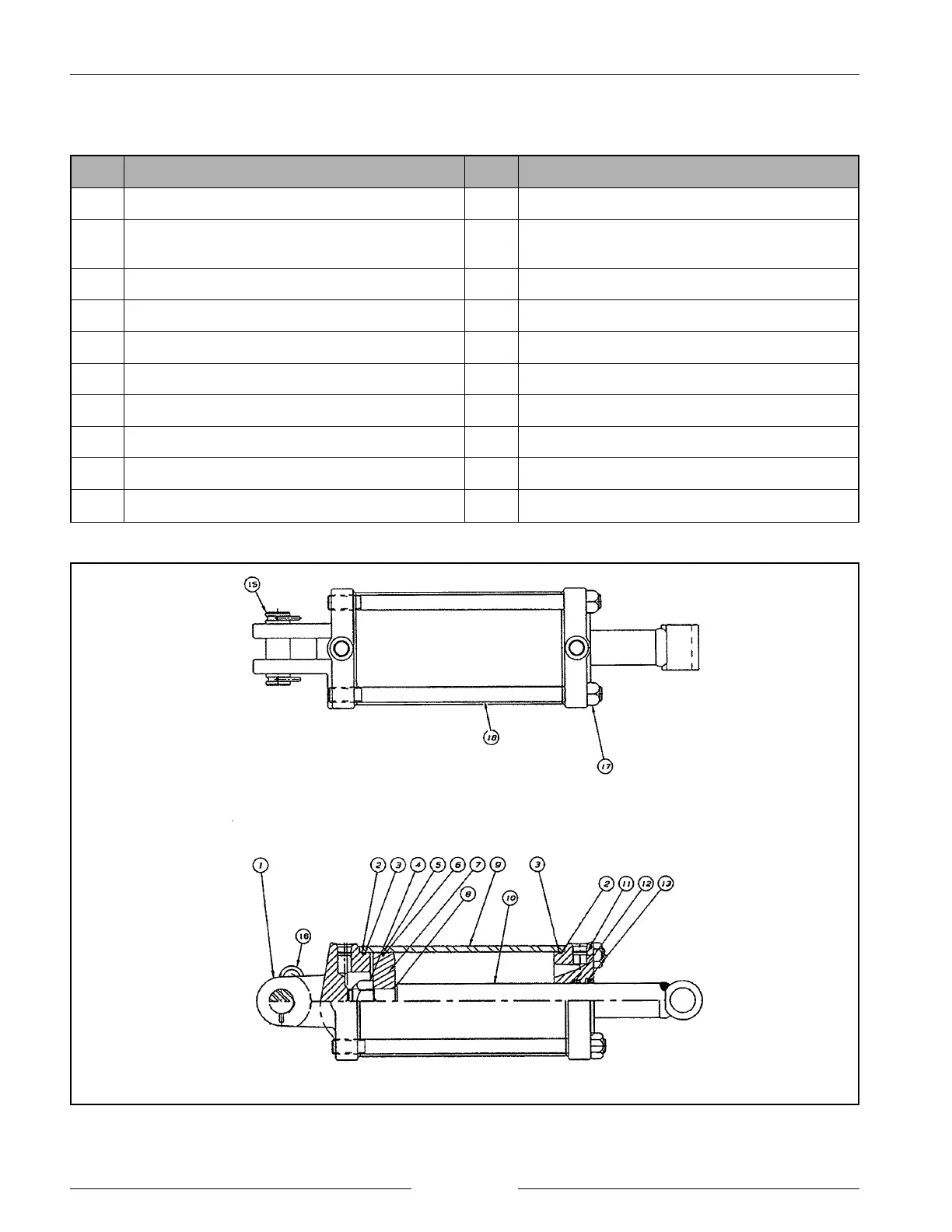

SDX40 Wing Lift Hydraulic Cylinder Components
RH00A106
SDX40 WING LIFT CYLINDER
REF DESCRIPTION REF DESCRIPTION
CYLINDER ASSY. HYD 5.00 X 30 IOWA 9 TUBE - CYLINDER
SEAL KIT (INCLUDES REF #2, 3, 5, 6, 8, 12
AND 13)
10 ROD ASSY. CYL
1 HEAD CYLINDER 11 HEAD CYLINDER, FRONT
2 BACKUP 12 U-CUP
3 O-RING 13 WIPER
4 LOCKNUT 15 PIN KEEPER
5 SEAL - PISTON 16 RETAINER COTTER PIN
6 O-RING 17 NUT .75 UNC GR5 YZD
7 PISTON CYLINDER 18 ROD - TIE
8 O-RING
SDX40 Wing Lift Hydraulic Cylinder Components
